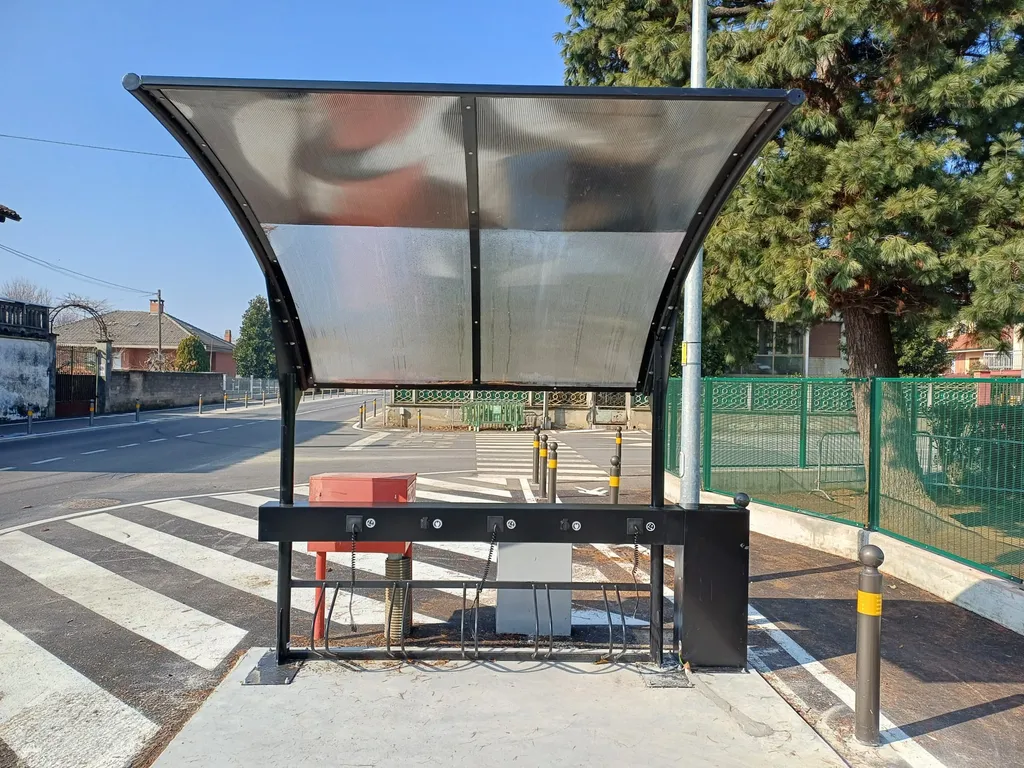

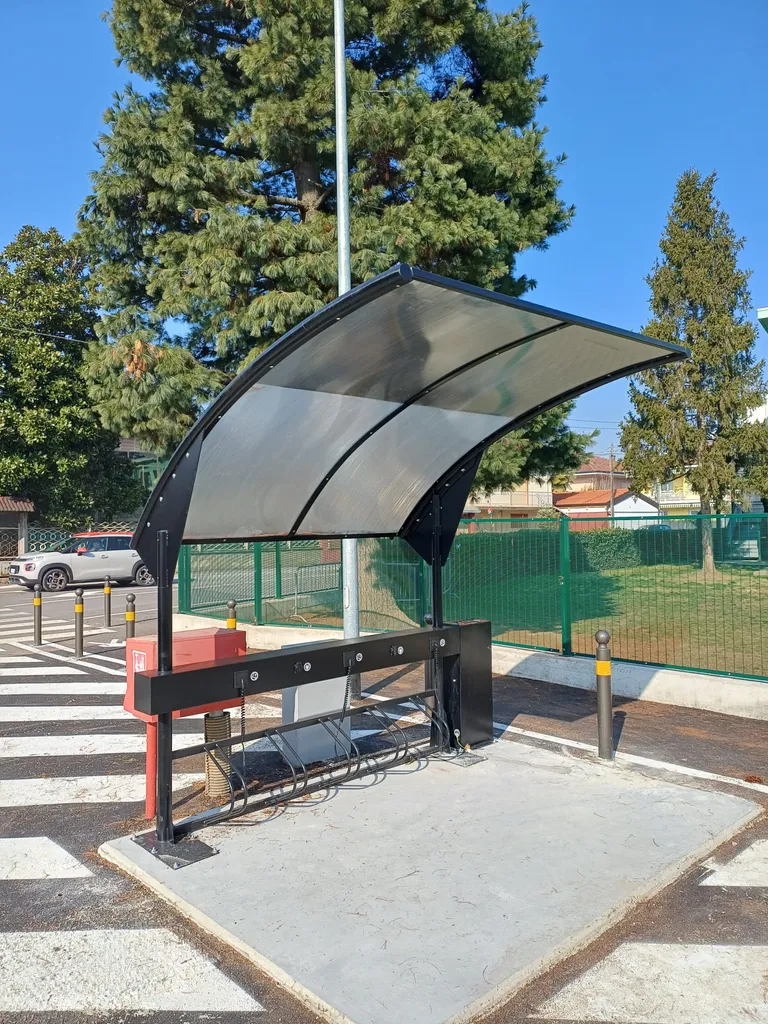

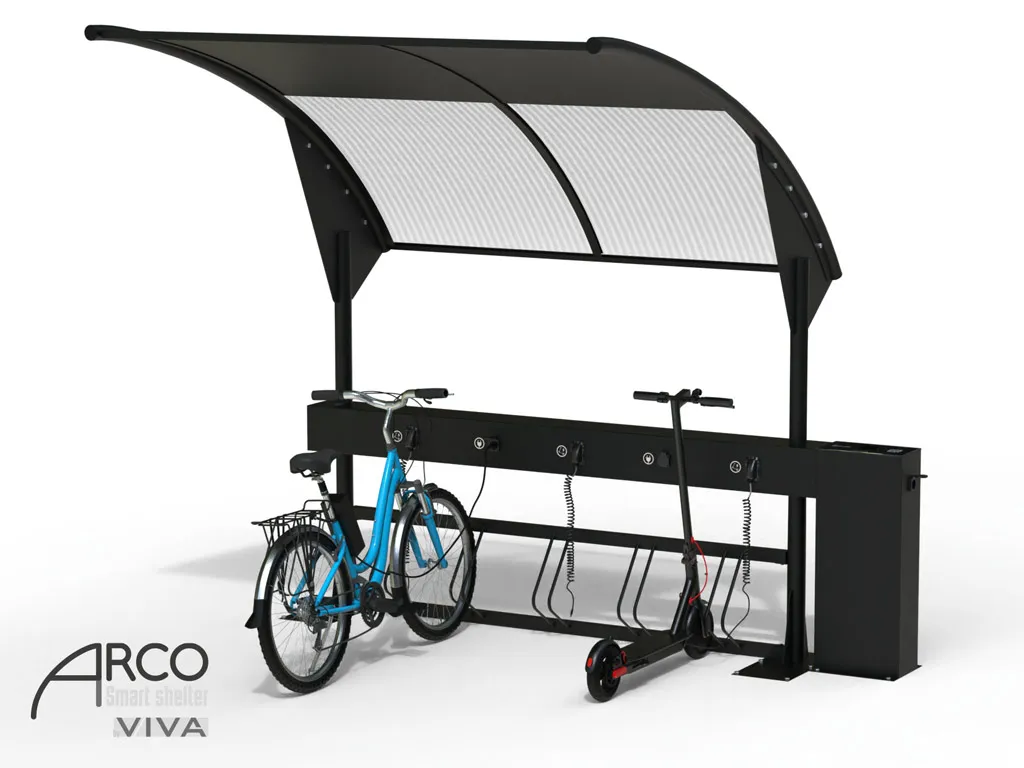

Modern Arco SMART shelter for five e-bikes and scooters, equipped with a fully solar-powered charging station, twin-wall polycarbonate, and PMMA roof.
Structure composed of:
Straight and arch-bent steel tubes (diameter 76 and 60 mm).
The roof is made of a UV-protected, ribbed twin-wall polycarbonate panel, reinforced with a steel frame underneath;
A transparent PMMA sheet on top to embed and protect the solar panels; at the back of the roof, there is a channel for water drainage.
The front section is designed to accommodate a five-space electric bike or scooter rack module made of steel.
In the center of the shelter, the PLUG module extends horizontally, consisting of a 200 x 200 mm tubular section, containing two protected 220V Schuko sockets and three 42/48V stations for charging electric bikes and scooters with various connectors.
Each PLUG module includes two Schuko sockets and three 42/48V charging modules for e-bikes or scooters.
A side box contains the electronic equipment.
Technical Specifications:
No. 2 Schuko sockets with IP67 protection.
No. 3 multifunctional 42/48V charging stations with three types of connectors.
No. 5 bike or scooter racks.
Nominal power: 440W.
Nominal voltage: 230V.
Nominal frequency: 50Hz.
Protection type: IP67.
Storage capacity: 1.9 kWh.
Circuit Breaker:
No. 1 RCBO (Residual Current Circuit Breaker with Overcurrent Protection) Id 0.003 A.
Trip delay time: instantaneous.
Nominal current: 25/22 A.
Compliant with standard: CEI EN 61008.
Indicator light: voltage presence.
Version Features:
Equipped with 2 USB ports mounted on the right side;
Cool white LED backlighting system;
System protection rating IP65.
Fixing and Maintenance:
The feet are designed for anchoring with M10 steel bolts.
The smart module is removable and can be sent for maintenance without needing to dismantle the entire structure.
The surfaces are duly protected by a 5P cycle and powder-coated.
Unique Technical Features of this Version:
Photovoltaic module: Monocrystalline 440W power.
Batteries: AGM type, 160Ah capacity.
USB charging: 2 ports 5W and 2.2W.
E-bike and scooter charging: 3 x 80W.
220V Schuko sockets.
