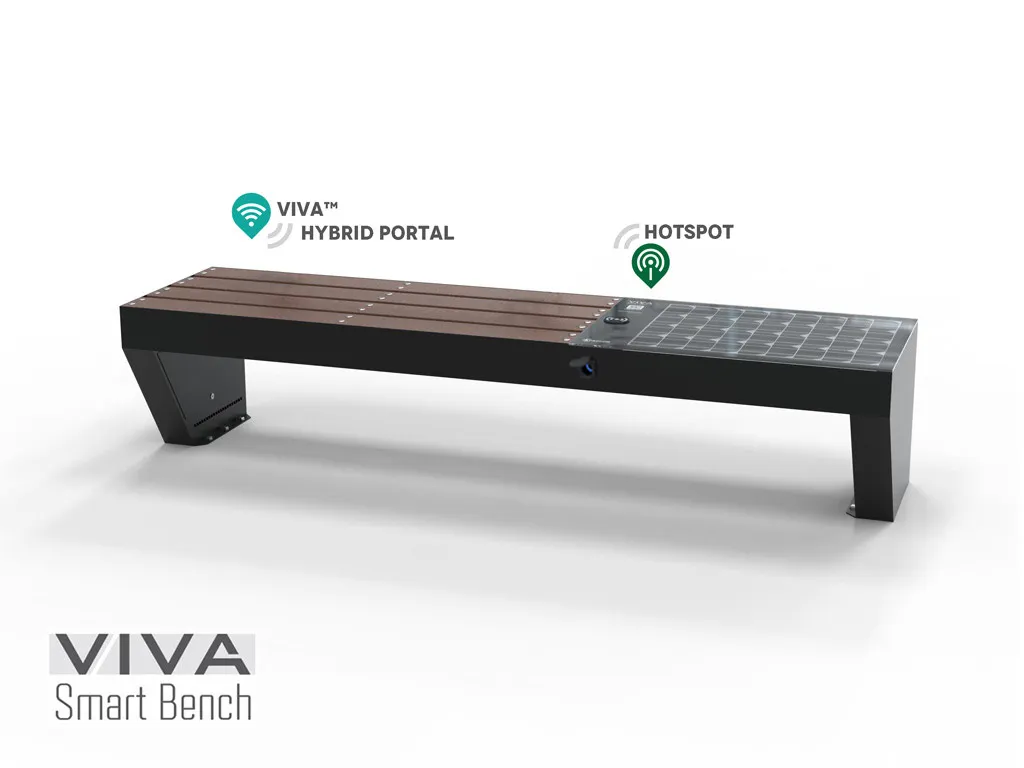

Smart bench for urban furniture, VIVA SMART model, backless.
General technical specifications:
2 trapezoidal side supports;
Seat made of STRONGPLAST (recycled plastic) profiles, 120 x 40 mm section, internally milled and reinforced with a 15 x 15 mm steel profile. The profiles are bolted onto the seat supports;
SMART charging module equipped with MPPT PERC technology, with a photovoltaic panel and batteries embedded in the bench structure;
Neutral white LED lighting.
Version features:
Equipped with 2 USB ports for charging devices up to 2A and a 20W QI wireless charger built into the structure;
Neutral white LED backlighting system;
Includes local management and control system via WIFI connection or in the CLOUD via VIVAPORTAL with 12 months of support;
Sensors for temperature, humidity, device charging and discharging, and weather sensors with an automatic standby system in case of prolonged lack of solar radiation;
Automatic error prediction and self-management system with automatic reports;
Internet connection via 4G LTE network (data card not provided), LAN, or WIFI REPEATER;Customization of the HOTSPOT access point with social media integration and the option for paid advertising placements;Integration with a GDPR-compliant HOTSPOT PORTAL for customizing user privileges and pages, and system management (at cost);Additional power supply via a high-efficiency Tempering charger managed by an energy-saving system modulated according to the solar panel's efficiency.
Fixing and maintenance:
The trapezoidal feet are designed for anchoring with M10 steel bolts.
The smart module is removable and can be sent for maintenance without needing to remove the entire bench.
The surfaces are duly protected by a 5P cycle and are powder-coated.
Unique technical features of this version:
Total Control: WIFI access to an interface for real-time data visualization and control.
InfoSensor: Environmental information from sensors such as temperature and humidity, device charge and discharge status, energy production, current and historical consumption, and self-check with error prediction and reports.
VivaDirect: Direct access to information and control via WIFI when near the station.
VivaPortal: Cloud-based remote management and control portal.
Photovoltaic module: Monocrystalline 60W power.
Batteries: AGM type / Capacity: up to 0.72 kWh.
USB charging: 2 ports, 5W and 2.2W.
Wireless charging: 10W power / Over 80% efficiency.
Cooling system: Airflow: 170 m³/h, Temperature trigger: 38°C.
LED light: Backlit panel and dimmable neutral white LED light.
GENERAL INFORMATION ON STRONGPLAST MATERIAL
The material colors, including those shown in photos and technical documentation, are purely indicative and depend on the availability of STRONGPLAST profile colors at the time of production.
All steel parts used in STRONGPLAST structures are adequately protected.
All parts are joined by stainless steel screws embedded in the structure.
All STRONGPLAST products, including play equipment and furniture, have no protruding parts, either in plastic or any other material.
STRONGPLAST is maintenance-free, vandal-proof, does not yellow, is weather-resistant, and fire-retardant.
All playground products are certified according to the UNI EN 1176 standard.
Products made of STRONGPLAST are CAM certified (Minimum Environmental Criteria).
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
