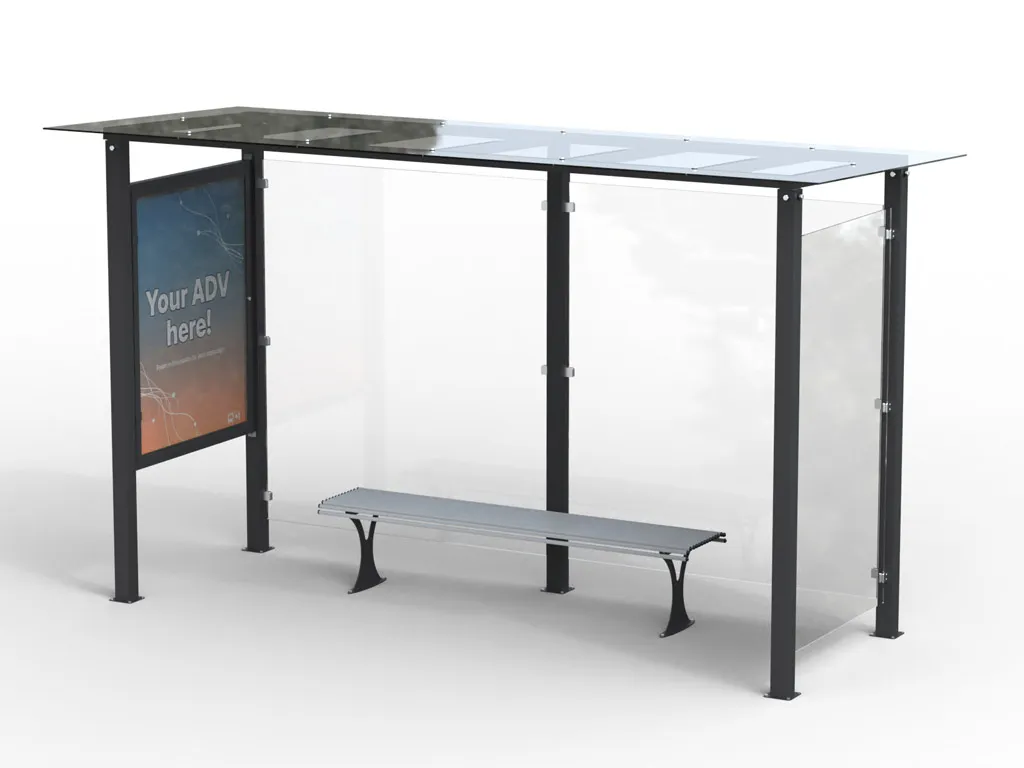

4m bus shelter with a single-sheet PMMA roof and integrated bench. Bench length: 2m.
General technical features:
Structure made from components painted using a 5P cycle;
Module composed of straight steel upright tubes (80 x 80 mm section), bolted to the roof structure;
Base plates at the bottom of the tubes for ground fixing with M10 anchor bolts;
Mesh-like roof structure made of tubular steel, supporting a polycarbonate sheet;
Rear and side panels are attached to the structure with special steel clamps;
Seat constructed with 6mm thick sheet metal side supports and a seating surface made of 16 x 20mm diameter round bars.
Overall dimensions:
1700 x 4000 x 2300 h mm
Components
311009 SHARK Backless Steel Bench, 2m Length
