2m Smart Bus Shelter with Photovoltaic Energy System and Neutral White LED Lighting

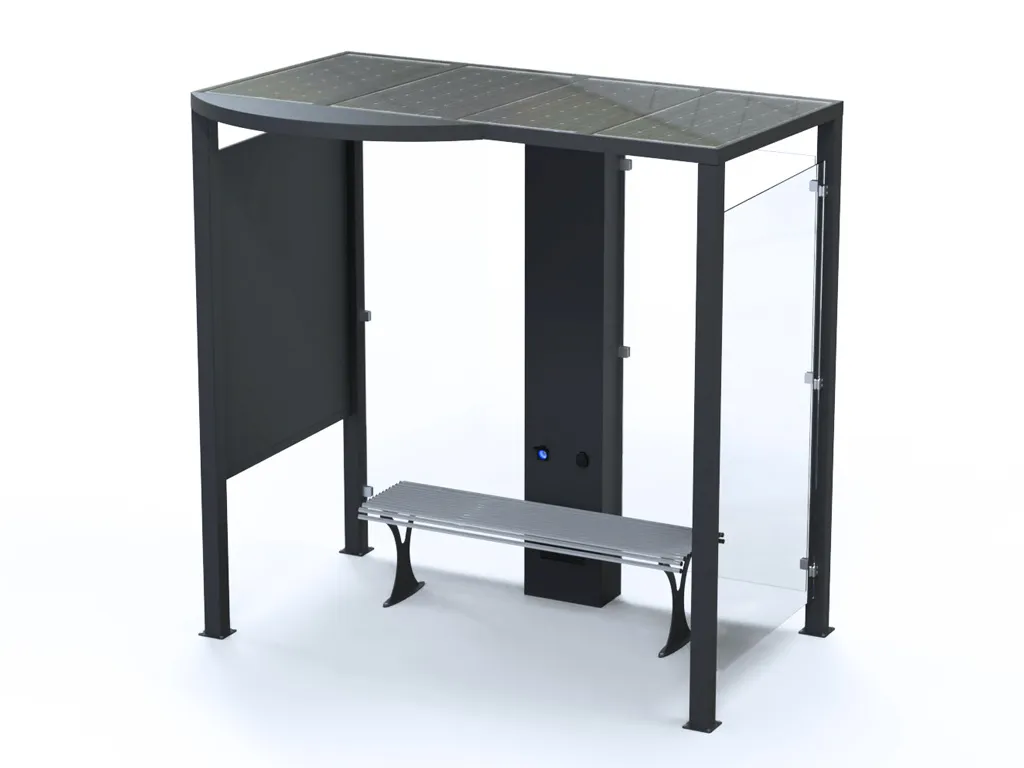

2m Smart bus shelter with a photovoltaic panel roof and bench.

General Technical Specifications:
Structure painted using a 5P cycle process;
Module composed of straight steel uprights (80 x 80 mm section), bolted to the roof structure;
A fixing plate with M10 anchor bolts is present at the base of the uprights;
Mesh-like roof structure made of tubular steel, which supports the photovoltaic panels;
The roof is designed to hold the photovoltaic panels that power the system;
Photovoltaic panels are embedded in the roof structure; batteries and the electronic management system are located at the base;
Equipped with a neutral white LED lighting system;
A gutter for water drainage is located at the back of the roof;
Central upright with four USB ports for device charging;
Rear and side infill panels are fixed to the structure with special steel clamps;
Seat made with 6mm thick sheet metal side supports and a seating surface of 16 round bars (20mm diameter).

Unique Features of this Version:
Equipped with 4 USB ports for charging devices up to 2A;
Neutral white LED backlighting system.

Unique Technical Specifications:
Photovoltaic Module: Monocrystalline 400W power.
Batteries: AGM type / Capacity up to 1.8 kWh.
USB Charging: 4 ports, 5W and 2.2W.
LED Light: Neutral white.
