Smart arch shelter with bench
Smart arch shelter with bench
Smart arch shelter with bench - dimensions
Smart arch shelter with bench - dimensions
arco smart carga mobile
arco smart marquesina solar
arco smart con panhina ricarica usb wireless

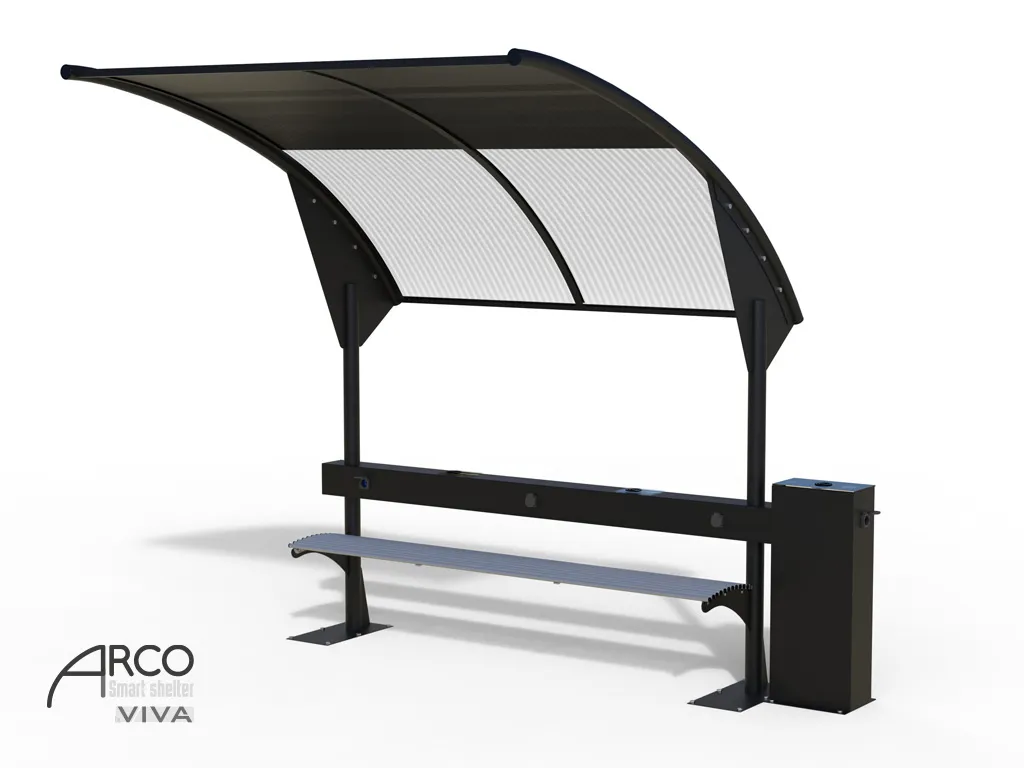

Arco Smart Solar-Powered Bus Shelter with USB & Wireless Charging

code 360307

Category: Shelters, Urban mobility, Smart Shelters, Smart city products

Modern Arco SMART bus shelter with bench. Equipped with a solar-powered charging station for electronic devices, a cellular polycarbonate and PMMA roof.Structure consists of:
Straight and arch-bent steel tubes (76 and 60 mm diameter).
Bench supports welded to the structure and seating made of painted steel rods, forming a single 2.2-meter-long seating block.
The roof is made from a double-protected, ribbed cellular polycarbonate panel, which is UV-resistant and reinforced by a steel frame on the lower side;
a transparent PMMA sheet on the upper side embeds and protects the solar panels; at the back of the roof, there is a channel for water drainage.In the center of the shelter, a PLUG module made from a 150 x 150 section tube is equipped with USB ports for charging devices up to 2A and a wireless charger built into the structure.The central module also serves as a backrest.Version features:
Cool white LED backlighting system.IP65 system protection rating.Fixing and maintenance:
The uprights are designed for anchoring with M10 steel bolts.The surfaces are properly protected by a 5P treatment cycle and are powder-coated. Unique technical features of this version:
Photovoltaic module: Monocrystalline 200W power.
Batteries: AGM type, 80W capacity.
USB charging: 6 ports 5W and 2.2W.
Wireless charging: 2 units, 20W power / Efficiency up to 80%.



GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.

GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.

SCREWS AND BOLTS

All screws, bolts, and other fastening accessories are generally supplied in stainless steel.


DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
