Artistic pole with ornamental flower and lighting equipment E27 enabling
Code 100044
Category: Cast iron and steel poles, Light pole arrangements
Description
CE certificated artistic pole compliant with standard UNI EN 40-5 composed as follow :
Stel Pole:
Maked in accordin UNI EN 10219-1 steel, hot-galvanized to UNI EN ISO 1461 standards :
The post is in steel made with retractable tube in square cross-section, hotgalvanized, made up of tree tubes 89x1100mm + 76x700mm + 60x800mm .
This special retractable lighting pole is designed to cheap the transport cost.
The post must project perfectly vertically, and is provided with fixing type :
Option 1 )Steel plate and bolts for pole installation.
Option 2 )mm. 500 for fountation.
It is equipped for installation of a class II insulation terminal board with ( option 2 ) or without fuse ( option 1) , and a slot (A – height 150 x 40 mm) above ground level ; hatch and terminal box included.

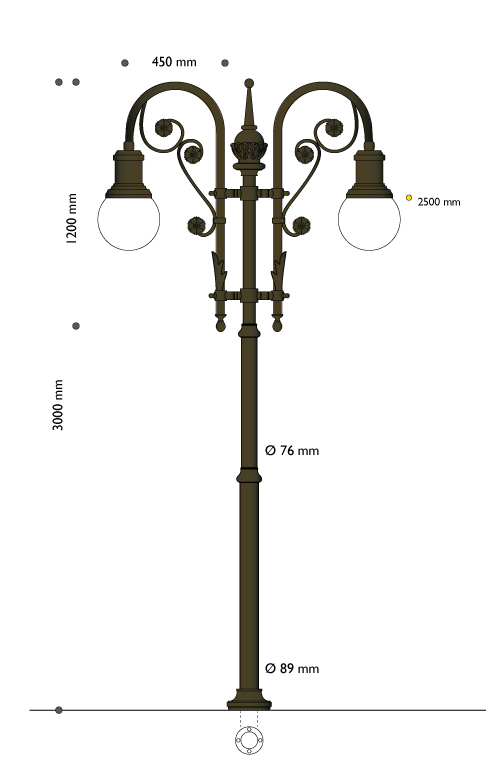

Height of pole : 3 mt.
The top of the post can be prepared for light fixture installation .
Pole top :
Composed from Artistic bracket with ornamental flower and lighting equipment E27 enabling
Pole top or wall mounted with curved curl and flower decorated bracket consisting of :
- Tulip ornaments in aluminum.
- Galvanized or cast iron tube, round-shaped curved and decorated with characteristic tulip elements as per drawing;
- At the base of the tube is a cast iron ornament in the shape of a pine cone;
- At the top is an adorned connection for ¾ GAS threaded tube lantern.
The pole top in held at the pole by ornamental hooks in aluminum or cast iron and is decorated in the center with acanthus designs and a big open flower.
The pole top is predisposed for attachment on a 70, 60, 89 mm diameter pole depending on the costumer's request or on the type of pole on which the pastoral is to be installed.
Pole top measures at the base:
Width 1000 mm, lenght 1200 mm.
Made with steel tube of 45 mm diameter, thickness 3 mm.
Other measures and dimensions on costumer's request.
Lighting fixture :
For use with LED E27 Bulb In compliance with
CEI/EN 60598-1 :2008 Lighting source
CEI/EN 60598-2-3 Street lighting source
Connection
- Upper frame made in aluminum, with threaded coupling G 3/4" for fixing.
- Thread coupling G 3/4"
- Suitable for suspended installation
Materials
- Aluminun.
- Stainless steel fasteners.
- Policarbonate globe
Structure - Main components
- Tilting upper square frame made in aluminum, for access to the auxiliary and optical compartment.
- All external screws used are in A2 stainless steel.
Operations and maintenance
- To access the optical and wiring compartment, unscrew a screw on upper frame and rotate it the policarbonate component.
- Periodic maintenance for the external cleaning of the structure and the screens from dust and smog (the operations must be performed with the line power off and with luminaire cold). Painting
Standard color is antique bronze or any other RAL colore requested.
Surface Protection See details on the protection of materials. .
The pole is equipped with an M12 screw, steel inox AISI 304 (grounding).
Assemblage See installation specifications.
