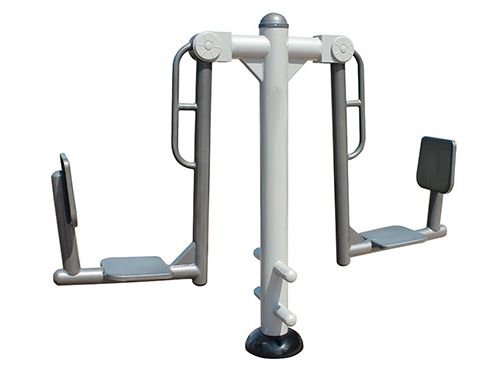

Certified steel fitness equipment for parks, EN 16630 thigh stretch type.
Description: Functions of the equipment:
Develops and strengthens the muscles of the legs and waist, particularly the quadriceps, calves, glutes, and abdominal muscles.
Compliant with EN 16630 standards.
No trauma flooring required according to HIC, EN 1176 standards
Impact area:
Usage age: h > 1.4 m, < 130 kg.
Fall height: 1.06 m.
Equipment weight: 84 kg.
Dimensions: 2.18 x 0.4 x 1.66 m.
Minimum space required: 5.18 x 3.4 m.
Impact surface: 15.68 m2.
Installation:
Equipment designed for masonry embedding using anchor bolts.
Surface protection: See material protection specifications.
Designed for a wide range of ages.
Mechanics designed to optimize performance and reduce physical strain.
The equipment is constructed around a support steel column with a diameter of 140 mm and a thickness of 3 mm.
The other material components boast similar quality in terms of resistance and thickness.
Powder coated with an automated painting process involving two layers of cleaning, drying, powder application, and thermal hardening at 210°C to ensure corrosion resistance for over 240 hours in salt spray chamber tests.
This process uses a double layer of paint that includes an initial primer of zinc-rich epoxy resin and an outer layer of high-quality polyester.
The result of the painting process is a uniform protective layer that is never less than an average between 100 and 130 microns.
Each piece of equipment includes an informational warning according to EN 16630 standards for proper use of the equipment.
Specifications
| Free Fall Height | 1,06 mt |
| fastening | Tirafondi |
| inclusive | No |
| In concrete | si |
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
