According to standard EN 16630: Shock-absorbing floor not needed according to HIC test of standard EN-1176.
Description how work :
Age of use: h > 1,4 m, < 130 kg.
Free Height of fall: 1,1 m.
Heavy mass part: 40 kg.
Largest part dimensions:1,14 x 1,02 x 1,2 m.
Minimum area:4,14 x 4,02, Ø 4,32 m.
Fixing and Surface Protection :
See details on the protection of materials. Vedi specifiche sulla protezione dei materiali..
Installation:
The trapezoidal legs of the bench are prepared for M10 steel bolt anchoring.
Designed for a wide age group. Its mechanisms help to minimise physical effort, as well as optimising performance.

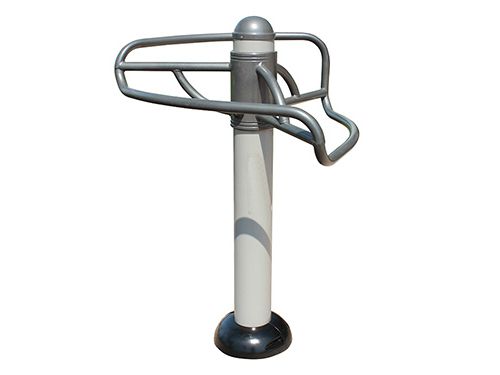

The various parts of the UrbaGym circuit are made with a steel column 140 mm in diameter and 3 mm thick as an element for support.
The rest of the material used in the components boasts similar qualities as regards strength and thickness.
The pieces are finished with a powder coating formulated with epoxy and polyester resins, which are TGIC-free. It is applied in an automated painting process with two layers of cleaning, drying, application of powder and thermal hardening at 210º C to ensure resistance to corrosion of over 240 hours in tests in a saline cloud chamber.
In this process a double layer of paint is used which includes an initial primer of epoxy rich in zinc and an outer layer of high quality polyester. The result of the painting process is a uniform protective layer which is never below an average of between 100 and 130 micras.
Replacements are available and an after sales service is provided throughout the lifetime of the parts.
According to standard EN 16630, an information notice must be visible at installations for physical training equipment.
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
