VIVA HOTSPOT Solar-Powered Smart Bench | IoT Ready with Wireless & USB Charging, LED Lighting, and Internet Hotspot | 2.2m Recycled Plastic

Name: VIVA HOTSPOT Solar-Powered Smart Bench | IoT Ready with Wireless & USB Charging, LED Lighting, and Internet Hotspot | 2.2m Recycled Plastic
Brand: EurocomItalia S.r.l.
SKU: 311303
Availability: InStock

code 311303

category: Benches, Smart city products, Smart city benches, Smart Benches

addons9

code 391379 x 1Basic Control and Sensor Kit for VIVA smart series: Fan, Humidity/Temperature Sensor, and Light Control with Dusk Sensor

code 391397 x 1HOTSPOT Module with included Wi-Fi Modem for network connection

code 391392 x 120W QI Wireless Charger for VIVA SMART Benches

code 391382 x 1Standard USB: Dual USB-A QC3.0 20W Smart Device Charger

code 391402 x 120W USB-C Charger: 1x USB-C + Dual USB-A QC3.0 for Smart Devices

code 391375 x 1Neutral White 4K LED System for VIVA SMART Products

code 391377 x 1RGBW LED System for VIVA SMART Products

code 311381 x 1Air pollution sensor

code 391383 x 1VIVA SMART Wooden Bench Seat

description

downloads

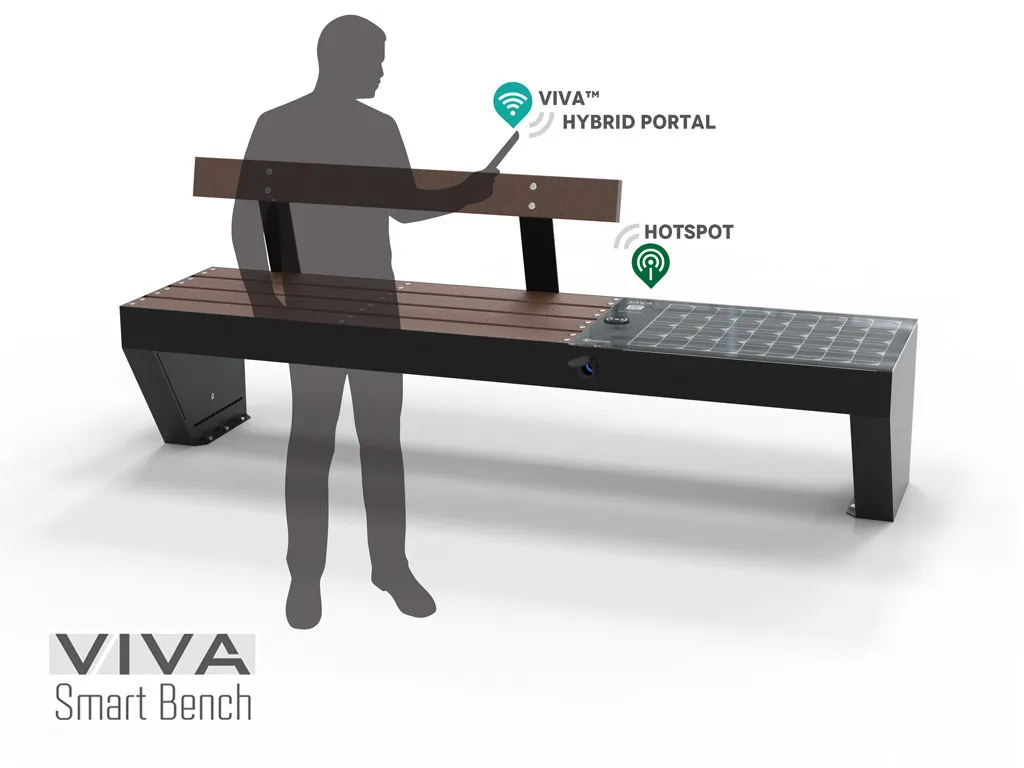

VIVA HOTSPOT Smart Bench for Urban Furnishing with Internet Access:

General Technical Features:
N° 2 trapezoidal side supports made from 3mm thick sheet metal;
Seat and backrest made with STRONGPLAST (recycled plastic) profiles, 120 x 40 mm section, bolted to the seat and backrest supports;
SMART charging module with MPPT technology, featuring a monocrystalline PERC photovoltaic panel and batteries embedded within the bench's structure;
Dimmable cool white LED backlighting.Unique Features of This Version:
Equipped with N° 2 USB ports for charging devices up to 2A and a wireless charger built into the structure;
Neutral white LED backlighting system;
Includes a local management and control system via WIFI connection or in the CLOUD via VIVAPORTAL with 12 months of support (see support features);
Sensors for temperature, humidity, device charging/discharging, and weather, with an automatic stand-by system during prolonged periods of no solar radiation;
Automatic error prediction and self-management system with automatic reports.
Internet connection via 4G LTE network using a data card (not included), or via LAN or WIFI REPEATER;
Customizable HOTSPOT access point with social media integration and options for paid advertising;
GDPR-compliant HOTSPOT PORTAL integration with customizable user privileges and pages, and management of a paid system;
Additional power supply via a high-efficiency charger managed by an energy-saving system that modulates based on solar panel efficiency.

Fixing and Maintenance:The trapezoidal feet are designed for anchoring with M10 steel bolts.The smart module is removable and can be sent for maintenance without needing to remove the entire bench.The surfaces are duly protected by a 5P treatment cycle and are powder-coated.

Included addons
391375  Neutral White 4K LED System for VIVA SMART Products
391379  Basic Control and Sensor Kit for VIVA smart series: Fan, Humidity/Temperature Sensor, and Light Control with Dusk Sensor
391382  Standard USB: Dual USB-A QC3.0 20W Smart Device Charger
391392  20W QI Wireless Charger for VIVA SMART Benches
391397  HOTSPOT Module with included Wi-Fi Modem for network connection

Optional addons
311381  Air pollution sensor
391377  RGBW LED System for VIVA SMART Products
391383  VIVA SMART Wooden Bench Seat
391402  20W USB-C Charger: 1x USB-C + Dual USB-A QC3.0 for Smart Devices

Specifications
Power supply Fotovoltaico
Potenza PV 60W
USB-A 2
Wireless Qi 1
internet hotspot SI
Wi-Fi Si
LED Si
length 2,2 mt
backrest height 80 cm
seat height 45 cm
Color Black
Material Acciaio e Strongplast
Mounting Tasselli
assembled Si

VIVA Products - Description
The VIVA SMART system is based on ZERO WIRE SYSTEM technology: no wiring required.
Simply place the product in an area exposed to sunlight, and the integrated photovoltaic panel will ensure self-sufficiency for all available services, including device charging via USB ports and wireless technology.

The VIVA™ series products were created with the aim of modernizing urban spaces through innovative technologies, geared towards the control and use of specific functionalities to meet the needs of contemporary citizens.
The VIVA™ series redefines the very concept of public space, transforming it not only into a place for rest and relaxation, but into a hub for gathering and interaction.

Depending on the model, the system allows you to:
- charge smart devices (tablets, smartphones) via USB ports
- charge compatible devices via integrated wireless technology
- connect to the Wi-Fi network
- consult real-time information on traffic, air quality, weather conditions, and much more

The VIVA™ series offers extensive customization possibilities.
The cross-functional skills of our team and our deep knowledge of materials and processing technologies allow us to tackle any custom project.

Through a cloud connection, the VIVA PORTAL software allows for centralized remote management of the entire network of stations, on any device and at any time.
A single platform to control and check the system status in real time, in a simple, efficient, and multi-user way:
- monitoring of battery charge status
- collection of weather and environmental data
- monitoring of device charge and discharge cycles
- predictive anomaly detection and error reporting system

STRONGPLAST Specifications
GENERAL INFORMATION ON STRONGPLAST MATERIAL
The material colors, including those shown in photos and technical documentation, are purely indicative and depend on the availability of STRONGPLAST profile colors at the time of production.
All steel parts used in STRONGPLAST structures are adequately protected.
All parts are joined by stainless steel screws embedded in the structure.
All STRONGPLAST products, including play equipment and furniture, have no protruding parts, either in plastic or any other material.
STRONGPLAST is maintenance-free, vandal-proof, does not yellow, is weather-resistant, and fire-retardant.
All playground products are certified according to the UNI EN 1176 standard.
Products made of STRONGPLAST are CAM certified (Minimum Environmental Criteria).

Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.

Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.

Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.

DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
