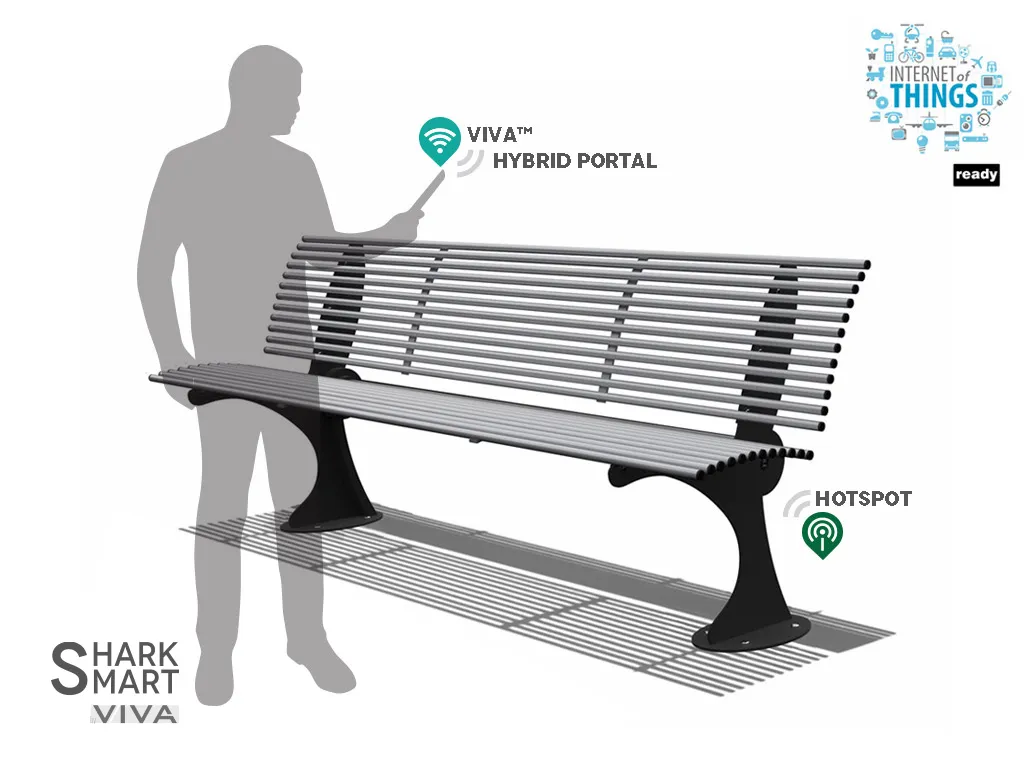

SHARK SMART PORTAL 2m Steel Bench, Mains Powered, USB Charging, RGBW LED Backlight, Environmental Sensors, WIFI HOTSPOT.
code 311014
Category: Urban furniture, Benches, Smart city products, Smart city benches, Smart Benches
Description
Downloads
Product version
SHARK SMART PORTAL Bench - Internet of Things
Steel bench built according to the safety requirements and testing methods of UNI 11306:2009, 2m long with mains power, USB charging, LED backlighting, environmental, sound, and presence sensors, supplied as an assembly kit. Cloud management software included.
General Technical Features
• 2 side supports in laser-cut shaped sheet metal, 60/10 thickness, equipped with a rectangular plate for ground anchoring;
• Seat and backrest made with 25 galvanized steel rods, 20 mm in diameter, welded to 60/10 sheet metal side supports. The ends of the rods have black PE caps.
Version Features
• MAGIC TUBE module with integrated SMART management and backlighting system;
• Equipped with USB ports for charging devices up to 2 A;
• Neutral white LED backlighting system;
• Includes local management and control system via WiFi connection or in the cloud via a portal with 12 months of support;
• Temperature and humidity sensors;
• Self-management and error prediction system with automatic reports.
Finish
The feet are painted using the following cycle: a coat of single-component zinc phosphate primer, and a finishing coat of highly protective two-component catalyzed paint.
Standard color: antique black type EUROCOMITALIA.
Where requested, painting according to the customer's RAL is available.
The exotic wood slats are treated with EUROCOMITALIA's special ECOPLUS paint in dark walnut or mahogany, suitable for resistance to ultraviolet rays and weathering.
Fixing
The base is prepared for anchoring with M10 steel bolts.
Innovation and Functionality
The new SHARK SMART bench was created to modernize today's cities with innovative technologies for controlling and enjoying specific functionalities aimed at meeting the modern needs of citizens.
Thanks to its technological functions, it becomes a place not only for relaxation but also for social gathering, where a new way of thinking about the city can be conceived.
We can charge our smart devices thanks to the two side USB ports, connect to WiFi, and get real-time information on traffic, smog, weather conditions, etc. Communicating has never been easier!
Customization
Ample room for customer customization.
The cross-disciplinary skills of our team, combined with our knowledge of materials and processing technologies, allow us to tackle any custom project.
VIVA PORTAL - Cloud Management
Through the cloud connection, the VIVA PORTAL software manages the network of stations remotely on any device at any time.
• Control and verify the system from a single station;
• Manage all your stations in real-time simply and efficiently, even with multi-user access;
• Control your network of stations and check the monitoring information sent;
• Monitoring of battery charge, weather info, environmental info, device charging and discharging, error prediction and reports.
Module Features
The magic happens thanks to the modules, the beating heart of the system, which allow you to customize the product according to your needs.
Unique Technical Features of this Version
• Total Control: WiFi access to an interface for real-time data viewing and control;
• InfoSensor: Environmental information from sensors such as temperature and humidity;
• VivaDirect: Direct access to information and control via WiFi near the station;
• VivaPortal: Remote management and control portal in the cloud;
• USB Charging: 2 ports 5W and 2.2W;
• Cooling System: Air flow: 170 m³/h, Temperature trigger: 38°C;
• LED Light: Dimmable neutral white or RGBW LED.
Optional
• Art. 391381: CO2 pollution sensor;
• Art. 391383: GPS position sensor;
• Art. 391386: Custom RAL color painting on request;
• Art. 391387: Module for installation without anchoring;
• Art. 391398: Anti-vandalism presence sensor.
Specifications
| height | 83 cm |
| Color | Nero e Grigio |
| Material | Steel |
| Mounting | Tassellaggio nel terreno |
| length | 2 mt |
| Power supply | Rete Elettrica |
| Accessories | USB, LED,MODEM |
The VIVA SMART system is based on ZERO WIRE SYSTEM technology: no wiring required.
Simply place the product in an area exposed to sunlight, and the integrated photovoltaic panel will ensure self-sufficiency for all available services, including device charging via USB ports and wireless technology.
The VIVA™ series products were created with the aim of modernizing urban spaces through innovative technologies, geared towards the control and use of specific functionalities to meet the needs of contemporary citizens.
The VIVA™ series redefines the very concept of public space, transforming it not only into a place for rest and relaxation, but into a hub for gathering and interaction.
Depending on the model, the system allows you to:
- charge smart devices (tablets, smartphones) via USB ports
- charge compatible devices via integrated wireless technology
- connect to the Wi-Fi network
- consult real-time information on traffic, air quality, weather conditions, and much more
The VIVA™ series offers extensive customization possibilities.
The cross-functional skills of our team and our deep knowledge of materials and processing technologies allow us to tackle any custom project.
Through a cloud connection, the VIVA PORTAL software allows for centralized remote management of the entire network of stations, on any device and at any time.
A single platform to control and check the system status in real time, in a simple, efficient, and multi-user way:
- monitoring of battery charge status
- collection of weather and environmental data
- monitoring of device charge and discharge cycles
- predictive anomaly detection and error reporting system
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
