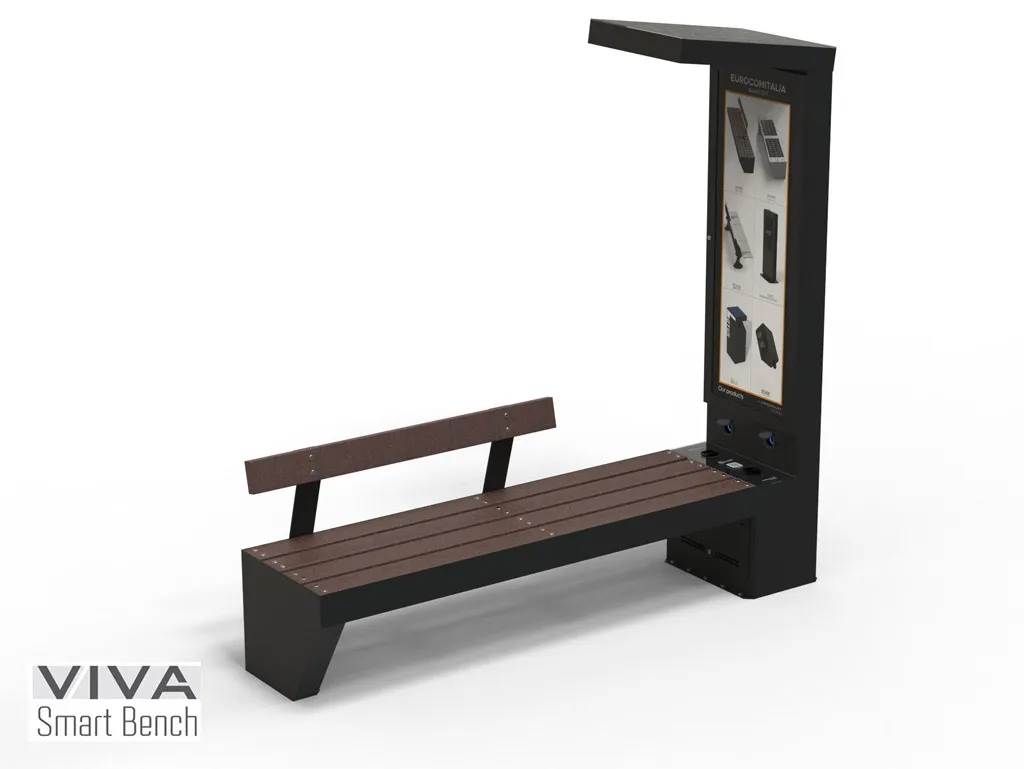

Smart bench - VIVA ADV model intelligent bench for urban furniture, designed for device charging.
General Technical Features:
N° 2 trapezoidal side supports made of 30/10 thickness sheet metal;
Seat and backrest made with STRONGPLAST (recycled plastic) profiles, 120 x 40 mm section, bolted onto the seat and backrest supports;
SMART charging module equipped with MPPT technology, with a photovoltaic panel and batteries embedded within the bench's structure.
Version Features:
Equipped with USB ports for charging devices up to 2A and a wireless charger with QI technology built into the structure;
Neutral white LED lighting system;
Includes local management and control system via WIFI connection or in the CLOUD via a portal;
Temperature, humidity, device charge/discharge sensors, and weather sensors with an automatic standby system in case of prolonged absence of solar radiation;
Self-management and error prediction system with automatic reports;
Totem for displaying fixed advertising panels.
Fixing and Maintenance:
The trapezoidal feet are designed for anchoring with M10 steel bolts.
The surfaces are properly protected by a 5P treatment cycle.
Unique Technical Features of this Version:
Total Control: WIFI access to an interface for real-time data visualization and control.
InfoSensor: Environmental information from sensors such as temperature and humidity, device charge and discharge, energy production, instantaneous and long-term consumption, self-check with error prediction and reports.
VivaDirect: Direct access to information and control via WIFI when near the station.
VivaPortal: Remote management and control portal in the Cloud (requires the system to be connected to the internet).
Photovoltaic Module: Monocrystalline with 60W of power.
Batteries: AGM type, capacity up to 0.72 kWh.
USB Charging: 4 ports with 5W and 2.2W.
Wireless Charging: 20W QI power.
Cooling System: Airflow of 170 m³/h, Temperature Trigger: 38°C.
LED Light: Dimmable neutral white LED lighting.
Included in goods price
391375 Neutral White 4K LED System for VIVA SMART Products
391379 Basic Control and Sensor Kit for VIVA smart series: Fan, Humidity/Temperature Sensor, and Light Control with Dusk Sensor
391382 Standard USB: Dual USB-A QC3.0 20W Smart Device Charger
391392 20W QI Wireless Charger for VIVA SMART Benches
optional
311381 Air pollution sensor
391377 RGBW LED System for VIVA SMART Products
391397 HOTSPOT Module with included Wi-Fi Modem for network connection
391402 20W USB-C Charger: 1x USB-C + Dual USB-A QC3.0 for Smart Devices
391403 220V Schuko Socket for Smart Benches with Rain Protection
391406 Bluetooth Audio System with Amplified Speaker for Public Spaces
Specifications
| assembled | No |
| Mounting | tasselli |
| Material | Acciaio e Strongplast |
| Color | Black |
| Accessories | Totem, USB, LED, IOT |
The VIVA SMART system is based on ZERO WIRE SYSTEM technology: no wiring required.
Simply place the product in an area exposed to sunlight, and the integrated photovoltaic panel will ensure self-sufficiency for all available services, including device charging via USB ports and wireless technology.
The VIVA™ series products were created with the aim of modernizing urban spaces through innovative technologies, geared towards the control and use of specific functionalities to meet the needs of contemporary citizens.
The VIVA™ series redefines the very concept of public space, transforming it not only into a place for rest and relaxation, but into a hub for gathering and interaction.
Depending on the model, the system allows you to:
- charge smart devices (tablets, smartphones) via USB ports
- charge compatible devices via integrated wireless technology
- connect to the Wi-Fi network
- consult real-time information on traffic, air quality, weather conditions, and much more
The VIVA™ series offers extensive customization possibilities.
The cross-functional skills of our team and our deep knowledge of materials and processing technologies allow us to tackle any custom project.
Through a cloud connection, the VIVA PORTAL software allows for centralized remote management of the entire network of stations, on any device and at any time.
A single platform to control and check the system status in real time, in a simple, efficient, and multi-user way:
- monitoring of battery charge status
- collection of weather and environmental data
- monitoring of device charge and discharge cycles
- predictive anomaly detection and error reporting system
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
