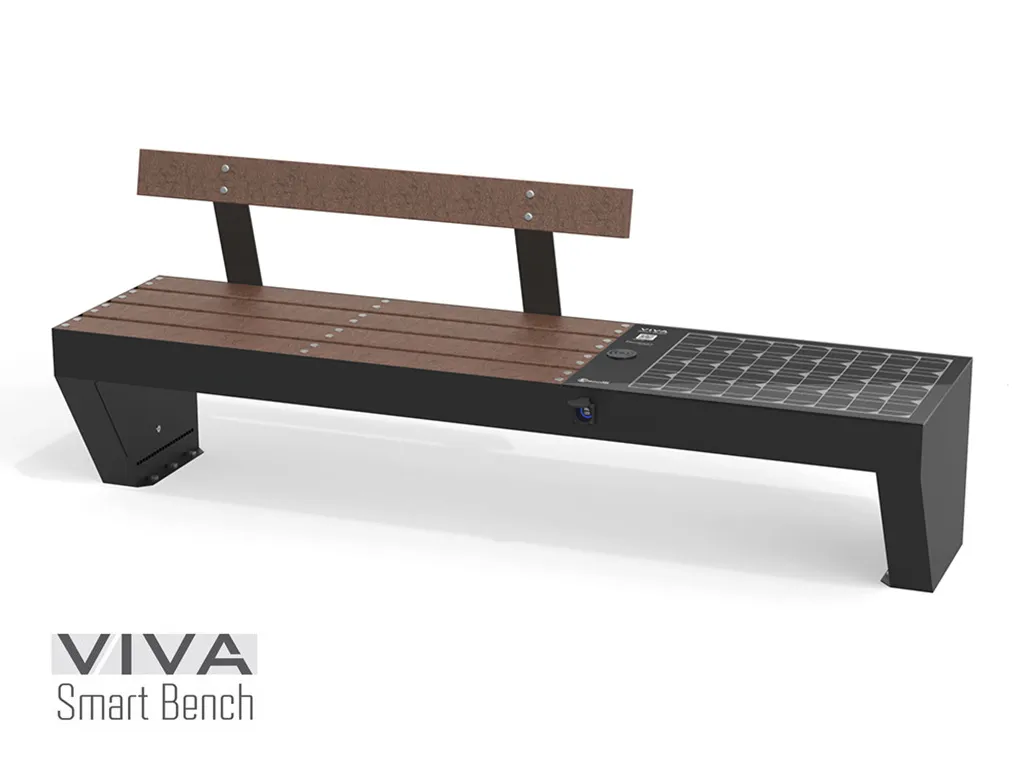

VIVA smart bench for urban furniture, designed for device charging.
General technical features:
2 trapezoidal side supports made of 3mm thick sheet metal;
Seat and backrest made with 120 x 40 mm STRONGPLAST (recycled plastic) profiles, bolted onto the seat and backrest supports;
SMART charging module equipped with MPPT technology, with a photovoltaic panel and batteries embedded in the bench structure.
Version features:
Equipped with USB ports for charging devices up to 2 A and a 20W QI wireless charger built into the structure;
Neutral white LED backlighting system;
Includes a local management and control system via WIFI connection or in the CLOUD via a portal;
Temperature, humidity, device charge/discharge, and weather sensors with an automatic standby system in case of prolonged lack of solar radiation;
Self-management and error prediction system with automatic reports.
Installation and maintenance:
The trapezoidal feet are designed for anchoring with M10 steel bolts.
The surfaces are duly protected by a 5P cycle and are powder-coated.
Unique technical features of this version:
Total Control: WIFI access to an interface for real-time data viewing and control.
InfoSensor: Environmental information from sensors such as temperature and humidity, device charging and discharging, energy production, instantaneous and long-term consumption, and self-check with error prediction and reports.
VivaDirect: Direct access to information and control via WIFI when near the station.
VivaPortal: Remote management and control portal in the Cloud (requires an internet connection, not provided).
Photovoltaic module: Monocrystalline PERC with 60W of power.
Batteries: AGM type with a capacity of up to 0.72 kWh.
USB Charging: 2 ports, 5W and 2.2W.
Wireless Charging: 20W power / Up to 90% efficiency.
Cooling system: Airflow 170 m³/h, Temperature trigger: 38°C.
Backlit panel and dimmable cool white LED light.
| Accessories | USB , LED , IOT |
| Power supply | Fotovoltaico |
| backrest height | 80 cm |
| seat height | 45 cm |
| Color | Black |
| internet hotspot | No |
| length | 2,2 mt |
| Material | Acciaio Strongplast |
| Mounting | Tassell. |
| assembled | Si |
| Potenza PV | 60W |
| USB-A | 2 |
| Wireless Qi | 1 |
| internet hotspot | No |
| Wi-Fi | Si |
VIVA Products - Description
Surface protection
Assembly instructions
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
STRONGPLAST Specifications
GENERAL INFORMATION ON STRONGPLAST MATERIAL
The material colors, including those shown in photos and technical documentation, are purely indicative and depend on the availability of STRONGPLAST profile colors at the time of production.
All steel parts used in STRONGPLAST structures are adequately protected.
All parts are joined by stainless steel screws embedded in the structure.
All STRONGPLAST products, including play equipment and furniture, have no protruding parts, either in plastic or any other material.
STRONGPLAST is maintenance-free, vandal-proof, does not yellow, is weather-resistant, and fire-retardant.
All playground products are certified according to the UNI EN 1176 standard.
Products made of STRONGPLAST are CAM certified (Minimum Environmental Criteria).
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
