SHARK Steel Bench with RED Seat and Back, 2-Meter Length

Name: SHARK Steel Bench with RED Seat and Back, 2-Meter Length
Brand: EurocomItalia S.r.l.
SKU: 311004
Availability: InStock

code 311004

Category: Benches, Contemporary benches

Description

Downloads

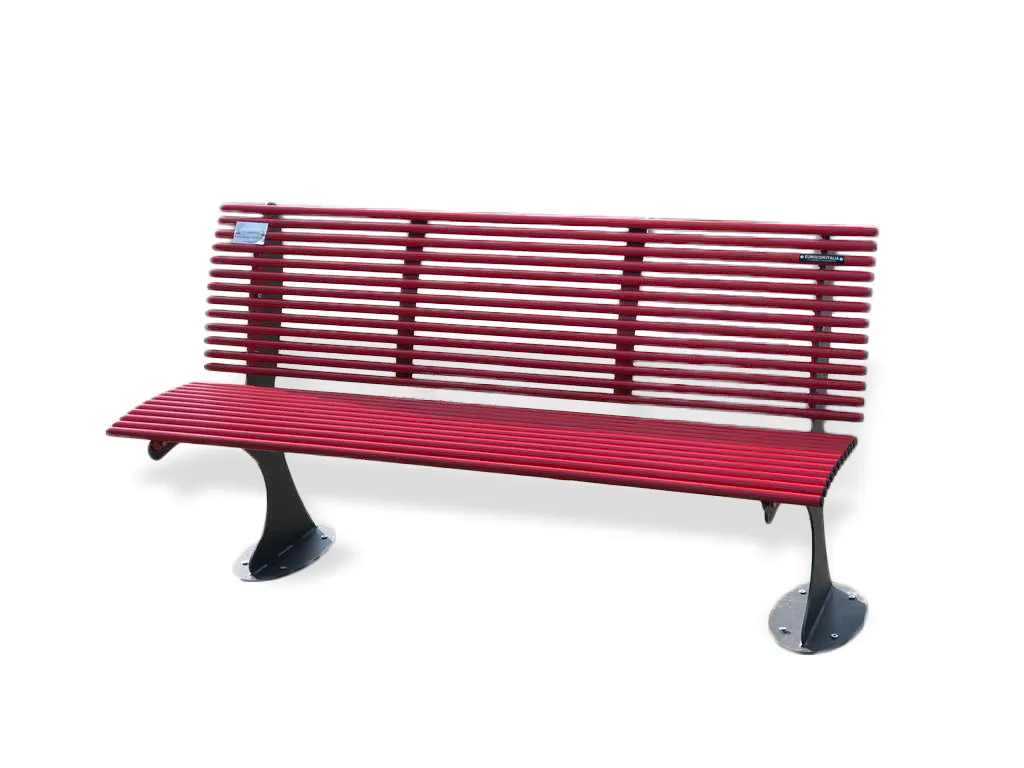

Classic Shark model urban furniture bench, 2 meters long, with a RED painted backrest and antique black legs. Supplied as an assembly kit.

Composed of:
• 2 side supports made of laser-cut shaped sheet metal, 6 mm thick, equipped with an oval plate for ground anchoring.
• 1 central support made of laser-cut shaped sheet metal, 6 mm thick, equipped with an oval plate for ground anchoring.
• Seat and backrest made with 25 steel rods, 20 mm in diameter, welded to side supports also made of 6 mm sheet metal. The ends of the rods are fitted with spherical black PE caps.
Installation:
The oval plates are pre-drilled for anchoring with M10 steel bolts.
Manufactured according to the safety requirements and testing methods of UNI 11306:2009.

Specifications

height	83 cm
Material	Steel
brackets color	Black
length	2 mt

Mounting	Tasselli
wall bars	Si
assembled	No
Color	Rosso + Nero

Surface protection

GENERAL INFORMATION ON SURFACE PROTECTION

All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.

Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.

Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.

The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.

Standard finish: antique black, Eurocomitalia type.

Any color from the RAL Classic chart is available upon request.

Detailed technical specifications are available in the dedicated documentation.

Assembly instructions

GENERAL ASSEMBLY INSTRUCTIONS

All products are accompanied by specific assembly instructions for the model provided.

Each product, based on its nature and intended use, requires dedicated installation methods.

For detailed technical specifications, please refer to the dedicated documentation.

Screw protection
SCREWS AND BOLTS

All screws, bolts, and other fastening accessories are generally supplied in stainless steel.

DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.

Product version1

code 311002

height83 cm

Colorgrigio 7040 + nero
