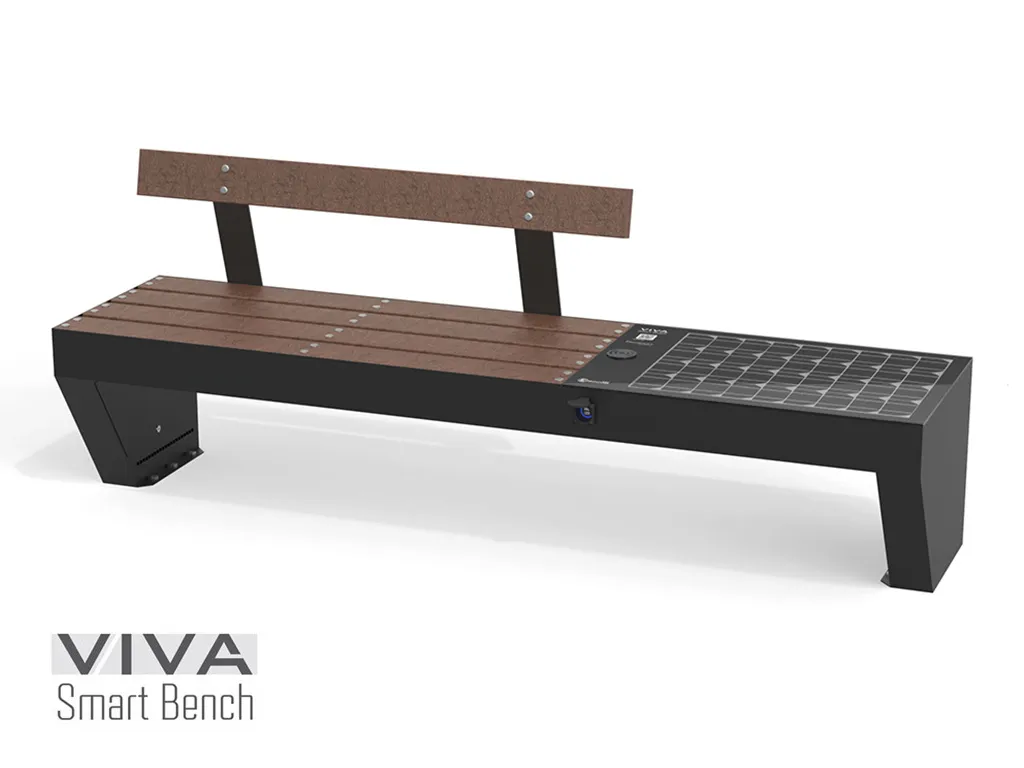

VIVA Solar-Powered Smart Bench, IoT Ready, 2.2m Recycled Plastic Seat & Back, WIRELESS & USB Device Charging, LED Lighting

Name: VIVA Solar-Powered Smart Bench, IoT Ready, 2.2m Recycled Plastic Seat & Back, WIRELESS & USB Device Charging, LED Lighting
Brand: EurocomItalia S.r.l.
SKU: 311301
Availability: InStock

code 311301

Category: Urban furniture, Benches, Smart city benches, Smart Benches

color

Select color

Description

Downloads

Product version

VIVA smart bench for urban furniture, designed for device charging.

General Technical Features:
N° 2 trapezoidal-shaped side supports made of 3mm thick sheet metal;
Seat and backrest made with STRONGPLAST (recycled plastic) profiles, 120 x 40 mm section, bolted onto the seat and backrest supports;
SMART charging module with MPPT technology, featuring a photovoltaic panel and batteries integrated into the bench's structure.

Version Features:
Equipped with USB ports for charging devices up to 2A and a 20W QI wireless charger built into the structure;
Neutral white LED backlighting system;
Includes local management and control system via WIFI connection or cloud-based portal;
Temperature, humidity, device charging/discharging, and weather sensors with an automatic stand-by system during prolonged periods of no sunlight;
Self-management and error prediction system with automatic reports.

Fixing and Maintenance:
The trapezoidal feet are designed for anchoring with M10 steel expansion bolts.
The surfaces are fully protected by a 5P cycle treatment and powder-coated finish.

Unique Technical Features of This Version:
Total Control: WIFI access to an interface for real-time data monitoring and control.
InfoSensor: Environmental data from sensors including temperature and humidity, device charging/discharging status, energy production, instant and historical consumption, plus self-diagnostics with error prediction and reports.
VivaDirect: Direct access to information and control via WIFI when near the bench.
VivaPortal: Cloud-based remote management and control portal (requires an internet connection, not included).
Photovoltaic Module: 60W Monocrystalline PERC.
Batteries: AGM type with a capacity of up to 0.72 kWh.
USB Charging: 2 ports (5W and 2.2W).
Wireless Charging: 20W Power / Up to 90% Efficiency.
Cooling System: Airflow 170 m³/h, Temperature trigger: 38°C.
Backlit panel and dimmable cool white LED light.

Specifications

Accessories	USB , LED , IOT
Power supply	Fotovoltaico
backrest height	80 cm
seat height	45 cm
Color	Black

internet hotspot	No
length	2,2 mt
Material	Acciaio Strongplast
Mounting	Tassell.
assembled	Si

Included in goods price
391375  Neutral White 4K LED System for VIVA SMART Products
391379  Basic Control and Sensor Kit for VIVA smart series: Fan, Humidity/Temperature Sensor, and Light Control with Dusk Sensor
391382  Standard USB: Dual USB-A QC3.0 20W Smart Device Charger
391392  20W QI Wireless Charger for VIVA SMART Benches

optional
391377  RGBW LED System for VIVA SMART Products
391383  VIVA SMART Wooden Bench Seat
391397  HOTSPOT Module with included Wi-Fi Modem for network connection
391402  20W USB-C Charger: 1x USB-C + Dual USB-A QC3.0 for Smart Devices
391403  220V Schuko Socket for Smart Benches with Rain Protection

The VIVA SMART system is based on ZERO WIRE SYSTEM technology: no wiring required.

Simply place the product in an area exposed to sunlight, and the integrated photovoltaic panel will ensure self-sufficiency for all available services, including device charging via USB ports and wireless technology.

The VIVA™ series products were created with the aim of modernizing urban spaces through innovative technologies, geared towards the control and use of specific functionalities to meet the needs of contemporary citizens.

The VIVA™ series redefines the very concept of public space, transforming it not only into a place for rest and relaxation, but into a hub for gathering and interaction.

Depending on the model, the system allows you to:

- charge smart devices (tablets, smartphones) via USB ports

- charge compatible devices via integrated wireless technology

- connect to the Wi-Fi network

- consult real-time information on traffic, air quality, weather conditions, and much more

The VIVA™ series offers extensive customization possibilities.

The cross-functional skills of our team and our deep knowledge of materials and processing technologies allow us to tackle any custom project.

Through a cloud connection, the VIVA PORTAL software allows for centralized remote management of the entire network of stations, on any device and at any time.

A single platform to control and check the system status in real time, in a simple, efficient, and multi-user way:

- monitoring of battery charge status

- collection of weather and environmental data

- monitoring of device charge and discharge cycles

- predictive anomaly detection and error reporting system

GENERAL INFORMATION ON SURFACE PROTECTION

All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.

Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.

Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.

The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.

Standard finish: antique black, Eurocomitalia type.

Any color from the RAL Classic chart is available upon request.

Detailed technical specifications are available in the dedicated documentation.

GENERAL ASSEMBLY INSTRUCTIONS

All products are accompanied by specific assembly instructions for the model provided.

Each product, based on its nature and intended use, requires dedicated installation methods.

For detailed technical specifications, please refer to the dedicated documentation.

SCREWS AND BOLTS

All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
