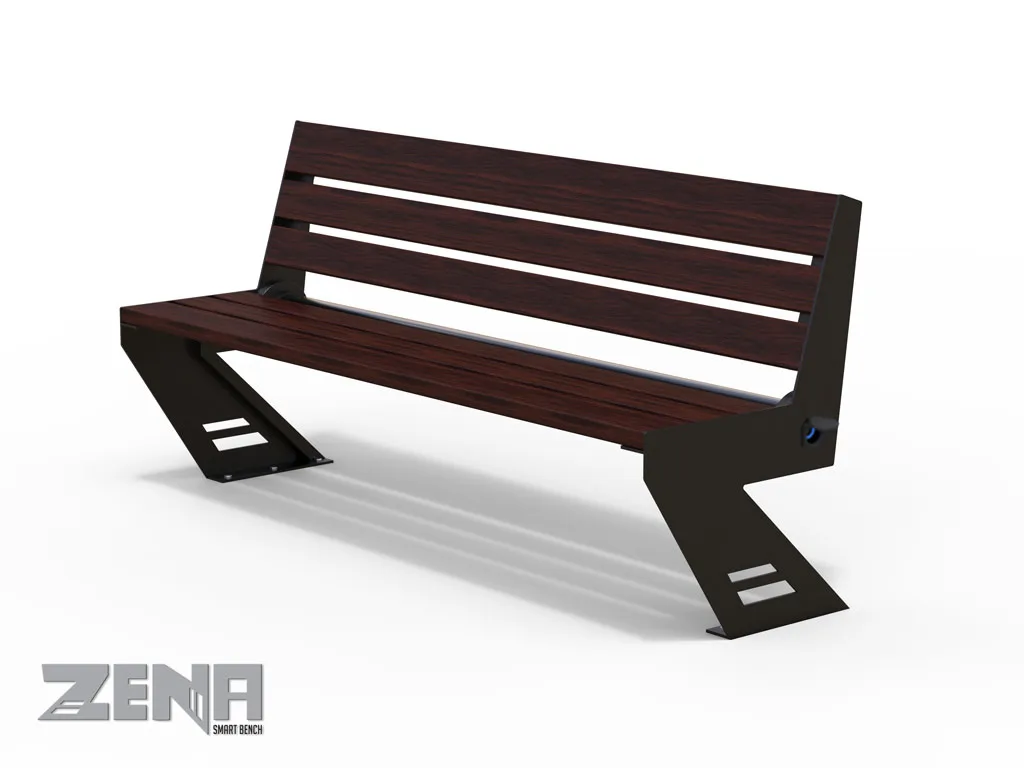

ZENA SMART PORTAL steel bench built according to safety requirements and test methods UNI 11306:2009, 2 m length, with mains power supply, USB charging, LED backlighting, environmental, sound and presence sensors. Cloud management software included.
General technical features:
N° 2 laser-cut shaped sheet metal side supports, 60/10 thickness, equipped with a rectangular plate for ground anchoring;
Seat and backrest made with N° 1 wooden slat section 120 x 35 mm and N° 2 wooden slats 90 x 35 mm, length 1700 mm.
Version features:
MAGIC TUBE module with integrated SMART management and backlighting system;
Equipped with USB sockets for charging devices up to 2 A;
Neutral white LED backlighting system;
Includes local management and control system via WIFI connection or in the CLOUD via portal with 12 months of support;
Temperature, humidity, device charge and discharge sensors, meteorological sensors with automatic stand-by system in case of prolonged absence of solar radiation;
Self-management and error prediction system with automatic reports.
Finish:
Standard antiqued black color, EUROCOMITALIA type. Where required, painting according to the customer's RAL is possible. The wooden slats are treated with a special ECOPLUS paint by EUROCOMITALIA in dark walnut or mahogany color, suitable for resistance to ultraviolet rays and weathering.
Fixing:The base is designed for anchoring with M10 steel bolts.
The new ZENA SMART bench was created to modernize today's cities with innovative technologies for controlling and using specific functionalities, aimed at satisfying the modern needs of citizens. Thanks to its technological functions, it becomes a place not only for relaxation but also for social gathering, where it's possible to conceive a new way of thinking about the city. We can charge our smart devices thanks to the two side USB sockets, connect to Wi-Fi, and get real-time information on traffic, smog, weather conditions, etc. Communicating has never been so simple!
Unique technical features of the version:
Total Control: Access via WIFI to the interface for real-time data viewing and control.
InfoSensor: Environmental information from sensors such as temperature and humidity, device charging and discharging, energy production, instantaneous and long-term consumption, autocheck with error prediction and reports.
VivaDirect: Direct access to information and control via WIFI near the station.
VivaPortal: Remote management and control portal in the Cloud.
USB Charging: 2 ports 5W and 2.2W.
Wireless Charging: 10W Power / Efficiency up to 80%.
Cooling system: Air flow 170 m³/h, Temperature trigger: 38°C.
LED Light: backlit panel and dimmable neutral white LED light.
| seat | 43 cm |
| height | 82 cm |
| Mounting | Bolt anchor |
| assembled | si |
| Power supply | Rete elettrica |
| Material | Acciaio e Legno |
| Accessories | USB, Led |
| Color | Nero, Noce scuro |
| weight | 29 kg |
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
