Modern Backless Bench in Steel and Strongplast Slats, 1.9 m Length - Assembly Kit

Name: Modern Backless Bench in Steel and Strongplast Slats, 1.9 m Length - Assembly Kit
Brand: EurocomItalia S.r.l.
SKU: 311701
Availability: InStock

code 311701

Category: Benches, Modern benches

Description

Downloads

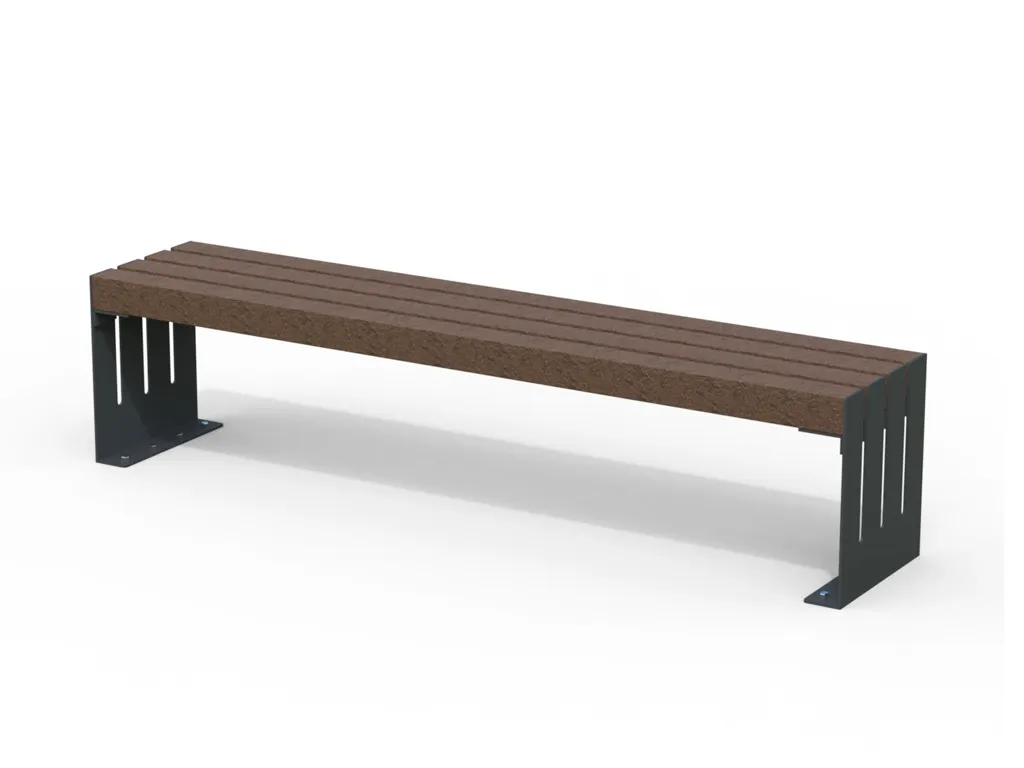

Modern model urban furniture bench with steel supports and Strongplast slats, total length 1.9 meters.

Composed of:
2 steel side supports, formed by a flange for ground fixing and steel plates;
4 STRONGPLAST slats (80x80 mm section), internally milled and reinforced with a 15x15 section steel tube, drilled for attachment to the supports with steel hardware.
The bench is supplied as an assembly kit.
The steel surfaces are properly sandblasted before the painting process.
Seat made of 80x80 mm square section Strongplast slats, reinforced with 15x15x2 mm thick profiles.

Fixing:
The base is designed for anchoring with 10 mm diameter steel bolts.

Specifications

seat height	45 cm
height	45 cm
wall bars	No
length	1,9 mt

Mounting	Bolt anchor
assembled	No
slats	Strongplast

Surface protection

GENERAL INFORMATION ON SURFACE PROTECTION

All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.

Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.

Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.

The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.

Standard finish: antique black, Eurocomitalia type.

Any color from the RAL Classic chart is available upon request.

Detailed technical specifications are available in the dedicated documentation.

STRONGPLAST Specifications

GENERAL INFORMATION ON STRONGPLAST MATERIAL
The material colors, including those shown in photos and technical documentation, are purely indicative and depend on the availability of STRONGPLAST profile colors at the time of production.
All steel parts used in STRONGPLAST structures are adequately protected.
All parts are joined by stainless steel screws embedded in the structure.
All STRONGPLAST products, including play equipment and furniture, have no protruding parts, either in plastic or any other material.
STRONGPLAST is maintenance-free, vandal-proof, does not yellow, is weather-resistant, and fire-retardant.
All playground products are certified according to the UNI EN 1176 standard.
Products made of STRONGPLAST are CAM certified (Minimum Environmental Criteria).

Assembly instructions

GENERAL ASSEMBLY INSTRUCTIONS

All products are accompanied by specific assembly instructions for the model provided.

Each product, based on its nature and intended use, requires dedicated installation methods.

For detailed technical specifications, please refer to the dedicated documentation.

Screw protection
SCREWS AND BOLTS

All screws, bolts, and other fastening accessories are generally supplied in stainless steel.

DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
