Large octagonal cast iron base for steel poles
code 305
description
downloads

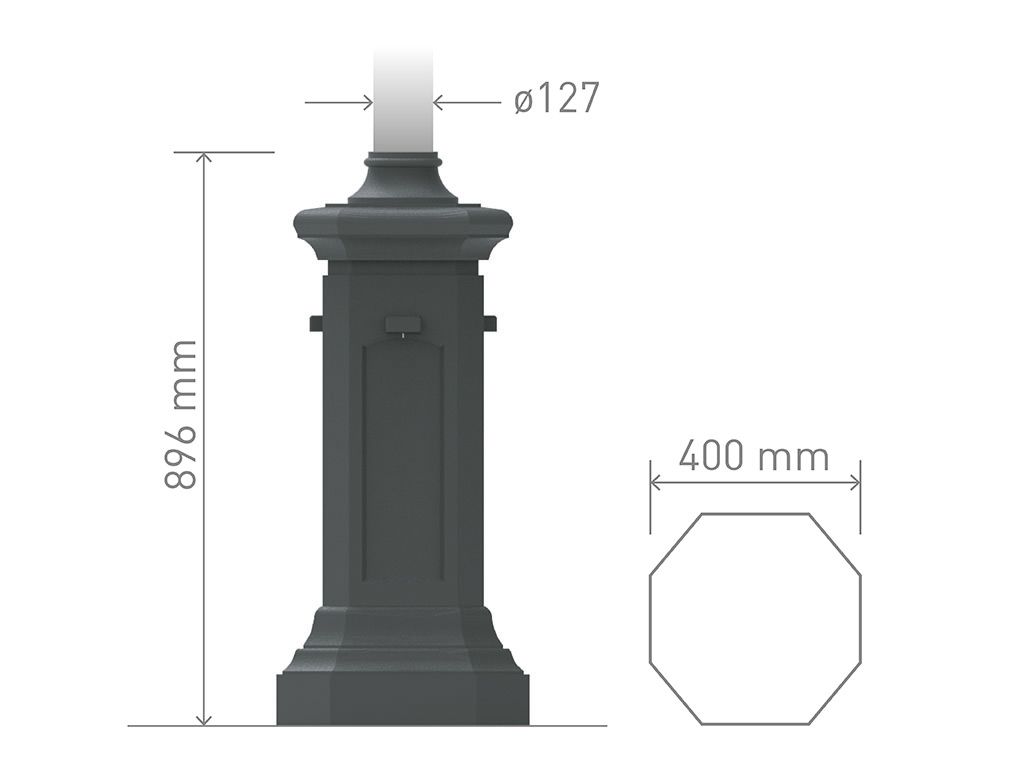

UNI EN 1561 GJL250 cast iron base for steel poles
Height 896 mm
Width 400 mm
Output for steel pole.
The base is equipped with a hatch for insertion of a terminal block.
All elements that make up the base are each cast as a sigle piece.
Painted antracite black or any other RAL colore requested.
Protection of surfaces: See specifications on the protection of materials.
Installation: See installation specifications.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
