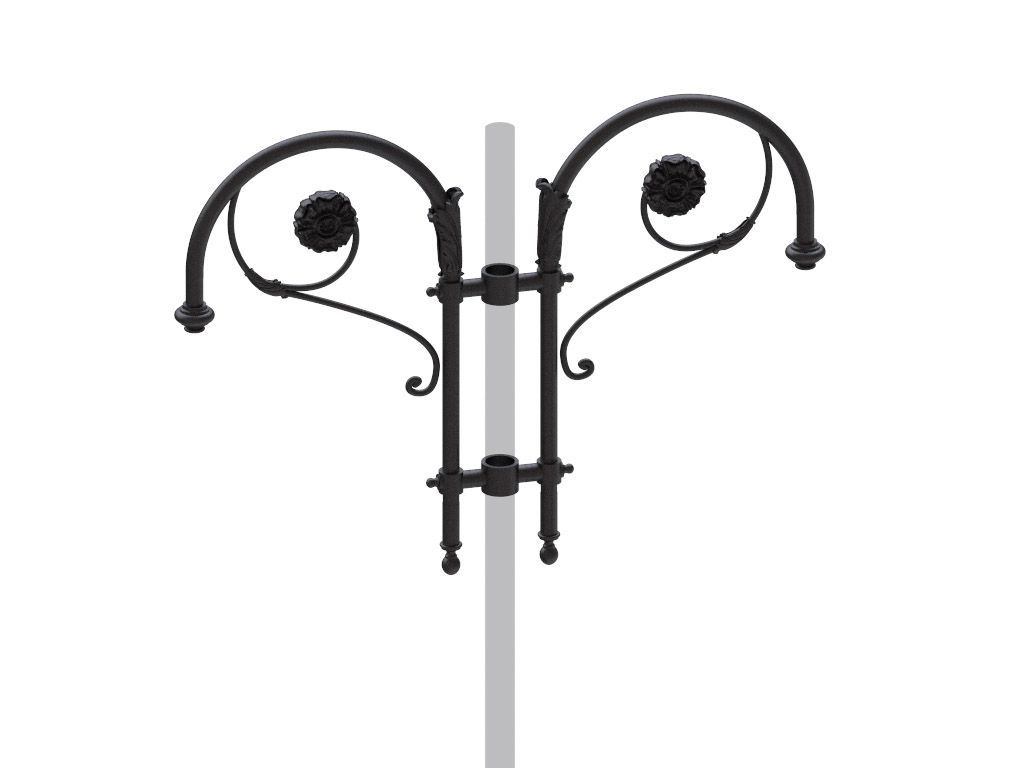

'Bernini double' pole top with two curved double curl and flower decorated brackets

Suitable support for suspended light fixtures.

Made in aluminum cast , and S235J UNI EN 10219-1 steel, hot dip galvanized according to UNI EN ISO 1461.

Screws in stainless steel.

Description

Aluminum Cast junction cast in a single piece, height 105 mm.

A ring in hot-galvanised steel for lower support of the suspension brackets.

t is secured to the supporting tube with two M8 grubs.

A ring in hot-galvanised steel for upper support of the suspension brackets.

he ring has four holes (B - Ø 1.8 cm) for the passage of power supply cable.

It is secured to the supporting tube with two M8 grubs.

Two suspension brackets, each height 130 cm, with a protrusion of 81 cm.

Structurally each bracket is composed of a tube in steel (Ø 4.2 cm), decorations in aluminum cast and support attachments  in aluminum cast .

The brackets are arranged at 180° to each other and fixed to the support rings with four M8 screws.

At the end of each suspension bracket there is a connection  in aluminum cast with internal thread G3/4’’ for attaching the light fixture.

The power cables pass inside each suspension brackets.

Dimensions and weight

Height 130 cm; width 85 cm.

Weight 42 kg.

Painting : Standard color is dark gray, type EUROCOMITALIA.

Surface Protection See details on the protection of materials. .

Items included UNI 5745 galvanized internal UNI EN 10219-1 steel core.

Assemblage See installation specifications.
