Cast Iron and Steel Pole with Base 311, Shepherd's Crook 505, and Lantern 622029
code 100031
Category: Complete lighting poles, Cast iron and steel poles
Description

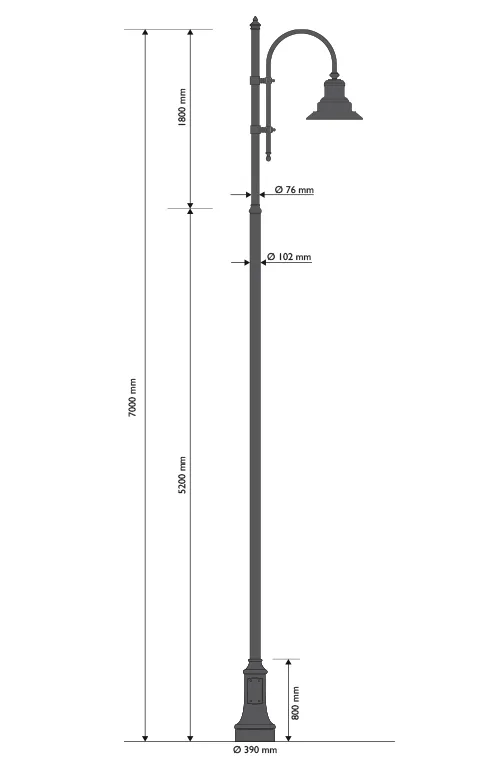

Cast iron pole crafted in style with circular section body elements, standing 7 meters tall.
The pole consists of a base, with its lower part made up of a wide circular strip supporting the central part, which is also circular and frusto-conical in shape.
At the center, there is a cast iron inspection door designed for housing terminal blocks inside.
The base is topped with a frusto-conical ornament in the shape of a cone. Base height: 800 mm; base width: 390 mm.
The shaft is made of galvanized steel with a circular section, tapered, with a diameter of 102 mm for the first section and 76 mm for the second section.
The shaft is composed of pipes of varying heights, with the first section reaching up to 800 mm for ground embedding or, upon request, with a flange for anchoring.
At the base, there is a protective thermosetting sheath.
The tapering is adorned with collars made of cast iron or aluminum, secured to the pole with nuts.
The pole head is made of cast iron or aluminum, attached to the pole with stainless steel nuts.
The pole is equipped with a single shepherd's crook top in steel, COD 505, made of a tube (diameter 45 mm, thickness 3 mm) curved as per design. Finished with an ornament, bolt cover, and a threaded tube lantern attachment 3/4.
The shepherd's crook is held to the pole by decorative hooks made of aluminum or cast iron.
At the end of the shepherd's crook, there is a lantern COD 622.
Equipped with an M10 screw for grounding and a 55 mm diameter hole for the passage of an electrical cable inside.
All cast iron or aluminum elements are made from a single casting.
PROTECTION OF SURFACES
Cast iron surfaces are properly sandblasted before the painting process.
Steel surfaces are galvanized.
Painting is performed using the following cycle:
one coat of mono-component zinc phosphate primer, one finishing coat of highly protective bi-component catalyzed paint.
Standard color: antiqued black type EUROCOMITALIA.
Where requested, painting according to the customer's RAL is available.
FASTENERS
Fasteners and accessories made of stainless steel IASI 316.
Specifications
| above ground height | 7 metri |
| Bracci | 1 |
| light point height | 6 metri |
| Luci Sfalzate | No |
| Punti luce | 1 |
| light source | LED |
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
