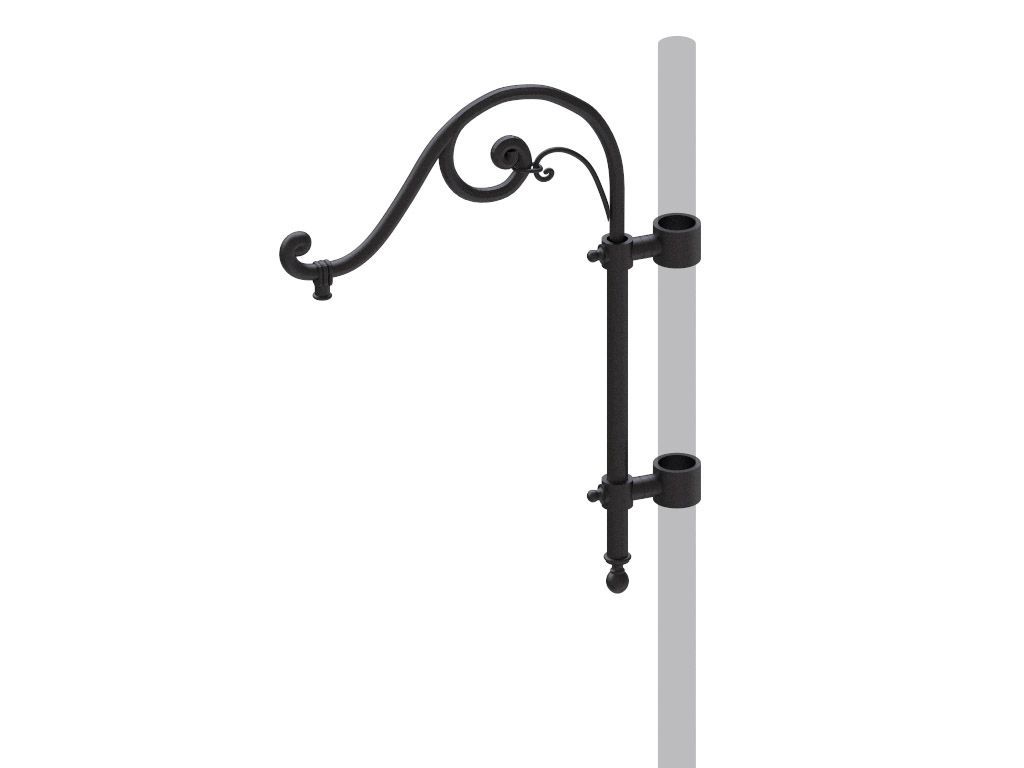

Long UNI EN 1706 aluminum or UNI EN 1561 GJL250 cast iron pole top with mounted curved steel suspension bracket.
The support junctions along the bracket are each made individually in a single casting of nodular cast iron or aluminum; curved bracket tube is prearranged for the passage of cables and threaded 3/4" GAS in the final part for light fixture attachment.
Fit for pole top mounting with poles diam. 60, 70, 89 mm.
Painted black anthracite or any other colore RAL requested.
Surface Protection powder coated 220 micron minim
Total height of pole top is 1200 mm, with a projection of 810 mm.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
The support junctions along the bracket are each made individually in a single casting of nodular cast iron or aluminum; curved bracket tube is prearranged for the passage of cables and threaded 3/4" GAS in the final part for light fixture attachment.
Fit for pole top mounting with poles diam. 60, 70, 89 mm.
Painted black anthracite or any other colore RAL requested.
Surface Protection powder coated 220 micron minim
Total height of pole top is 1200 mm, with a projection of 810 mm.
Specifications
| height | 1300 mm |
| Color | Black |
| Material | Acciaio e ghisa |
| arm reach | 810 mm |
| type | Singolo |
