Suitable support for suspended light fixtures.
Made in aluminum cast , and S235J UNI EN 10219-1 steel, hot dip galvanized according to UNI EN ISO 1461.
Screws in stainless steel.
Description

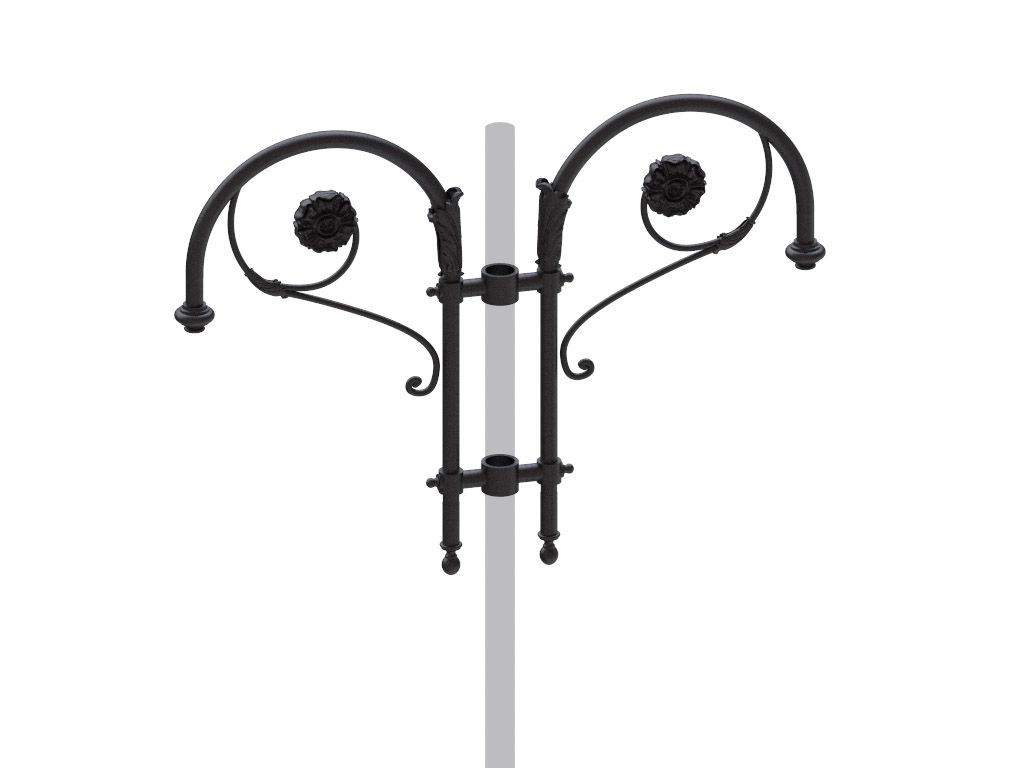

Aluminum Cast junction cast in a single piece, height 105 mm.
A ring in hot-galvanised steel for lower support of the suspension brackets.
t is secured to the supporting tube with two M8 grubs.
A ring in hot-galvanised steel for upper support of the suspension brackets.
he ring has four holes (B - Ø 1.8 cm) for the passage of power supply cable.
It is secured to the supporting tube with two M8 grubs.
Two suspension brackets, each height 130 cm, with a protrusion of 81 cm.
Structurally each bracket is composed of a tube in steel (Ø 4.2 cm), decorations in aluminum cast and support attachments in aluminum cast .
The brackets are arranged at 180° to each other and fixed to the support rings with four M8 screws.
At the end of each suspension bracket there is a connection in aluminum cast with internal thread G3/4’’ for attaching the light fixture.
The power cables pass inside each suspension brackets.
Dimensions and weight
Height 130 cm; width 85 cm.
Weight 42 kg.
Painting : Standard color is dark gray, type EUROCOMITALIA.
Surface Protection See details on the protection of materials. .
Items included UNI 5745 galvanized internal UNI EN 10219-1 steel core.
Assemblage See installation specifications.
Specifications
| height | 1300 mm |
| Color | Black |
| Material | Acciaio e ghisa |
| arm reach | 810 mm |
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
