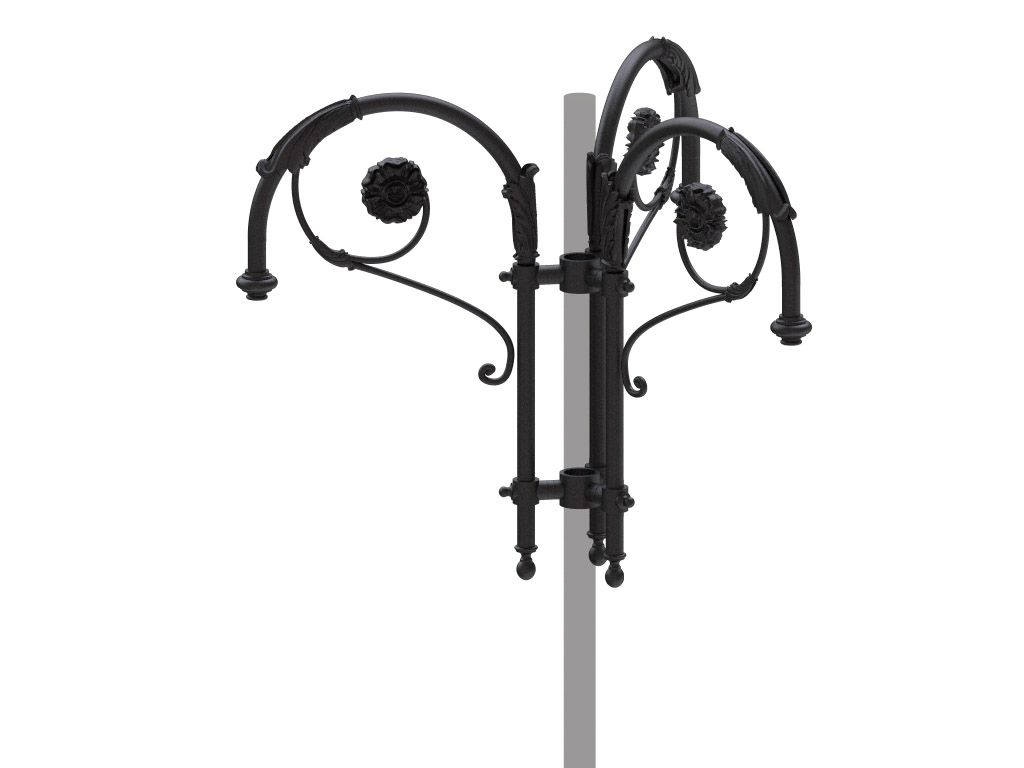

'Borromini' pole top with two curved double curl and flower decorated bracket
Single pole top like Borromini, with curl and tulip ornaments in aluminum or cast iron consisting of:
–Galvanized or cast iron tube, round-shaped curved and decorated with characteristic tulip elements as per drawing;
–at the base of the tube is a cast iron ornament in the shape of a pine cone;
–at the top is an adorned connection for ¾ GAS threaded tube lantern.
The pole top in held at the pole by ornamental hooks in aluminum or cast iron and is decorated in the center with acanthus designs and a big open flower. The pole top is predisposed for attachment on a 70, 60, 89 mm diameter pole depending on the costumer's request or on the type of pole on which the pastoral is to be installed.
Pole top measures at the base:
Width 810 mm, lenght 1300 mm.
Made with steel tube of 45 mm diameter, thickness 3 mm. Other measures and dimensions on costumer's request.
Painted in anthracite black or other RAL color on request.
Surface protection:
See specifications on material protection and painting
Specifications
| height | 1300 mm |
| Color | Black |
| Material | Acciaio e ghisa |
| arm reach | 810 mm |
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
