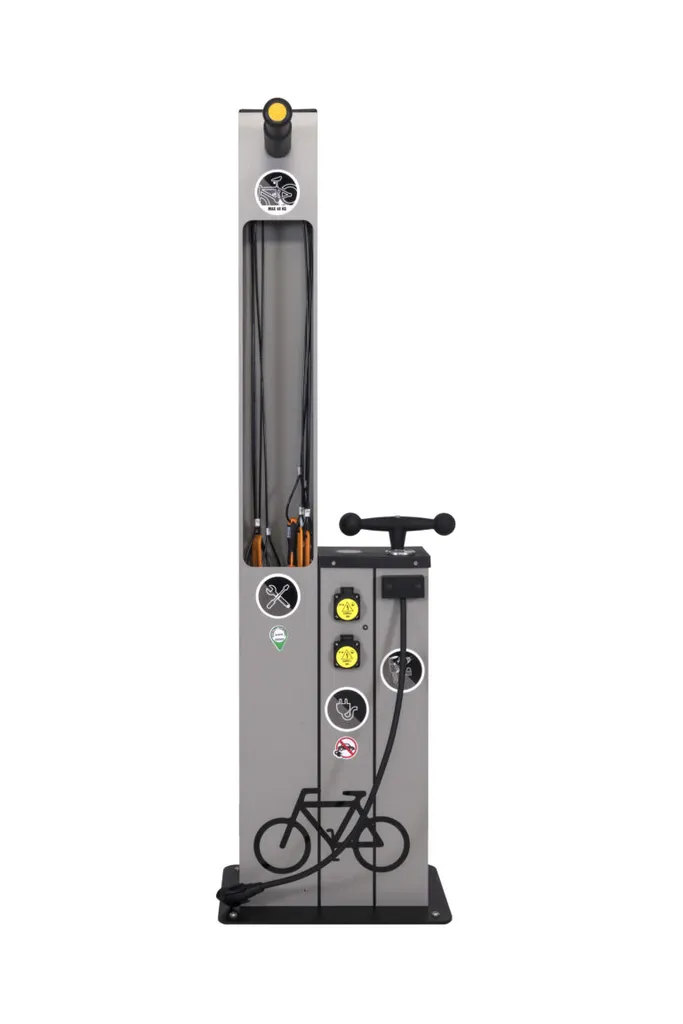

Self-service Bike Repair Station –is adapted for use in public spaces.
Its housing is made of galvanized or stainless steel with powder or thermoplastic coating.
The device in the E-BIKE version is mounted to the ground.
Sheet metal elements and the E-BIKE charging module are fastened with anti-theft screws – the bits for the screws will be handed over to the customer.
Its housing is made of galvanized or stainless steel with powder or thermoplastic coating.
The device in the E-BIKE version is mounted to the ground.
Sheet metal elements and the E-BIKE charging module are fastened with anti-theft screws – the bits for the screws will be handed over to the customer.
On the back of the device there is a module with 2 x sockets for charging electric bikes (E-BIKE), 2 x stainless steel holders for chargers and a metal strip covering the power cord coming from the base.
The E-BIKE charging module has a compact housing made of high-strength PC / ABS; it has additional RCBO (6A) protection located behind a protective, impact-resistant window. All external parts are made of stainless steel.
The sockets (250V) are made of polyamide (PA6) with nickel-plated contacts (IP54).
The E-BIKE charging module has a compact housing made of high-strength PC / ABS; it has additional RCBO (6A) protection located behind a protective, impact-resistant window. All external parts are made of stainless steel.
The sockets (250V) are made of polyamide (PA6) with nickel-plated contacts (IP54).
The tools are attached to the stainless steel ropes hanging inside the column of the station; the length of the ropes allows you to reach all bicycle components.
The rubber coating of the ropes prevents tools from tangling and protects the bicycle frame from scratching.
The station is equipped in a hand pump with an adapter for all valve types.
The construction of the station allows you to place the bicycle on the grip, so you can easily turn the crank while repairing the bike.
The rubber coating of the ropes prevents tools from tangling and protects the bicycle frame from scratching.
The station is equipped in a hand pump with an adapter for all valve types.
The construction of the station allows you to place the bicycle on the grip, so you can easily turn the crank while repairing the bike.
QR CODE placed on the front enables an immediate access to online publications containing manual repair.
The E-BIKE module complies with European standards:
Directive (RoHS) 2011/65 / EU and 2015/863
2014/35 / EU Low Voltage Directive
Electromagnetic Compatibility (EMC) Directive 2014/30 / EU
Used standards: EC / EN 61439-1; IEC / EN 61439-4
Dimensions:
150,6x44x30
Weight:
22 kg
Module:
2 x sockets (250V) for E-BIKE charging
Advertising area:
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
VIVA Products - Description
The VIVA SMART system is based on ZERO WIRE SYSTEM technology: no wiring required.
Simply place the product in an area exposed to sunlight, and the integrated photovoltaic panel will ensure self-sufficiency for all available services, including device charging via USB ports and wireless technology.
The VIVA™ series products were created with the aim of modernizing urban spaces through innovative technologies, geared towards the control and use of specific functionalities to meet the needs of contemporary citizens.
The VIVA™ series redefines the very concept of public space, transforming it not only into a place for rest and relaxation, but into a hub for gathering and interaction.
Depending on the model, the system allows you to:
- charge smart devices (tablets, smartphones) via USB ports
- charge compatible devices via integrated wireless technology
- connect to the Wi-Fi network
- consult real-time information on traffic, air quality, weather conditions, and much more
The VIVA™ series offers extensive customization possibilities.
The cross-functional skills of our team and our deep knowledge of materials and processing technologies allow us to tackle any custom project.
Through a cloud connection, the VIVA PORTAL software allows for centralized remote management of the entire network of stations, on any device and at any time.
A single platform to control and check the system status in real time, in a simple, efficient, and multi-user way:
- monitoring of battery charge status
- collection of weather and environmental data
- monitoring of device charge and discharge cycles
- predictive anomaly detection and error reporting system
