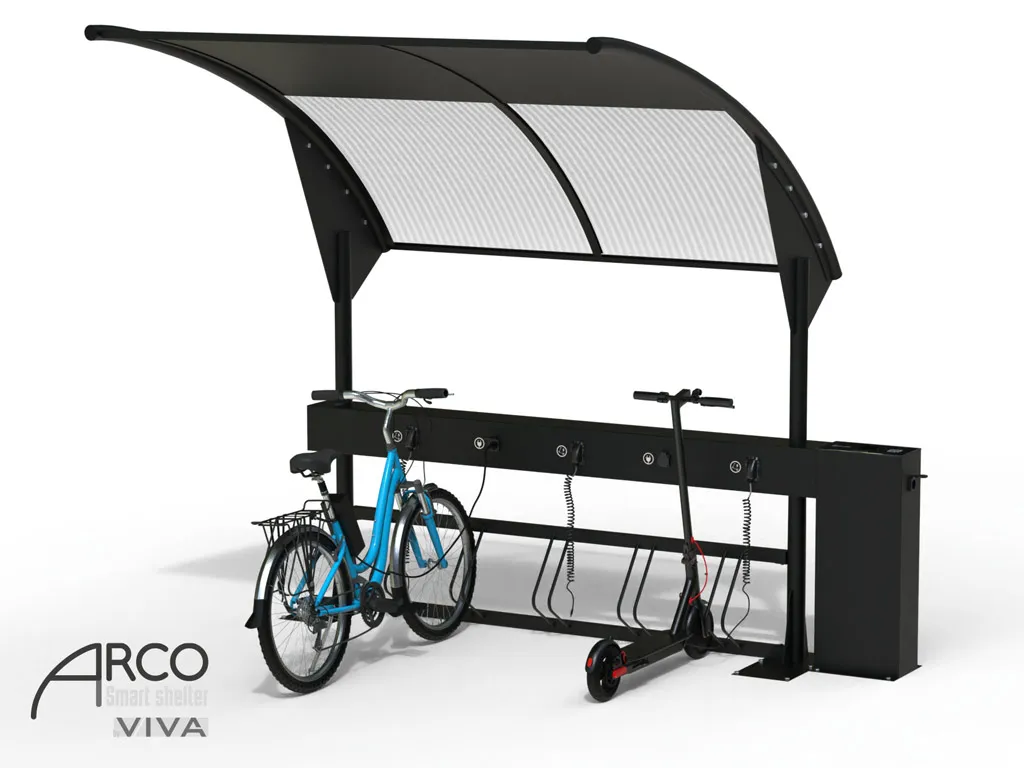

Arco Smart E-bike Shelter with Rain Protection and Solar-Powered Charging Station

Modern Arco SMART five-space shelter for e-bikes and scooters, equipped with a charging station fully powered by photovoltaics, and a roof made of cellular polycarbonate and PMMA.

Structure composed of:
Straight and arch-bent steel tubes (diameter 76 and 60 mm).
The roof is made of a double-protected, ribbed cellular polycarbonate panel, resistant to UV rays and reinforced by a steel frame on the lower part;
a transparent PMMA sheet on the upper part encases and protects the solar panels; the back of the roof features a channel for water drainage.

The front section is designed to accommodate a five-space electric bike or scooter rack module made of steel. Extending horizontally in the center of the shelter is the PLUG module, consisting of a 200 x 200 mm section tube, containing two protected 220V Schuko sockets and three 42/48V stations with various connectors for charging electric bikes and scooters.

Each PLUG module includes two Schuko sockets and three 42/48V charging modules for e-bikes or scooters. Users can conveniently park their e-bike or scooter while it charges. A side box contains the electronic equipment.

Technical Specifications:
2 x Schuko sockets with IP67 protection.
3 x multifunctional 42/48V charging stations with three types of connectors.
5 x bike or scooter racks.
Nominal power: 440W.
Nominal voltage: 230V.
Nominal frequency: 50Hz.
Socket type (category): flush-mount socket.
Protection type: IP67.
Storage capacity: 1.9 kWh.

Circuit Breaker:
1 x RCBO (Residual Current Circuit Breaker with Overcurrent Protection) Id 0.003 A.
Tripping time: instantaneous.
Nominal current: 25/22 A.
Compliant with standard: CEI EN 61008.
Indicator light: voltage presence.

Version Features:
Equipped with 2 USB ports mounted on the right side;
Cool white LED backlighting system;
IP65 system protection rating.

Fixing and Maintenance:
The feet are prepared for anchoring with M10 steel bolts. The smart module is removable and can be sent for maintenance without needing to dismantle the entire structure. The surfaces are duly protected by a 5P cycle and powder-coated. See material protection specifications. Registered design, registered smart technology.

ZERO WIRE SYSTEM means no wiring of any kind is required. Just place it in a sunny spot, and the self-powered shelter will provide all its services via its solar panel. The new ARCO shelter was created to modernize today's cities with innovative technologies for controlling and using specific functionalities, aimed at meeting the modern needs of citizens. New cities are defined by innovation and targeted services; thanks to its countless technological functions, the shelter becomes not only a place for relaxation but also a social hub, where a new way of thinking about the city can be conceived.

Ample room for customer customization. The diverse skills of our team and our knowledge of materials and processing technologies allow us to tackle any custom project. This shelter also qualifies as a product for an energy community, as it can feed the excess energy it produces back into the grid, in addition to powering its own services.

Unique Technical Features of this Version:
Photovoltaic module: 440W Monocrystalline.
Batteries: AGM type, 160Ah capacity.
USB charging: 2 ports 5W and 2.2W.
E-bike and scooter charging: 3 x 80W.
220V Schuko sockets.

Optional:
Art. 391381 Air Pollution sensor for monitoring environmental pollution.
Art. 391383 GPS position sensor.
Art. 391386 Custom RAL color painting upon request.
Art. 391388 Antibacterial UVC LED, also used to combat COVID-19 infection.
Art. 391398 Anti-vandalism presence sensor.
