Electric Charging Station for E-Scooters and E-Bikes

Name: Electric Charging Station for E-Scooters and E-Bikes
Brand: EurocomItalia S.r.l.
SKU: 311601
Availability: InStock

code 311601

Category: Smart city products, Urban mobility

Description

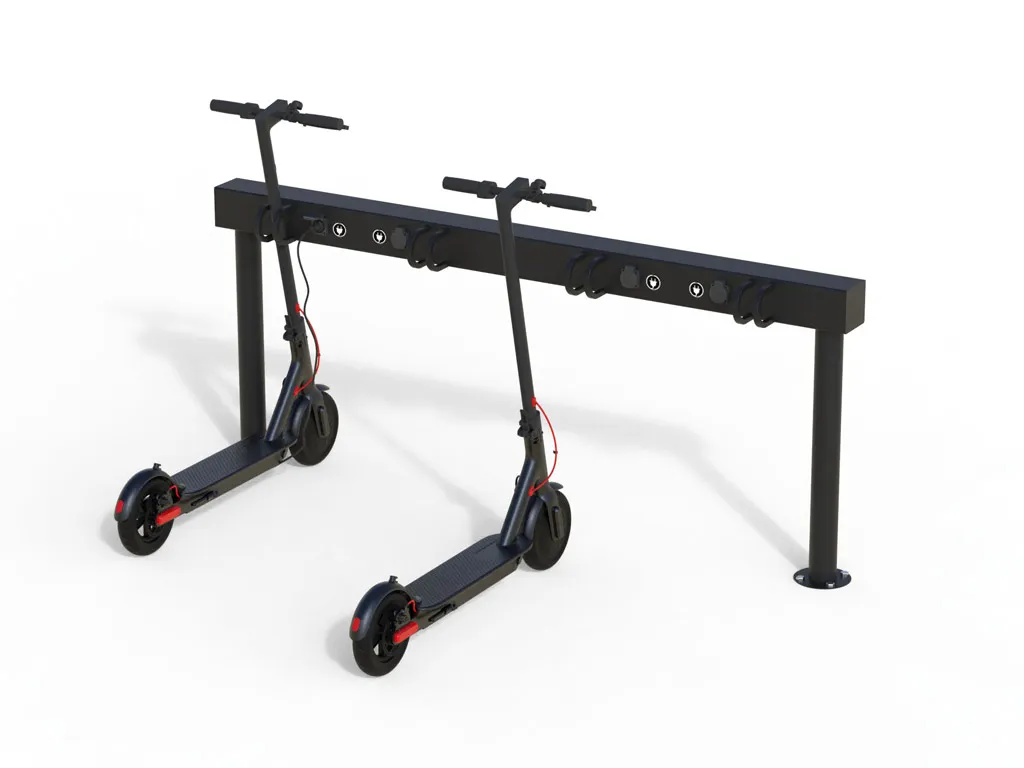

Four-bay electric charging station for E-Scooters or E-Bikes.
Structure Composition: Steel module for holding electric scooters or bicycles; the base module contains 4 bays. Uprights are made of Ø 76 mm tubular steel, prepared for bolt-down installation.
In the center is a PLUG Module made of 110 x 110 mm tubular steel, containing 4 SCHUKO sockets for charging e-scooters or e-bikes.
PLUG Module for e-bike charging station.
Each PLUG includes a Schuko socket for charging and is also equipped with padlock holders, allowing users to park and secure their vehicle comfortably while it charges.
Technical Specifications:
4x Schuko sockets with IP67 protection
4x holders suitable for securing with a padlock (padlocks not provided).
Rated current: 16 A
Rated voltage: 230 V
Rated frequency: 50Hz
Socket type (category): flush-mounted socket
Protection rating: IP67
CIRCUIT BREAKER:
1x Magnetothermic differential switch Id 0.003mA
Trip delay time: INSTANTANEOUS
Rated current: 25/22 A
Compliant with standard: CEI EN 61008
Indicator light: voltage presence
The module can be extended or placed side-by-side to create up to a maximum of 6 bays.
Installation and Maintenance:
The feet are designed for anchoring with M10 steel bolts.
The surfaces are expertly protected using a 5P cycle and are powder-coated.
Padlocks not included. We recommend using a "U-lock".

Specifications

height	85 cm
Width	20 cm
type	Per Monopattini ed e-bike

Power supply	Rete elettrica
capacity	4 posti

GENERAL INFORMATION ON SURFACE PROTECTION

All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.

Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.

Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.

The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.

Standard finish: antique black, Eurocomitalia type.

Any color from the RAL Classic chart is available upon request.

Detailed technical specifications are available in the dedicated documentation.

GENERAL ASSEMBLY INSTRUCTIONS

All products are accompanied by specific assembly instructions for the model provided.

Each product, based on its nature and intended use, requires dedicated installation methods.

For detailed technical specifications, please refer to the dedicated documentation.

SCREWS AND BOLTS

All screws, bolts, and other fastening accessories are generally supplied in stainless steel.

DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
