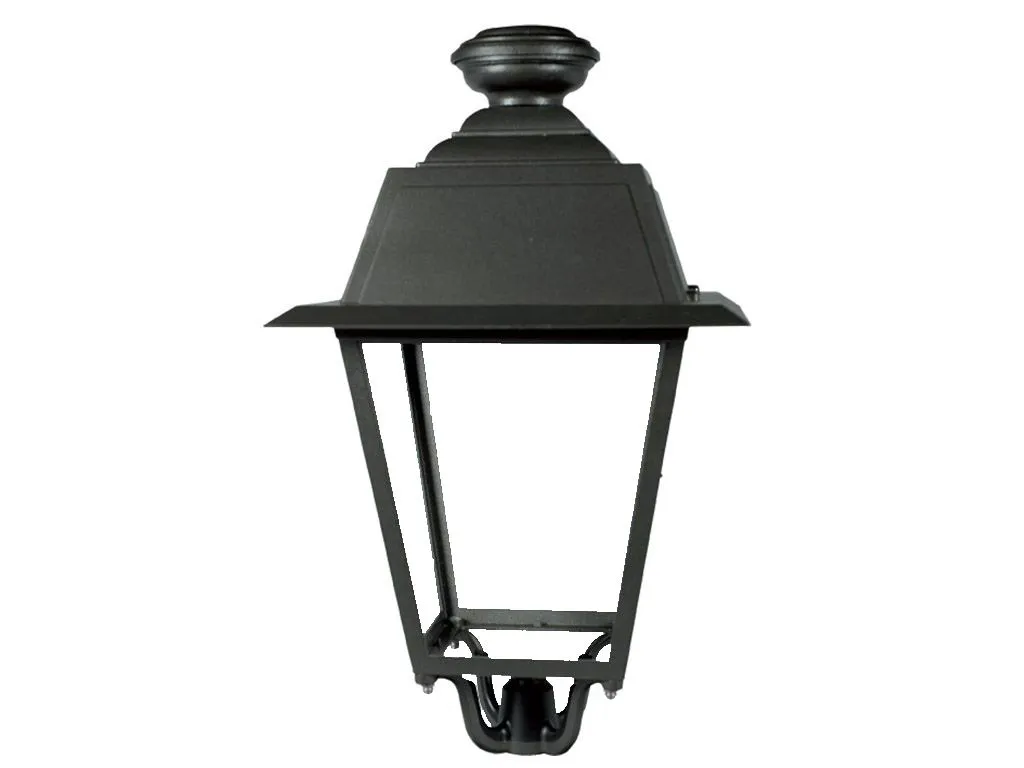

Die-cast aluminum lantern for lighting, square section, composed of:
- Spider-shaped support in die-cast aluminum;
- Brass cap nuts;
- Lower segment in die-cast aluminum, made in a single casting;
- Upper segment in die-cast aluminum, made in a single casting and complete with Class II BOX;
- Shield made of polymethyl methacrylate (PMMA);
- Asymmetrical distribution optic made by stamping on a high-purity aluminum sheet with a silicon-based anodizing treatment, fixed to the upper segment by a special mechanism;
- Ceramic lampholder with E27 or E40 socket and line disconnector; IP49 protection for the electrical equipment compartment, IP66 protection for the optical compartment, insulation class I and II;
- Chimney made of cast aluminum, hinged to the central frame.
External brass screws and stainless steel bolts.
Operation and Maintenance:
To access the electrical equipment, simply unscrew a single screw and rotate the upper segment.
The disconnector will automatically cut power to the lantern's wiring. To replace the lamp, the optic must be lifted.
During maintenance operations, no part or component of the lantern is separated from the structure.
Standard S.A.P. or H.G. wiring with power-factor-corrected Class II BOX.
CUT OFF or FULL CUT OFF reflector plate.
Surface Protection:
EUROCOMITALIA type antique black paint.
See painting specifications.
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
