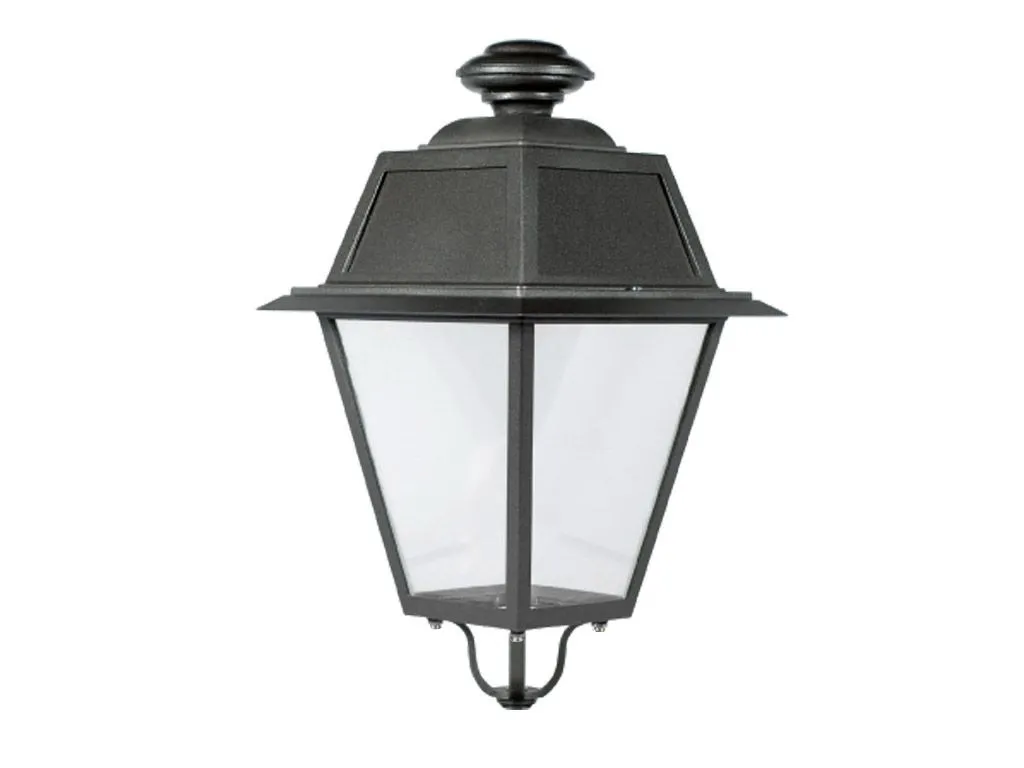

Aluminum lantern for a discharge lamp or E27 socket, for vertical mounting, composed of:
- Spider-shaped support;
- Brass cap nuts;
- Lower aluminum segment;
- Upper aluminum segment, complete with a Class II box;
- PMMA protector;
- Reflector plate, white polycarbonate closing cover;
- With a ceramic lamp holder for E27 or E40 sockets;
- Aluminum cap.
Protection rating for the electrical equipment compartment is IP49, and the protection rating for the optical compartment is IP66.
Operation and Maintenance:
To access the electrical equipment, simply unscrew two screws and lift the upper segment.
To replace the lamp, the reflector must be lifted.
During maintenance, no part or component of the lantern is detached from the main structure.
Wiring is prepared for S.A.P. or H.G. lamps, or E27 / E40 bulb sockets.
Finish:
EUROCOMITALIA-type antique black paint.
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
