Ottica LED con tecnologia led E-light 40w - 5376lm - 4k - ottica asimmetrica.
The plate consists of an aluminum support designed to fit the structure it needs to be adapted to.

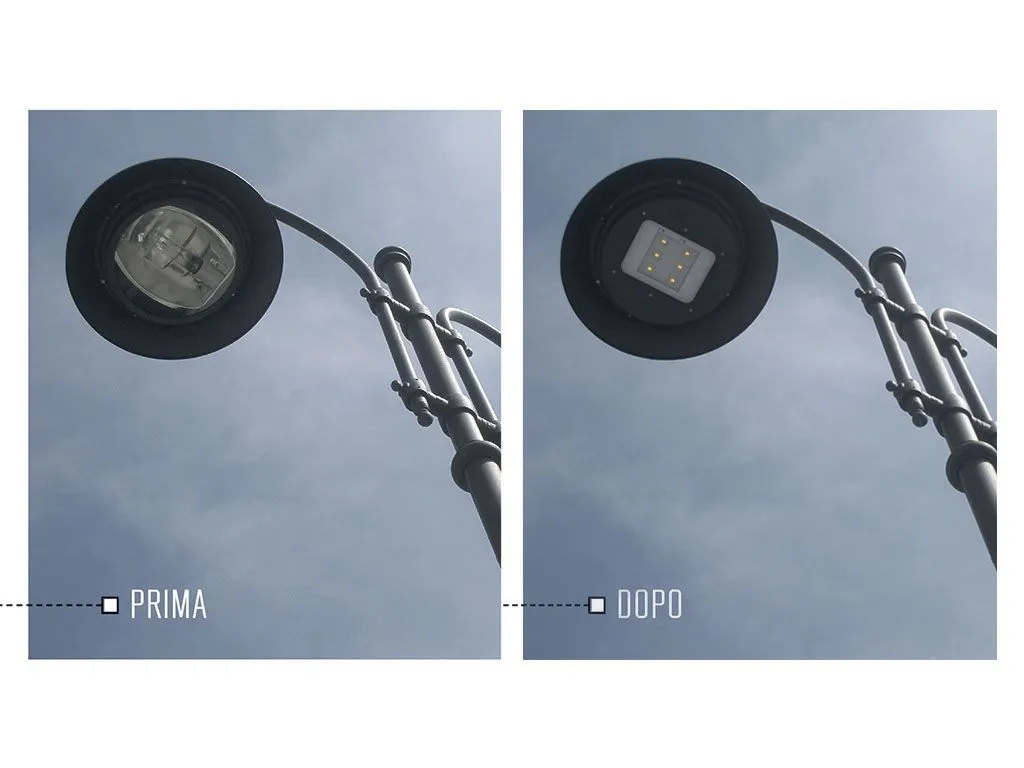

The kit fits perfectly into the existing fixture, preserving the historical and cultural value of the lantern.
At the same time, it allows you to take advantage of modern technology and benefit from the resulting energy savings.
Applying the kit does not require structural modifications to the lamp and can be done easily and quickly.
The S-Light Retrofit unit is mounted on the plate.
S-Light guarantees exceptional performance thanks to the use of premium components.
Protection against atmospheric discharges up to 4 kV, expandable to 10 kV.
Controllable Philips Xitanium power driver for power-line communication (optional) or WiFi (optional), and pre-programmable for point-to-point dimming.
Power consumption, color temperature, and wiring are available in various types (see attached table).
Optics:
Consists of a single die-cast aluminum block that ensures the dissipation of heat emitted by the LED diode.
Optics based on LEDiL IP67 molded lenses, UV resistant and IK10 impact resistant, with high-precision collimators to concentrate the light beam.
The circuit is coated with a special insulating powder that increases protection against electrostatic discharges.
The heat dissipation structure includes a watertight gasket and a flat tempered glass to protect the LED circuits. The entire LED engine is fixed to the lower body of the lamp with six M4 stainless steel screws.
This allows the LED engine to be easily removed for any maintenance operations.
Next to the LED engine, a support for the IP66 CL II driver is mounted, also fixed to the structure with stainless steel screws, making it easily removable and separate from the LED engine.
All electrical connections are placed around the lower structure, well-insulated, including two plugs: one to disconnect the LED engine from the driver, and one to disconnect the driver from the mains.
For each specific adaptation, the type of LED wiring and its light emission are calculated based on the street and specific requirements.
Decay curves, photometric curves, and all technical parameters necessary for design are available for this specific Retrofit.
The support for the LED engine is designed and built on a case-by-case basis, according to the fixture it will be mounted on and the needs of the designer and the end customer.
Specifications
| control | No |
| CRI | 70 |
| K | 4000 |
| lumen | 3885 |
| Optics | AR |
| light source | LED |
| lifespan h. | 80000 |
| watt | 26 |
