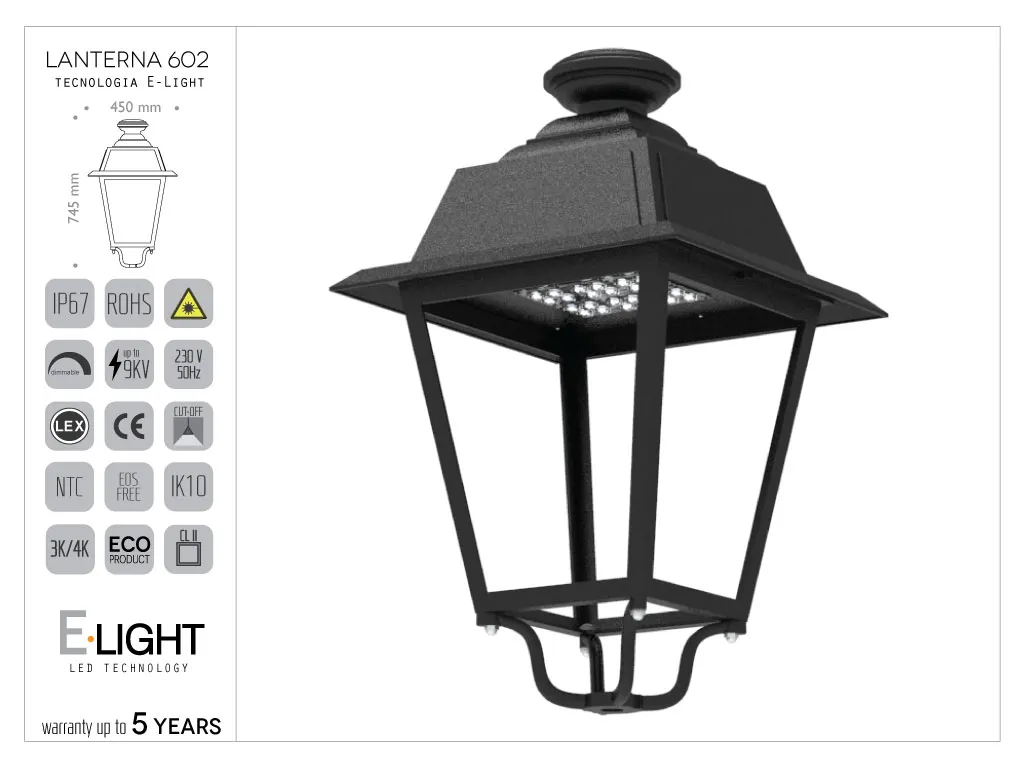

Artistic Square Die-Cast Aluminum Lantern with E-Light LED Technology

Basic 6 kV protection against atmospheric discharges.
Power driver with dimming and control capabilities.
Power consumption, color temperature, and wiring available in various configurations.

Structure consists of:
Body with shape, measurements, and moldings as shown in the drawing.
Fitting for post-top or suspended versions with a 3/4” threaded pipe, to be bolted to the support structure.
In the post-top version, the threaded pipe and the bolts at the top of the structure are concealed by an ornamental aluminum bushing.
The lower part consists of an aluminum housing where the LED engine is mounted.
The LED engine is secured to the structure with 4 STAINLESS steel screws.
IP65 LED compartment.

Optics:
Consists of a single aluminum block that guarantees heat dissipation from the LED diode.
Optics based on IP67 molded lenses, UV-resistant and IK10 impact-resistant, with high-precision collimators to focus the light beam.
The circuit is coated with a special insulating powder that increases protection against electrostatic discharges.
The IP67 optics with a watertight seal are mounted on the heat sink structure to protect the LED circuits.
The entire LED engine is fastened to the lower body of the lamp with six M4 stainless steel screws.
The LED engine is easily removable for any maintenance operations.
Next to the LED engine, a support for the power driver is mounted, also fastened to the structure with stainless steel screws, making the entire assembly easily removable and separate from the LED engine. All electrical connections are placed around the lower structure and are well-insulated, including the plugs: one to disconnect the LED engine from the driver and one to disconnect the driver from the power supply.
