L-Bench Smart Bench

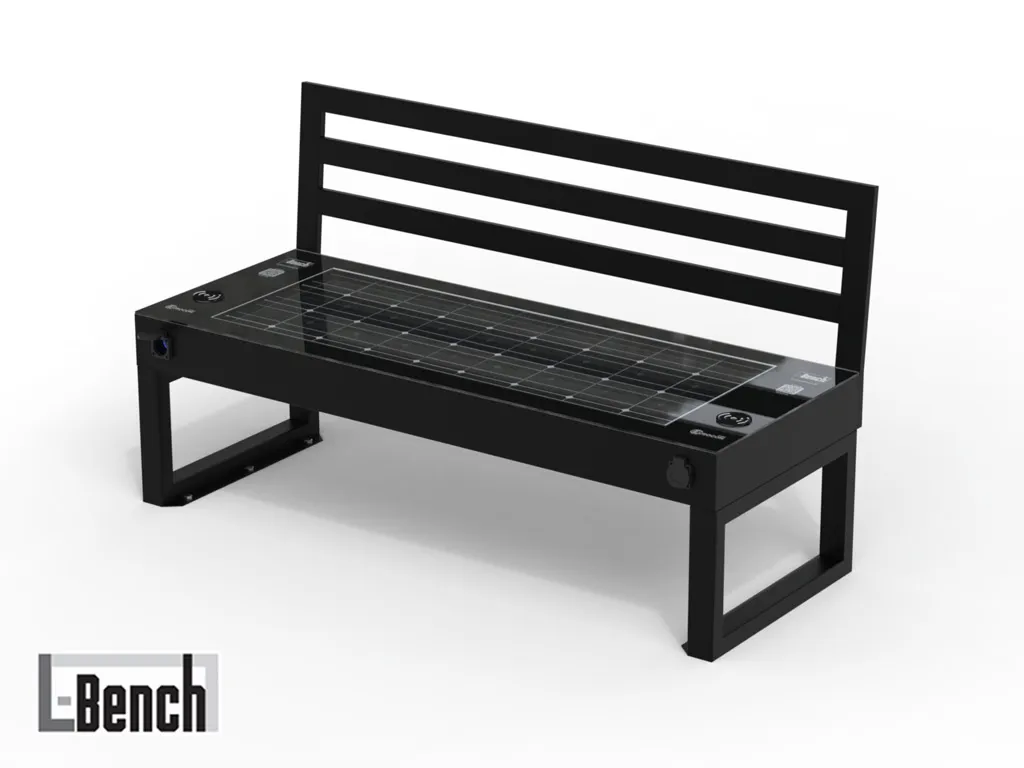

L-Bench Solar-Powered Smart Bench with Wireless & USB Charging, 1.5m, Black

code 311402
color
category:
10
20W QI Wireless Charger for VIVA SMART Benches
code 391392 x 220W QI Wireless Charger for VIVA SMART Benches
Standard USB: Dual USB-A QC3.0 20W Smart Device Charger
code 391382 x 2Standard USB: Dual USB-A QC3.0 20W Smart Device Charger
20W USB-C Charger: 1x USB-C + Dual USB-A QC3.0 for Smart Devices
code 391402 x 220W USB-C Charger: 1x USB-C + Dual USB-A QC3.0 for Smart Devices
Neutral White 4K LED System for VIVA SMART Products
code 391375 x 1Neutral White 4K LED System for VIVA SMART Products
RGBW LED System for VIVA SMART Products
code 391377 x 1RGBW LED System for VIVA SMART Products
VIVA BOARD CONTROL - VIVA SMART Control Board
code 391380 x 1VIVA BOARD CONTROL - VIVA SMART Control Board
Audio Interaction System (AIS) with Keypad
code 391405 x 1Audio Interaction System (AIS) with Keypad
HOTSPOT Module with included Wi-Fi Modem for network connection
code 391397 x 1HOTSPOT Module with included Wi-Fi Modem for network connection
Mains Backup Module for VIVA SMART Series Benches
code 391391 x 1Mains Backup Module for VIVA SMART Series Benches
Bluetooth Audio System with Amplified Speaker for Public Spaces
code 391406 x 1Bluetooth Audio System with Amplified Speaker for Public Spaces
select color

downloads

L-bench solar-powered bench for device charging, featuring a 1.5 m seat, WIRELESS and USB charging, in black.
General technical features:
2 shaped side supports made of 60 x 40 mm tubular sections;
1 ergonomic backrest made of 60 x 20 mm steel profiles.
Seat made from a single 4 mm thick polycarbonate sheet, housed in a steel box containing dedicated perpendicular supports;
SMART charging module featuring MPPT technology with a photovoltaic panel and batteries embedded in the bench's structure;
Version features:
Equipped with 4 USB ports for charging devices up to 2A and 2 wireless chargers with QI technology up to 20W built into the structure. The bench is supplied as an assembly kit (smart box + 2 legs).
Installation and maintenance:
The legs are designed for anchoring with M10 steel bolts.
The surfaces are duly protected by a 5P cycle and are powder-coated.
Unique technical features of this version:
Photovoltaic module: 100W Monocrystalline.
Batteries: AGM Type / Capacity: up to 0.72 kWh.
USB Charging: 2 x 5W ports and 2 x 2.2W ports.
Wireless Charging: 20W QI Power / Over 80% efficiency.


Included addons
391375  Neutral White 4K LED System for VIVA SMART Products
391382  Standard USB: Dual USB-A QC3.0 20W Smart Device Charger
391392  20W QI Wireless Charger for VIVA SMART Benches

Optional addons
391377  RGBW LED System for VIVA SMART Products
391380  VIVA BOARD CONTROL - VIVA SMART Control Board
391391  Mains Backup Module for VIVA SMART Series Benches
391397  HOTSPOT Module with included Wi-Fi Modem for network connection
391402  20W USB-C Charger: 1x USB-C + Dual USB-A QC3.0 for Smart Devices
391405  Audio Interaction System (AIS) with Keypad
391406  Bluetooth Audio System with Amplified Speaker for Public Spaces
391427  Recycled plastic bench for L-BENCH

Specifications
AccessoriesUSB, Wireless Charger
Power supplyFotovoltaico
height44 cm
MaterialAcciaio + Policarbonato
MountingTasselli
assembledNo
length1,5 mt
ColorBianco


Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.


Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.


Screw protection
SCREWS AND BOLTS

All screws, bolts, and other fastening accessories are generally supplied in stainless steel.



DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
