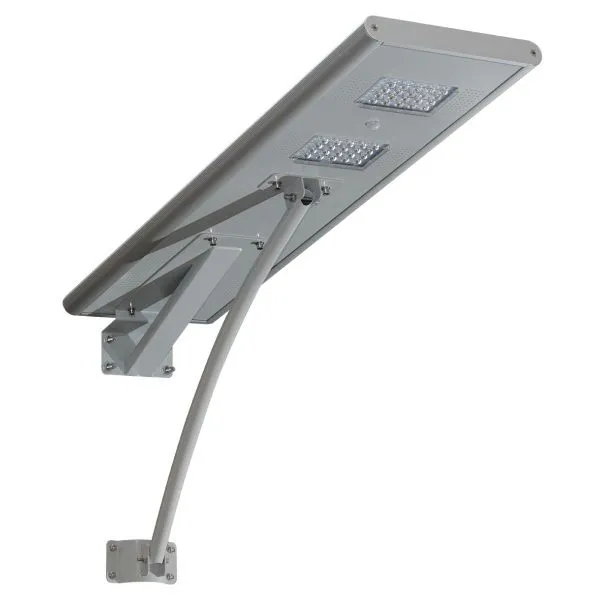

SOLARIS24 60W Solar Street Light with Photovoltaic Panel | Energy-Saving Asymmetric Optics

Our all-in-one solar street light.

Sold as a complete system.

This compact, unique, and easy-to-install unit can be mounted on a pole.

It automatically turns on at dusk at 33% brightness and switches to 100% when it detects motion.

It consists of a solar panel installed on the top of the fixture, with a lithium battery inside and a set of powerful white COB LEDs on the bottom of the unit.

Also on the bottom is a motion sensor.

When it detects activity, the light switches to maximum brightness mode and returns to ambient mode (about 1/3 of the power) when the area is clear of movement.

Thanks to its compact design, this all-in-one lamp is also a great choice for windy locations.

The large version with an output of 3200/3600 lumens makes it the most powerful motion sensor LED light on the market.

It is suitable for parks, gardens, courtyards, squares, and similar areas.

What an excellent LED solar street light!

Performance

All-in-one design.

Protection rating: IP65

Ideal charging temperature: 0°C to +60°C

Ideal discharging temperature: -20°C to +60°C

Ideal storage temperature: 0°C to +45°C

Includes anti-tamper (anti-theft) stainless steel hardware for pole mounting

Includes tool for installing/removing the anti-theft bolts

Product Features

Integrated passive infrared motion sensor in all models

Detection distance varies based on factors like installation height and ambient temperature

All lights can provide illumination in ambient mode for up to 24 hours, or up to 12 hours in full brightness mode

No light pollution

Operating Modes

The solar panel converts sunlight into electricity and stores it in the Li-Fe battery via the controller

The COB LED spotlight automatically turns on at night thanks to the light sensor and provides illumination for various areas

When no motion is detected, the light operates in energy-saving mode (approx. 30% power)

When the PIR sensor detects motion, it switches to full power mode for about 30 seconds, then returns to saving mode

It is also possible to pre-program the lighting phases via a timer, without using the motion sensor:

First hour: 30% illumination

Next 4 hours: 100% illumination

Remaining hours (before dawn): 30% illumination

Solar Street Light Installation

Install the fuse (if present) before use (remove any film under the fuse)

Use the provided tool to tighten the security bolts

Orient the solar panel as much as possible towards the equator (North in the Southern Hemisphere, South in the Northern Hemisphere) to maximize sun exposure and thus charging

Surrounding trees must not obstruct the light; prune them if necessary

Avoid tall or large structures in front of the lamp that could block sunlight

Technical Specifications

Solar Panel (Max Power): 18V / 50W (high-efficiency imported silicon solar cells)

Battery Type: Lithium battery (5-year lifespan)

Battery Capacity: 12V – 22AH

Lighting Angle: 90° x 126°

Charging Time (in sun): 6-7 hours (with adequate sun exposure)

Discharge Time: over 20 hours (saving mode)

Working Temperature: -20°C ~ +60°C

Installation Height: 5-6 m

Distance between lamps: 15-25 m

Lamp Material: Aluminum alloy

Certifications: ISO / CE / ROHS / IP65
