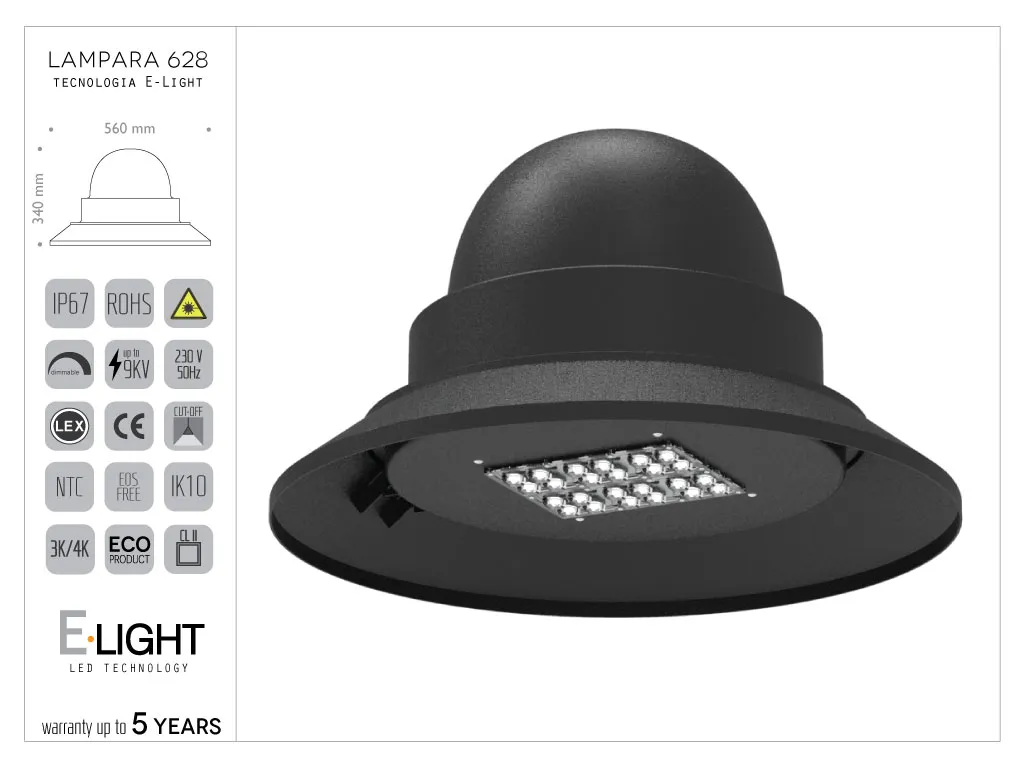

Lampara 628 Aluminum Luminaire with E-Light LED Technology

Optics with E-light technology.



Protection against atmospheric discharges up to 9 kV.

Power driver with dimming and control capabilities as per the technical data sheet.



Power consumption, color temperature, and wiring available in various options.





Structure composed of:

A central body with shape, dimensions, and moldings as shown in the drawing. Connection via a 3/4” threaded pipe, to be bolted to the support structure with a sealing gasket ring for a watertight lock.

The threaded pipe and the bolts at the top of the structure are concealed by an ornamental aluminum sleeve. The lower part consists of an aluminum ring onto which the LED engine is mounted. The ring is hinged to the structure and is secured with a stainless steel screw. The ring is fitted with a neoprene gasket that guarantees the product a total protection rating of IP65.



Optics:

Consists of a single aluminum block that ensures the dissipation of heat emitted by the LED diode.

Optics based on IP67 molded lenses, resistant to UV rays and IK10 impacts, with high-precision collimators to concentrate the light beam.

The circuit is coated with a special insulating powder that increases protection against electrostatic discharges.

The IP67 optics are mounted on the heat sink structure with a watertight gasket to protect the LED circuits.

The entire LED engine is fastened to the lower body of the luminaire with six M4 stainless steel screws.

This design allows the LED engine to be easily removed for any maintenance operations.

Next to the LED engine, a support for the IP66 CL II driver is mounted, also fixed to the structure with stainless steel screws, making it easily removable and separate from the LED engine.

All electrical connections are placed around the lower structure, well-insulated, including two plugs: one to disconnect the LED engine from the driver, and one to disconnect the driver from the power supply.
