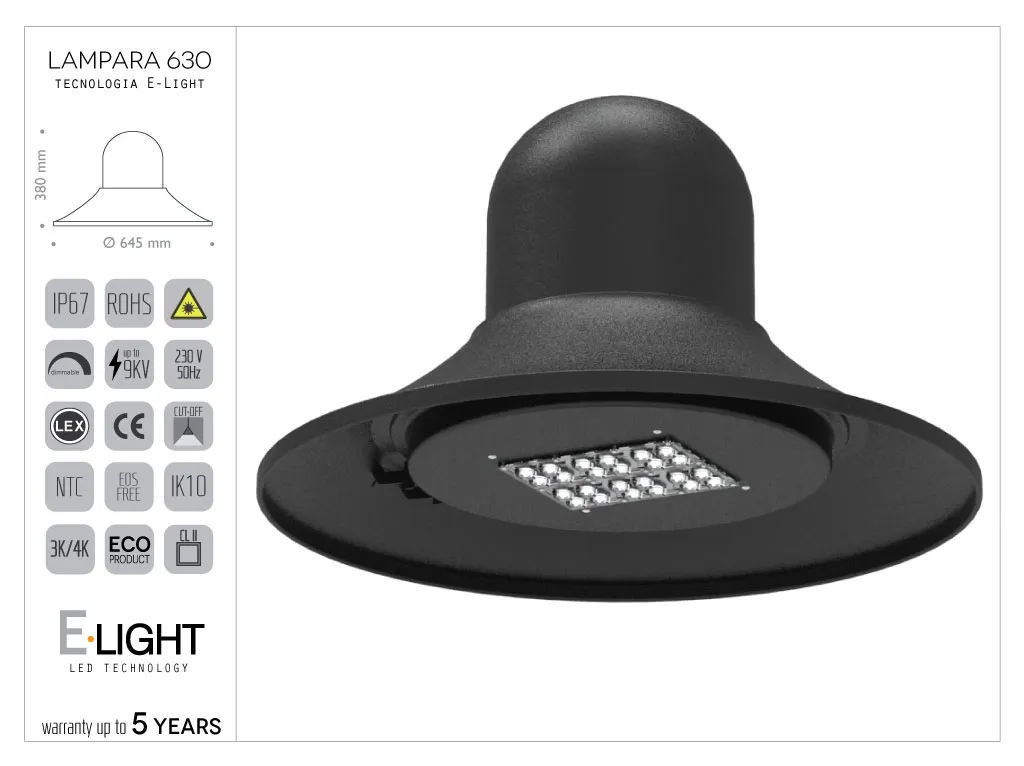

Ottica LED con tecnologia led E-light 12w - 1557lm - 3k - ottica ellittica.
Surface protection
Assembly instructions
Screw protection
SCREWS AND BOLTS
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
Optics with E-light technology.
Basic 6 kV protection against atmospheric discharges.
Power driver with dimming and control capabilities. .
Power consumption, color temperature, and wiring available in various types.
Structure composed of:
Central body with shape, measurements, and moldings as shown in the drawing.
Connection with a 3/4” threaded pipe, to be bolted to the support structure with a sealing gasket for a watertight lock.
The threaded pipe and the bolts at the top of the structure are concealed by an ornamental aluminum bushing.
The lower part consists of an aluminum ring on which the LED engine is mounted.
The ring is hinged to the structure and is closed with a stainless steel screw.
The ring is fitted with a neoprene gasket that guarantees the product a total protection rating of IP65.
Optics:
Made of a single aluminum block that ensures the dissipation of heat emitted by the LED diode.
Optics based on IP67 molded lenses, resistant to UV rays and IK10 impacts, with high-precision collimators to concentrate the light beam.
The circuit is coated with a special insulating powder that increases protection against electrostatic discharges.
The IP67 optics are mounted on the heat sink structure with a watertight gasket to protect the LED circuits.
The entire LED engine is fixed to the lower body of the lantern with six M4 stainless steel screws.
The LED engine is easily removable for any maintenance operations.
Next to the LED engine, a support for the power driver is mounted, also fixed to the structure with stainless steel screws, making the entire unit easily removable and separate from the LED engine.Around the lower structure, well-insulated, are all the electrical connections, including plugs—one to disconnect the LED engine from the driver and one to disconnect the driver from the mains.
Painted in EUROCOMITALIA ANTIQUE finish or other RAL color upon request.
Specifications
| control | No |
| CRI | 70 |
| K | 3000 |
| lumen | 1557 |
| Optics | AE |
| light source | LED |
| lifespan h. | 90000 |
| watt | 12 |
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
