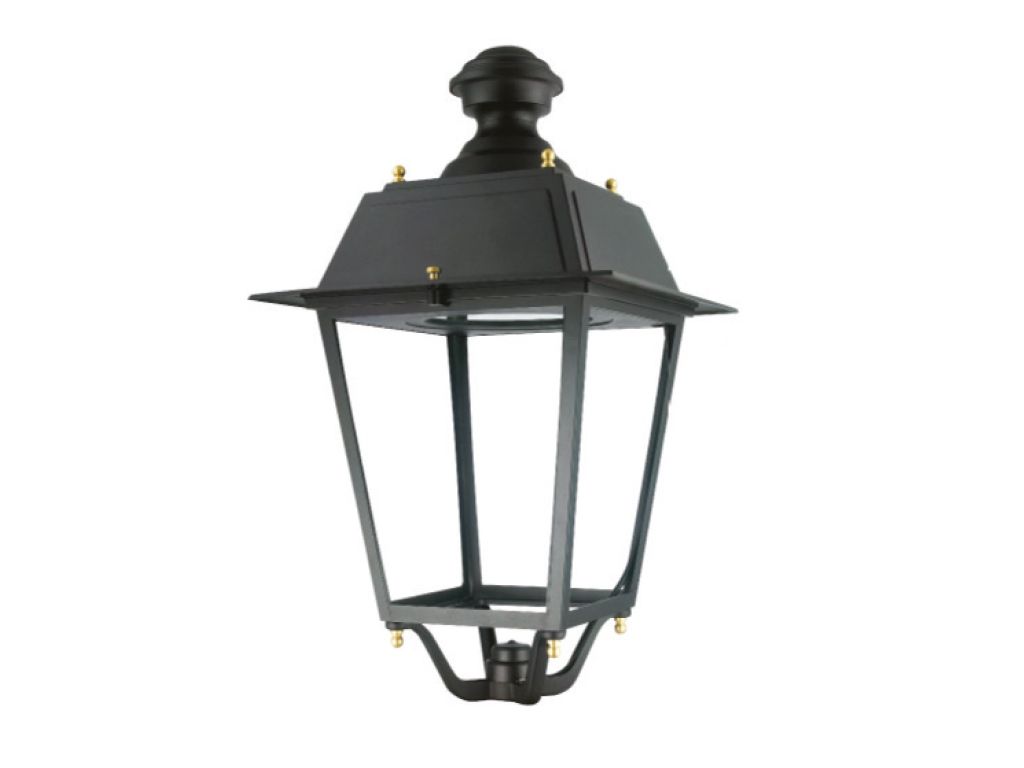

Artistic aluminium LED Luminaire model ANTIQUE UP TO 130W 12.340 lumen .
In compliance with EN 60598-1; EN 60598-2-3; EN 62031;
EN 55015 EMC; EN 61547 EMC; EN 62471
Upper and Bottom frame made in aluminum with threaded coupling G 3/4" for fixing.
Gasket between the upper and bottom frames.
Electrical characteristics , Voltage Frequency P. Rating IP CL II CL I Operative Temp.
120-277V 50-60 Hz 66 > 0.9 -30°C...+40°C
Suitable for suspended installation with a tilting frame to access optical and gear compartment.
Electrical components on a removable plate.
Automatic disconnector when opening.
Source: LED Performance
Programmable electronic power supply for LED module.
LED module UP TO 130W 1.2340 lumen 3000 or 4000K .
Terminals for wires with a max. section of 2,5 mm2
Separate electronic driver from LED module, individually replaceable.
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
