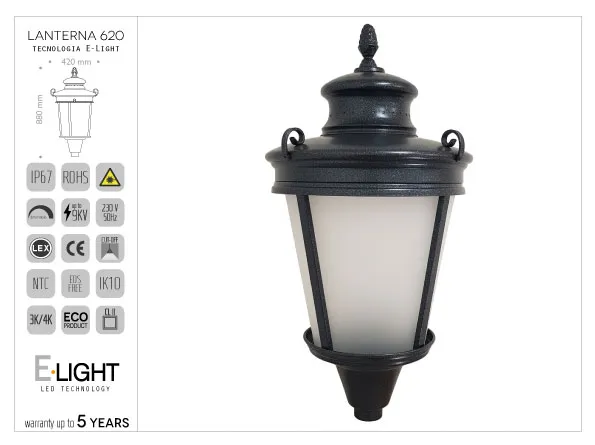

Pole-mounted aluminum lantern with LED optics.
Optics based on E-light technology with wiring and control options as per the attached table.
Surge protection up to 9 kV.
Power driver with dimming and control options as per the attached table.
Power consumption, color temperature, and wiring available in various types (see attached table).
Structure composed of:
Body with shape, measurements, and moldings as shown in the drawing.
Lower aluminum segment, for opening the lantern to perform maintenance operations.
The lower part consists of an aluminum compartment on which the LED engine is mounted.
The compartment is hinged to the structure and fitted with a neoprene gasket that guarantees the product a total IP65 protection rating.
In the lamp-only version, the upper body is fixed to the lower body by a hinge and bolt.
Opal polycarbonate support and aluminum cage.
Ornamental aluminum cup on the lower part.
Optics for the LED version:
consisting of a single aluminum block that ensures the dissipation of heat emitted by the LED diode.
Optics based on IP67 molded lenses, resistant to UV rays and IK10 impacts, with high-precision collimators to concentrate the light beam.
The circuit is coated with a special insulating powder that increases protection against electrostatic discharges.
IP67 optics with a watertight gasket are mounted on the heat dissipation structure to protect the LED circuits.
The entire LED engine is fixed to the lower body of the lamp with six M4 stainless steel screws.
This makes the LED engine easily removable for any maintenance operations.
Next to the LED engine, a support for the IP66 CL II driver is mounted, also fixed to the structure with stainless steel screws, making it easily removable and separate from the LED engine.
All electrical connections are placed around the lower structure, well-insulated, including two connectors: one to disconnect the LED engine from the driver, and one to disconnect the driver from the mains.
| control | No |
| CRI | 70 |
| K | 4000 |
| lumen | 5645 |
| Optics | AR |
| light source | LED |
| lifespan h. | 70000 |
| watt | 40 |
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
