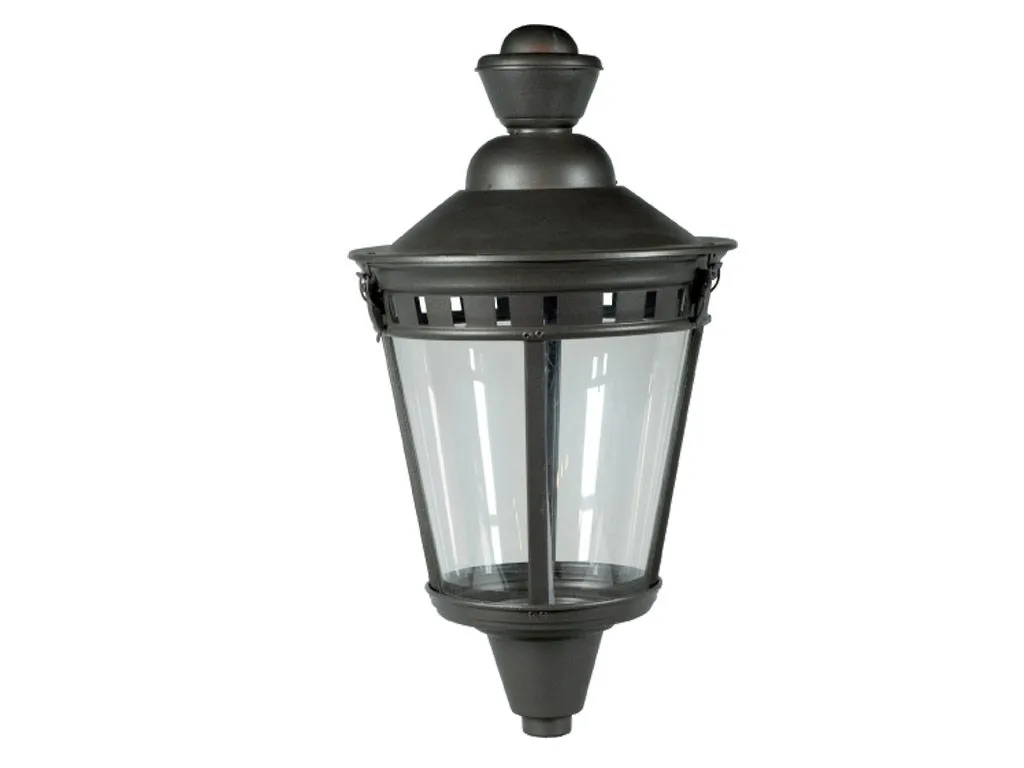

Medium Campidoglio-Style Aluminum Sheet Lantern

Aluminum sheet lantern, consisting of:

- body made of aluminum sheet in the dimensions shown;

- reflector plate for CUT OFF optics wiring. The plate is secured to the body with nuts, featuring a hatch for opening the compartment containing the electrical components and the lamp;

- ENEC-marked electrical unit equipped with a capacitor, ignitor, and ballast for HPS (High-Pressure Sodium) or MV (Mercury Vapor) lamp ignition, housed within the upper support;

- steel tube with a 3/4 GAS connection, which screws directly onto the final support.

Protection rating for the electrical equipment compartment: IP49.

Protection rating for the optical compartment: IP66.

Operation and Maintenance:

The electrical equipment is housed in the upper body.

To access the electrical equipment, simply unscrew the nut next to the glass.

To replace the lamp, follow the same procedure.

Standard HPS or MV wiring with a power-factor-corrected Class II BOX.

Surface Protection:

EUROCOMITALIA-type antiqued black paint.
