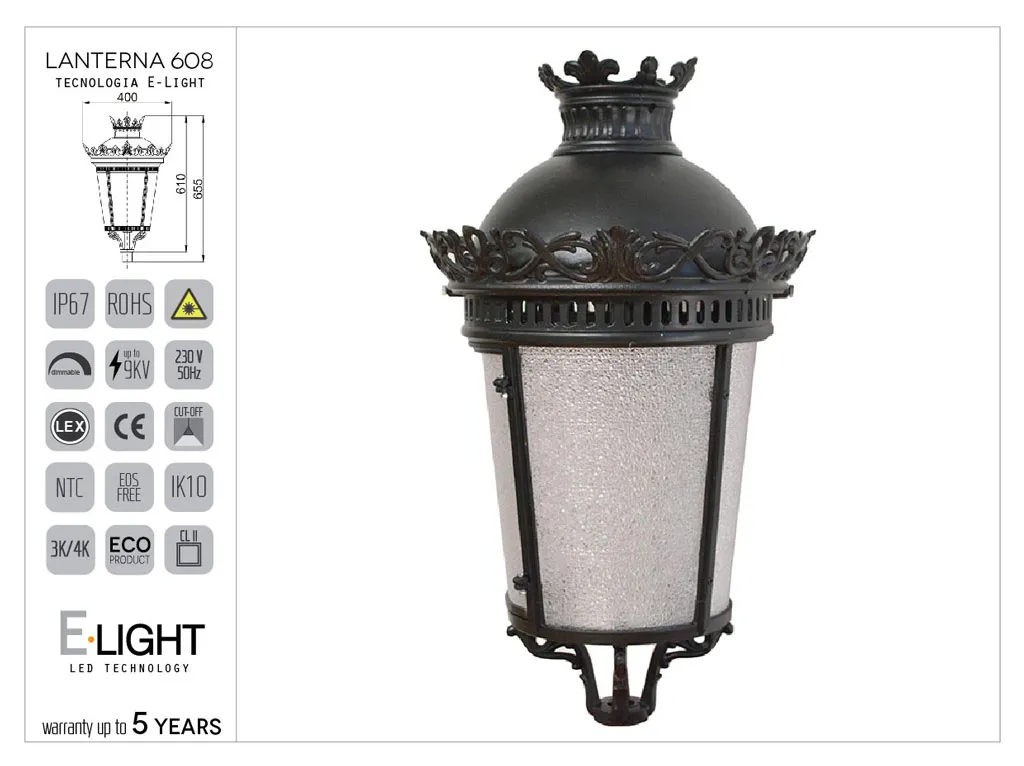

Large imperial-style artistic lantern with ornamental aluminum friezes.
Basic optics composed of 12 or 24 chips.
Basic 6 kV surge protection against atmospheric discharges.
Power driver with dimming and control capabilities.
Power consumption, color temperature, and wiring available in various configurations.
Structure composed of:
Body with shape, measurements, and moldings as shown in the drawing.
- Upper part made of drawn aluminum sheets, adorned with cast aluminum friezes;
- Central part with an aluminum frame.
- Lower part with a spider bracket for pole-top mounting.
Connection for post-top or suspended version with a 3/4” threaded pipe, to be bolted to the support structure.
In the post-top version, the threaded pipe and the bolts at the top of the structure are concealed by an ornamental aluminum sleeve.
The lower part consists of an aluminum compartment where the LED engine is mounted.
The LED engine is secured to the structure by 4 stainless steel screws.
IP65 LED compartment.
Optics:
Consists of a single aluminum block that ensures the dissipation of heat emitted by the LED diode.
Optics based on IP67 molded lenses, resistant to UV rays and IK10 impacts, with high-precision collimators to concentrate the light beam.
The circuit is coated with a special insulating powder that increases protection against electrostatic discharges.
The IP67 optics with a watertight gasket are mounted on the heat sink structure to protect the LED circuits.
The entire LED engine is fixed to the lower body of the lamp with six M4 stainless steel screws.
The LED engine is easily removable for any maintenance operations.
Next to the LED engine, a support for the power driver is mounted, also fixed to the structure with stainless steel screws, making the entire assembly easily removable and separate from the LED engine. All electrical connections are placed around the lower structure, well-insulated, including the plugs—one to disconnect the LED engine from the driver and one to disconnect the driver from the mains supply.
Painted in ANTIQUE EUROCOMITALIA color or other RAL color upon request.
| control | No |
| CRI | 70 |
| K | 3000 |
| lumen | 4838 |
| Optics | AS |
| light source | LED |
| lifespan h. | 70000 |
| watt | 40 |
