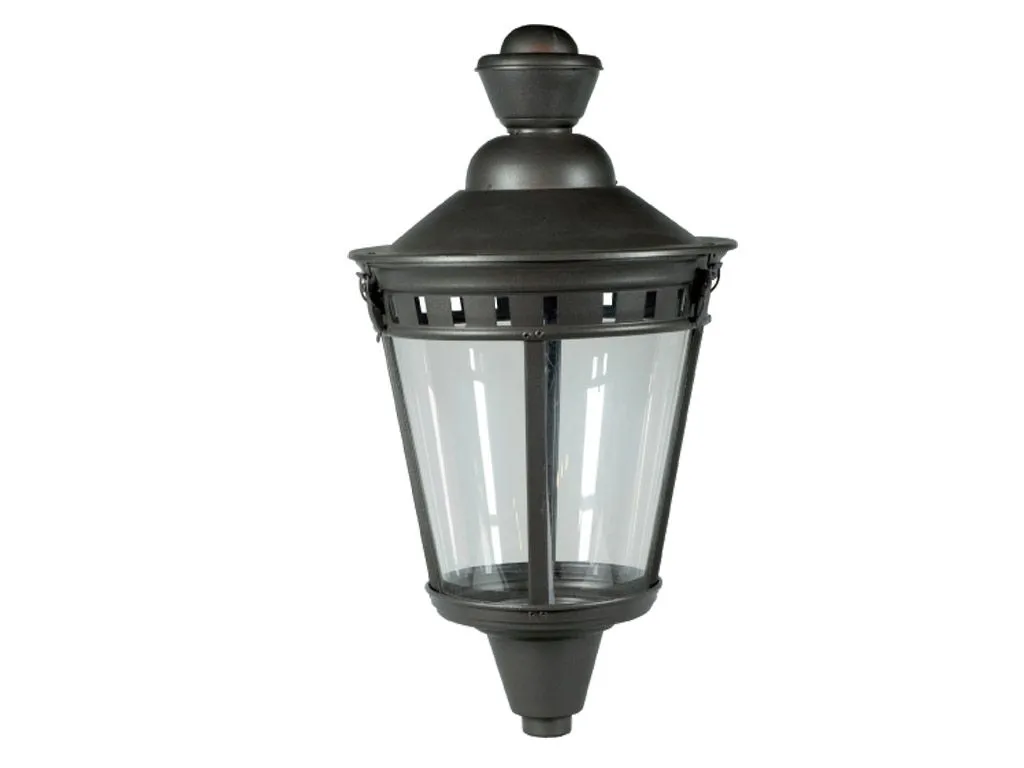

Aluminum sheet lantern, consisting of:
- body made of aluminum sheet in the dimensions shown;
- reflector plate for CUT OFF optics wiring. The plate is secured to the body with nuts, featuring a hatch for opening the compartment containing the electrical components and the lamp;
- ENEC-marked electrical unit equipped with a capacitor, ignitor, and ballast for HPS (High-Pressure Sodium) or MV (Mercury Vapor) lamp ignition, housed within the upper support;
- steel tube with a 3/4 GAS connection, which screws directly onto the final support.
Protection rating for the electrical equipment compartment: IP49.
Protection rating for the optical compartment: IP66.
Operation and Maintenance:
The electrical equipment is housed in the upper body.
To access the electrical equipment, simply unscrew the nut next to the glass.
To replace the lamp, follow the same procedure.
Standard HPS or MV wiring with a power-factor-corrected Class II BOX.
Surface Protection:
EUROCOMITALIA-type antiqued black paint.
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
