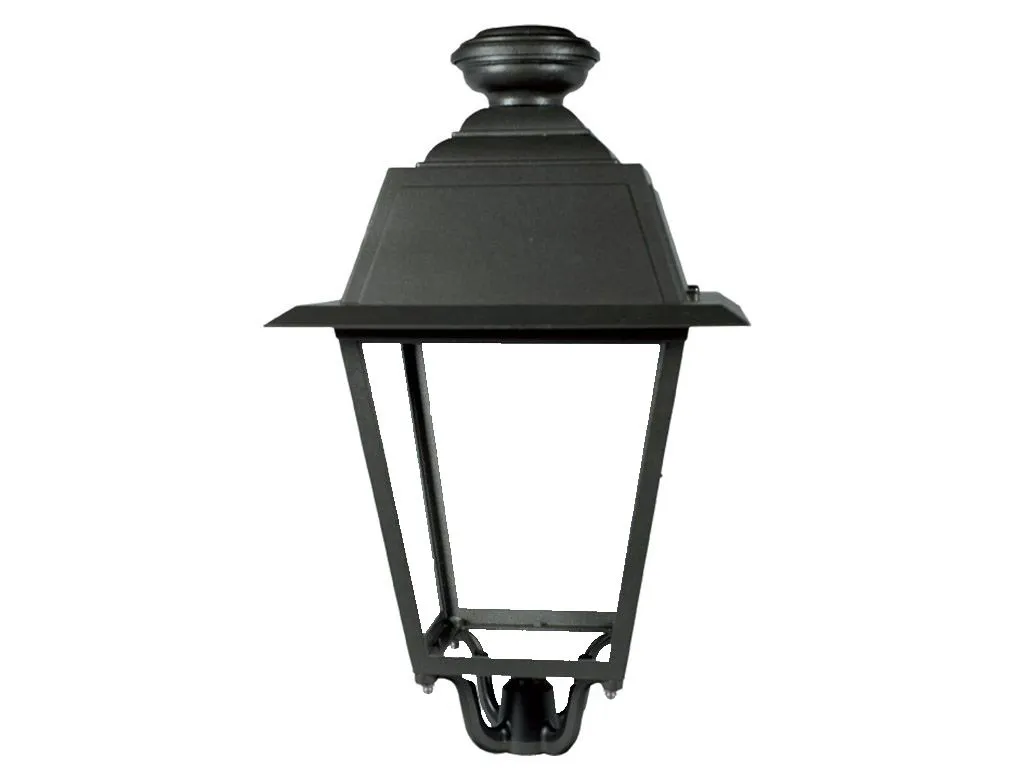

Large Classic Square Die-Cast Aluminum Lantern

Die-cast aluminum lantern for lighting, square section, composed of:

- Spider-shaped support in die-cast aluminum;

- Brass cap nuts;

- Lower segment in die-cast aluminum, made in a single casting;

- Upper segment in die-cast aluminum, made in a single casting and complete with Class II BOX;

- Shield made of polymethyl methacrylate (PMMA);

- Asymmetrical distribution optic made by stamping on a high-purity aluminum sheet with a silicon-based anodizing treatment, fixed to the upper segment by a special mechanism;

- Ceramic lampholder with E27 or E40 socket and line disconnector; IP49 protection for the electrical equipment compartment, IP66 protection for the optical compartment, insulation class I and II;

- Chimney made of cast aluminum, hinged to the central frame.

External brass screws and stainless steel bolts.

To access the electrical equipment, simply unscrew a single screw and rotate the upper segment.

The disconnector will automatically cut power to the lantern's wiring. To replace the lamp, the optic must be lifted.

During maintenance operations, no part or component of the lantern is separated from the structure.

Standard S.A.P. or H.G. wiring with power-factor-corrected Class II BOX.

CUT OFF or FULL CUT OFF reflector plate.

EUROCOMITALIA type antique black paint.

See painting specifications.
