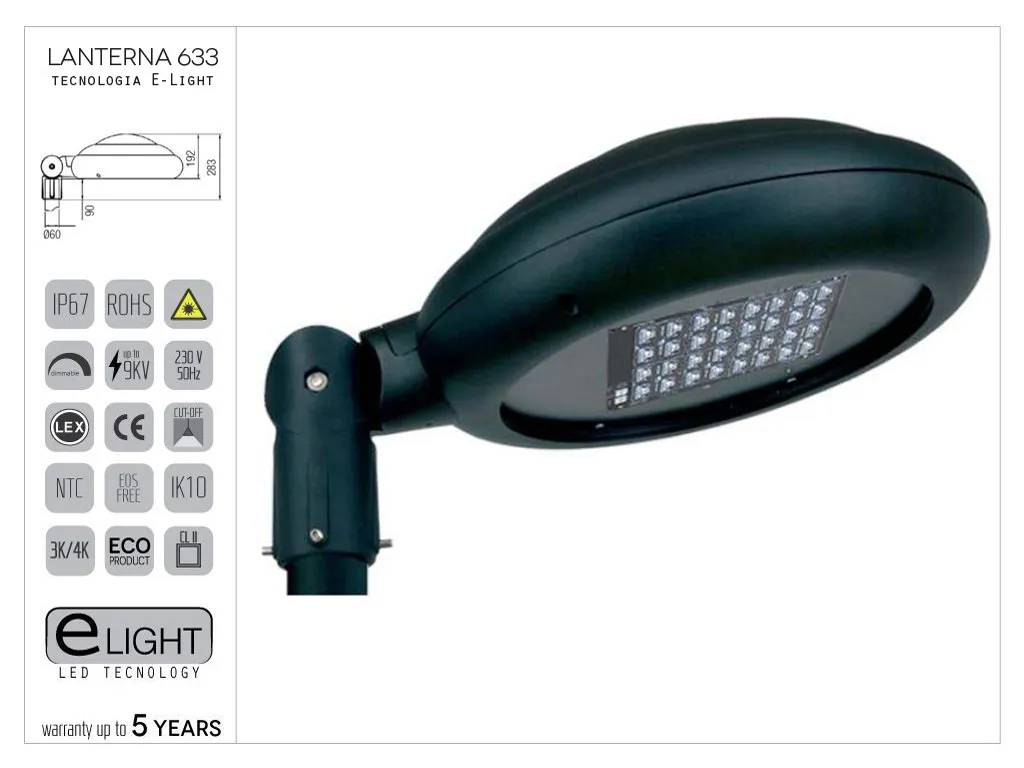

CITY Aluminum Street Light with E-light Technology - All Wattages



Standard protection against atmospheric surges up to 6 kV, extendable to 10 kV.

OT type power driver with dimming and control capabilities as specified in the technical data sheet.



Various options available for power consumption, color temperature, and wiring.



Structure consists of:

Main body with shape, measurements, and moldings as per the attached drawing. Adjustable die-cast aluminum arm; for side-entry (180°) or post-top mounting on Ø60mm poles.

The lower section consists of an aluminum ring onto which the LED engine is mounted.

The ring is hinged to the structure and is secured with a stainless steel screw.

The ring is fitted with a neoprene gasket, ensuring the product has a total protection rating of IP65.



Optics:

Comprised of a single aluminum block that ensures the dissipation of heat emitted by the LED diode.

Optics based on molded LEDiL IP67 lenses, resistant to UV rays and IK10 impacts, with high-precision collimators to concentrate the light beam.

The circuit is coated with a special insulating powder that enhances protection against electrostatic discharges.

The IP67 optics with a watertight gasket are mounted on the heat dissipation structure to protect the LED circuits.

The entire LED engine is fastened to the lower body of the lamp with six M4 stainless steel screws.

This design allows the LED engine to be easily removed for any maintenance operations.

Next to the LED engine, a support for the OT IP66 CL II driver is mounted, also fixed to the structure with stainless steel screws, making the entire assembly easily removable and separate from the LED engine.

All electrical connections are housed around the lower structure, well-insulated, including two connectors: one to disconnect the LED engine from the driver, and one to disconnect the driver from the mains power supply.

Painted in anthracite black or another RAL color upon request.

Measurements, shapes, and moldings are as per the drawing which is an integral part of the project.
