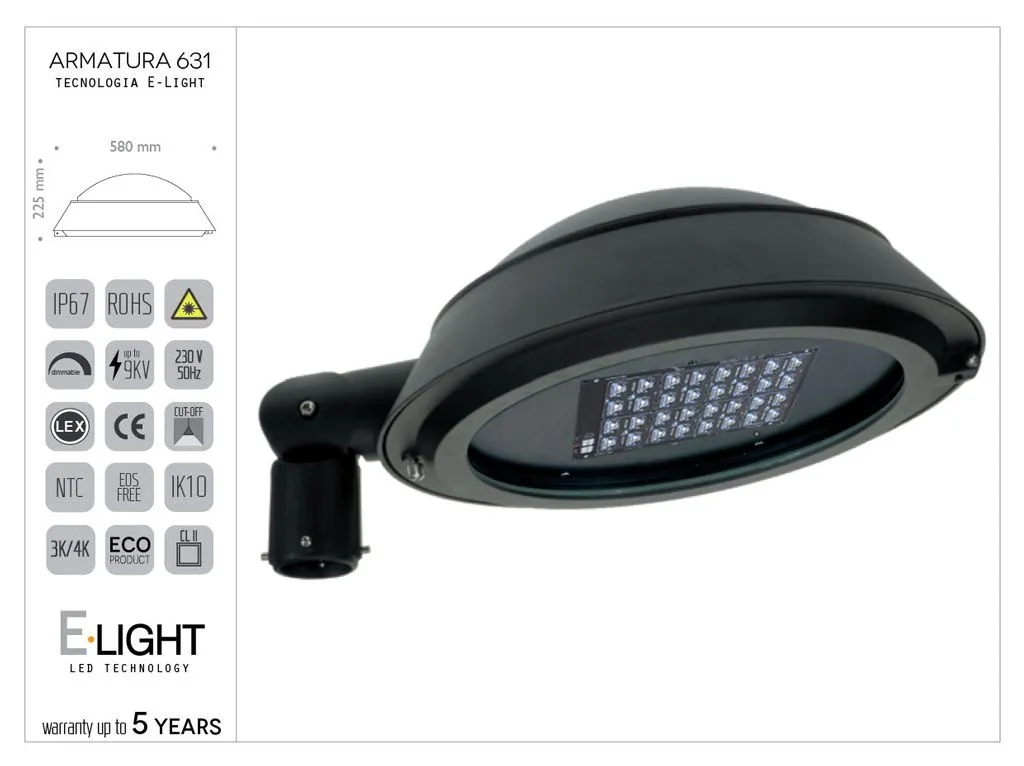

SKY Aluminum Streetlight Fixture with E-Light LED Technology - All Wattages



Standard surge protection up to 6 kV, extendable to 10 kV.

OT type power driver with dimming and control options as per the technical datasheet.



Various power consumptions, color temperatures, and wiring types available.



Structure composed of:

Central body with shape, dimensions, and moldings as shown in the provided drawing. Mounts with a 3/4” threaded pipe, to be bolted to the support structure with a gasket ring for a watertight seal.

The threaded pipe and the bolts at the top of the structure are concealed by an ornamental aluminum bushing. The lower part consists of an aluminum ring on which the LED engine is mounted.

The ring is hinged to the structure and is secured with a stainless steel screw.

The ring is fitted with a neoprene gasket that guarantees the product a total protection rating of IP65.



Optics:

Consists of a single aluminum block that ensures the dissipation of heat emitted by the LED diode.

Optics based on LEDiL IP67 molded lenses, resistant to UV rays and IK10 impacts, with high-precision collimators to concentrate the light beam.

The circuit is coated with a special insulating powder that increases protection against electrostatic discharge.

The IP67 optics are mounted on the heat sink structure with a watertight gasket to protect the LED circuits.

The entire LED engine is fastened to the lower body of the lamp with six M4 stainless steel screws.

This design allows the LED engine to be easily removed for any maintenance operations.

Next to the LED engine, a support for the OT IP66 CL II driver is mounted, also fixed to the structure with stainless steel screws, making it easily removable and separate from the LED engine.

All electrical connections are placed around the lower structure, well-insulated, including two connectors: one to disconnect the LED engine from the driver, and one to disconnect the driver from the mains power.

Painted in anthracite black or other RAL colors upon request.

Dimensions, shapes, and moldings are as per the drawing, which is an integral part of the project.
