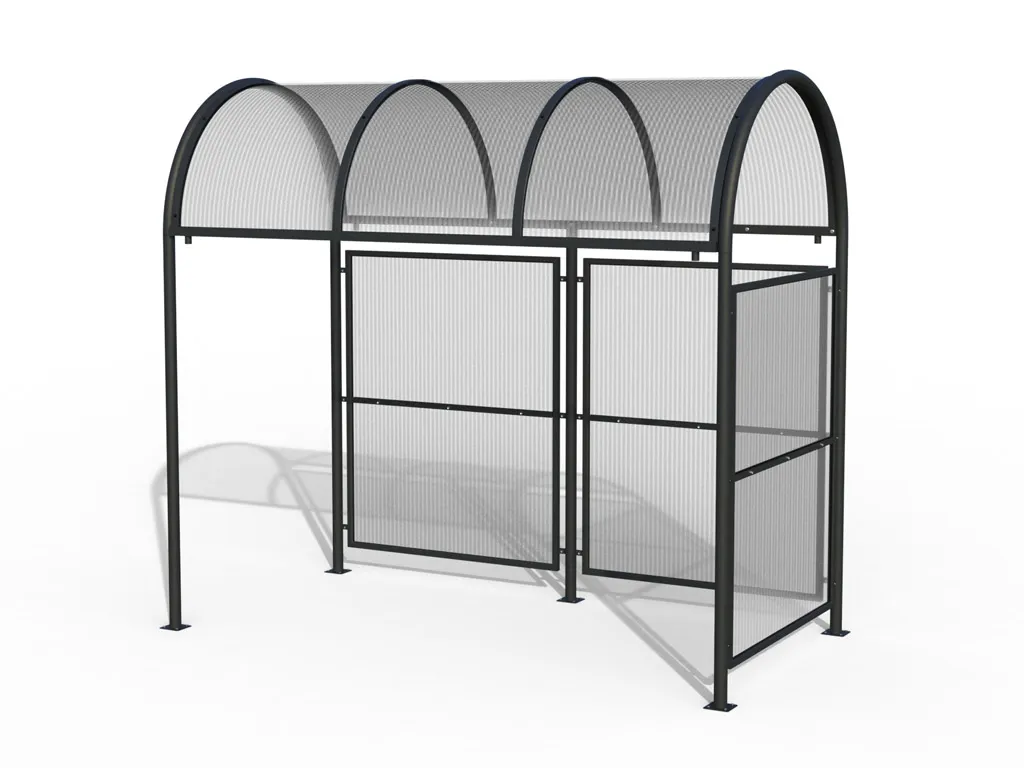

Urban bus shelter for urban furniture model ELI.
Frame consisting of four vertical uprights in galvanized steel round tubes complete with plate, base, galvanized sheet.
Two lateral arches, at the top, in galvanized steel round tubes.
The arches are connected and secured by two currents in galvanized steel round tubes (back and front).
Base wall made of perimeter frame in galvanized steel angular profile with two vertical uprights, on the outside, in rectangular steel tube.
Transparent type alveolar polycarbonate supported by profiles in galvanized steel rectangular tube.
Side walls made of perimeter frame in galvanized steel angular profile.
Acrylic polycarbonate transparent type thickness mm. 10 supported by profiles in galvanized steel rectangular tube.
Roof type cover made of polycarbonate alveolar matt type supported by arches in galvanized steel rectangular tube.
Gutter at the front for collecting and discharging rainwater.
The customer may still require a different finishing, chosen from RAL colors available on our website.
The painting technique used for the galvanized steel structure is made of thermosetting powders with baking. For all details, please download the detailed product details sheet.
Optional addons
ELI-PMMA PMMA for ELI Canopy
ELI-PN-SX Left Side Panel for ELI Canopy
Specifications
| length | 300 cm |
| height | 280 cm |
| Width | 150 cm |
| Material | Acciaio e policarbonato |
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
