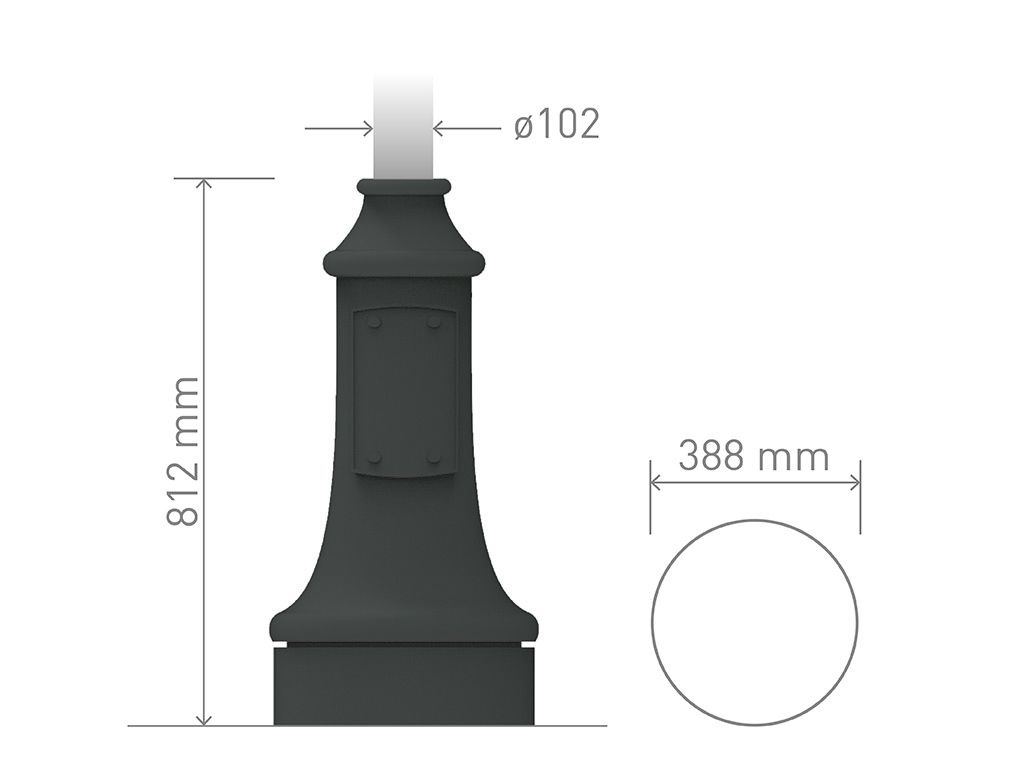

UNI EN 1561 GJL250 cast iron base for steel poles
Height 812 mm
Width 388 mm
Output for 104 mm steel pole.
The base is equipped with a hatch for insertion of a terminal block.
All elements that make up the base are each cast as a single piece.
Standard color is dark gray ( Texturized antracite ) , type EUROCOMITALIA or any other RAL colore requested.
Protection of surfaces: See specifications on the protection of materials.
Installation: See installation specifications.
Specifications
| cable passage | Interno |
| cable passage | Interno |
