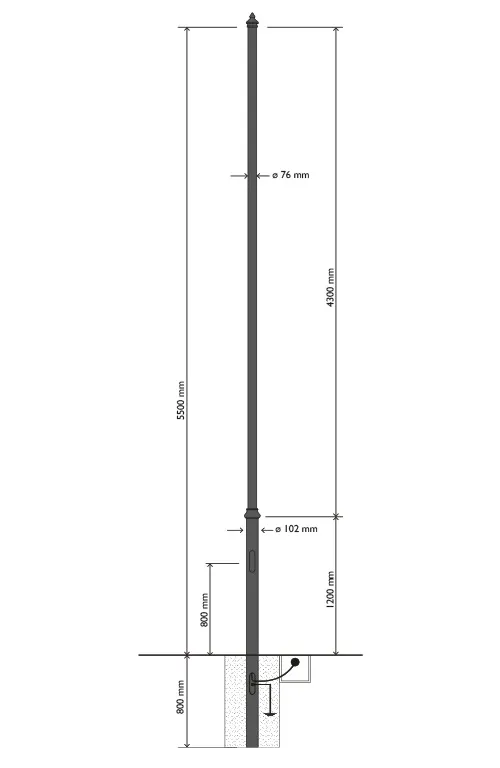

Pole made of cast aluminum and worked steel in a classic style with circular section elements. Total height 5500 mm, of which 800 mm are fixed in the ground.
The shaft is made of steel with a circular section and consists of three sections:
the first, 102 mm in diameter, is 2000 mm high, of which 800 mm are fixed in the ground;
the second section is 4300 mm high and has a diameter of 76 mm.
On the first section, at 800 mm, there is an inspection hatch designed to house an internal terminal block.
The taper is adorned with a cast aluminum collar, fastened to the pole with grub screws.
The pole top, COD TP2, is made from a single aluminum casting and is fastened to the pole with stainless steel grub screws.
The pole is suitable for video surveillance in historic city centers.
Surface protection
Assembly instructions
Screw protection
SCREWS AND BOLTS
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
The shaft is made of steel with a circular section and consists of three sections:
the first, 102 mm in diameter, is 2000 mm high, of which 800 mm are fixed in the ground;
the second section is 4300 mm high and has a diameter of 76 mm.
On the first section, at 800 mm, there is an inspection hatch designed to house an internal terminal block.
The taper is adorned with a cast aluminum collar, fastened to the pole with grub screws.
The pole top, COD TP2, is made from a single aluminum casting and is fastened to the pole with stainless steel grub screws.
The pole is suitable for video surveillance in historic city centers.
All aluminum elements are made from a single casting.
Specifications
| above ground height | 5,5 mt |
| Color | Black |
| In concrete | 800 mm |
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
