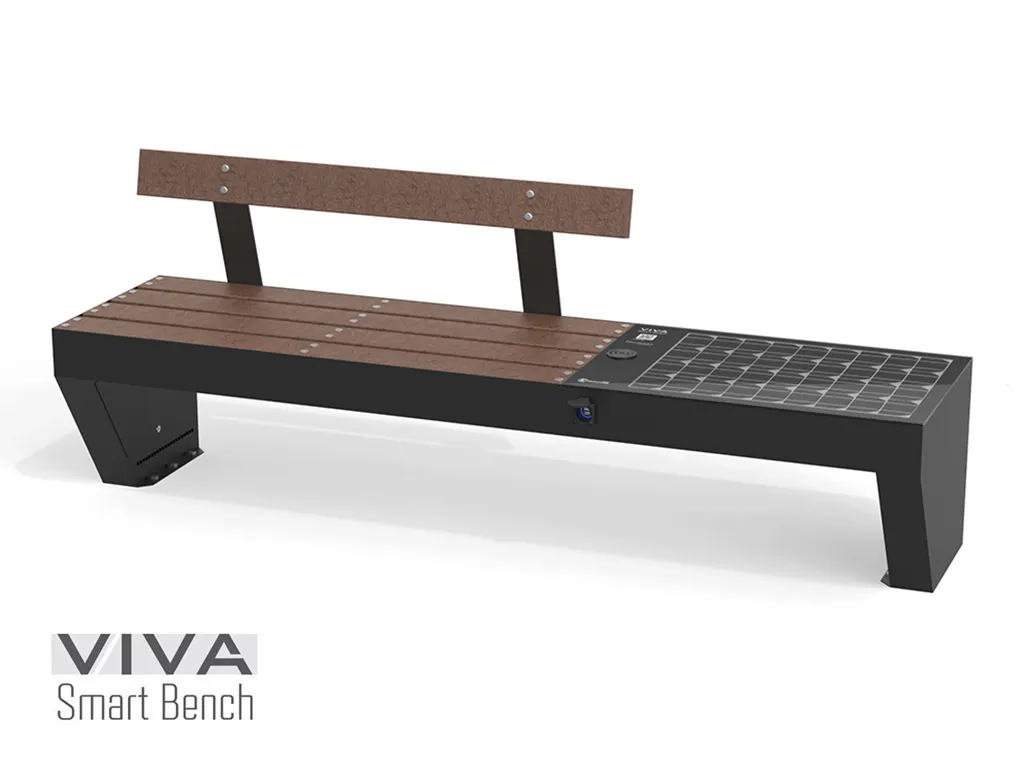

Smart VIVA Solar Energy Bench IOT ready with Intelligent Charging, 2.2 m recycled plastic seat and backrest, WIRELESS USB device charging, LED lighting
code 311301
Category: Urban furniture, Benches, Smart city benches, Smart Benches
color
Description
Specifications
Downloads
Product version
Smart bench - intelligent bench for urban furniture type VIVA for charging devices
General technical features:
No. 2 side supports in sheet metal, thickness 30/10, printed in trapezoidal shape;
Seat and backrest made with STRONGPLAST profiles (recycled plastic) section 120 x 40 mm bolted to the seat and back supports;
SMART charging module equipped with MPPT technology with photovoltaic panel and batteries embedded in the structure of the bench;
Features of the version:
Equipped with USB ports for charging devices up to 2 A and an integrated 20W QI wireless charger in the structure;
LED backlighting system with neutral white color;
Includes local management and control system via WIFI connection or CLOUD via portal;
Temperature, humidity, charge and discharge sensors, weather sensors with automatic standby system in case of prolonged absence of solar irradiation;
Self-management system and error prediction with automatic reports.
Fixing and maintenance:
The trapezoidal feet are designed for anchoring, using an M10 steel bolt.
The surfaces are properly protected through a 5P cycle and powder-coated. See specifications on material protection.
Registered design, registered smart technology.
ZERO WIRE SYSTEM, meaning no need for any type of wiring.
Just place it in a sunny location and the self-powered bench from the solar panel will provide all services (both USB and WIRELESS charging).
The new VIVA™ bench is designed to modernize today’s cities with innovative technologies in the area of control and the use of specific functionalities aimed at meeting the modern needs of citizens.
The new cities are characterized by innovation and targeted services, thanks to its countless technological functions it becomes a place not only for relaxation but also for aggregation where it is possible to conceive a new way of thinking about the city.
We can charge our smart devices thanks to the front USB ports, connect to Wifi, and get real-time information on traffic, CO2 emissions, weather conditions, etc. Communicating has never been so easy!
Ample space for customer customization.
The cross-functional skills of our team, the knowledge of materials and processing technologies allow us to tackle any custom project.
Through the cloud connection, the VIVA PORTAL software manages the network of stations remotely on any device at any time.
Control and verification of the system from a single workstation.
Manage all your stations in real-time simply and efficiently even in multi-user mode.
Control your network of stations and check the monitoring information sent.
Monitoring battery charge, weather info, environmental info, device charge and discharge, error prediction and reports.
Characteristics of the modules:
The magic happens thanks to the modules, the beating heart of the system, allowing you to customize the product according to your needs.
UNIQUE TECHNICAL FEATURES OF THE VERSION:
Total Control: Access via WIFI to interface for viewing real-time data and control.
InfoSensor: Environmental information from sensors such as temperature and humidity, charge and discharge of devices, energy production, instantaneous and long-term consumption, self-check with error prediction and reports.
VivaDirect: Direct access to information and control via WIFI near the station.
VivaPortal: Management and remote control portal in Cloud (requires an internet connection not provided).
Photovoltaic module: Monocrystalline PERC 60W power.
Batteries: AGM type with a capacity of up to 0.72 kWh.
USB charging: 2 ports 5W and 2.2W.
Wireless charging: Power 20W / Efficiency up to 90%.
Cooling system: Air flow: 170 m3/h, Temperature trigger: 38C.
Backlit panel and dimmable cold white LED light.
Optional:
Art. 391381 CO2 pollution sensor.
Art. 391383 GPS position sensor.
Art. 391384 Dimmable RGBW LEDs with scenarios selectable via the system.
Art. 391386 RAL color paints on request.
Art. 391387 Module for installation without doweling.
Art. 391388 Antibacterial UVC LED also used to combat COVID19 infection.
Art. 391398 Anti-vandal presence sensor.
Art. 391399 Customized printing on the smart module.
Art. 391401 Seat heating.
220V Schuko Socket for Smart Benches with Rain Protection
VIVA SMART Wooden Bench Seat
HOTSPOT Module with included Wi-Fi Modem for network connection
20W QI Wireless Charger for VIVA SMART Benches
Basic Control and Sensor Kit for VIVA smart series: Fan, Humidity/Temperature Sensor, and Light Control with Dusk Sensor
Standard USB: Dual USB-A QC3.0 20W Smart Device Charger
20W USB-C Charger: 1x USB-C + Dual USB-A QC3.0 for Smart Devices
Neutral White 4K LED System for VIVA SMART Products
RGBW LED System for VIVA SMART Products
