VIVA E-CYCLE Solar-Powered Smart Bench | IoT Ready with Intelligent Charging, 2.3m Recycled Plastic Seat, WIRELESS & USB Charging, LED Lighting, and Bike/Scooter Charging & Maintenance Station
code 311309
Category: Benches, Smart city benches, Smart Benches, Urban mobility
Description
Specifications
Downloads

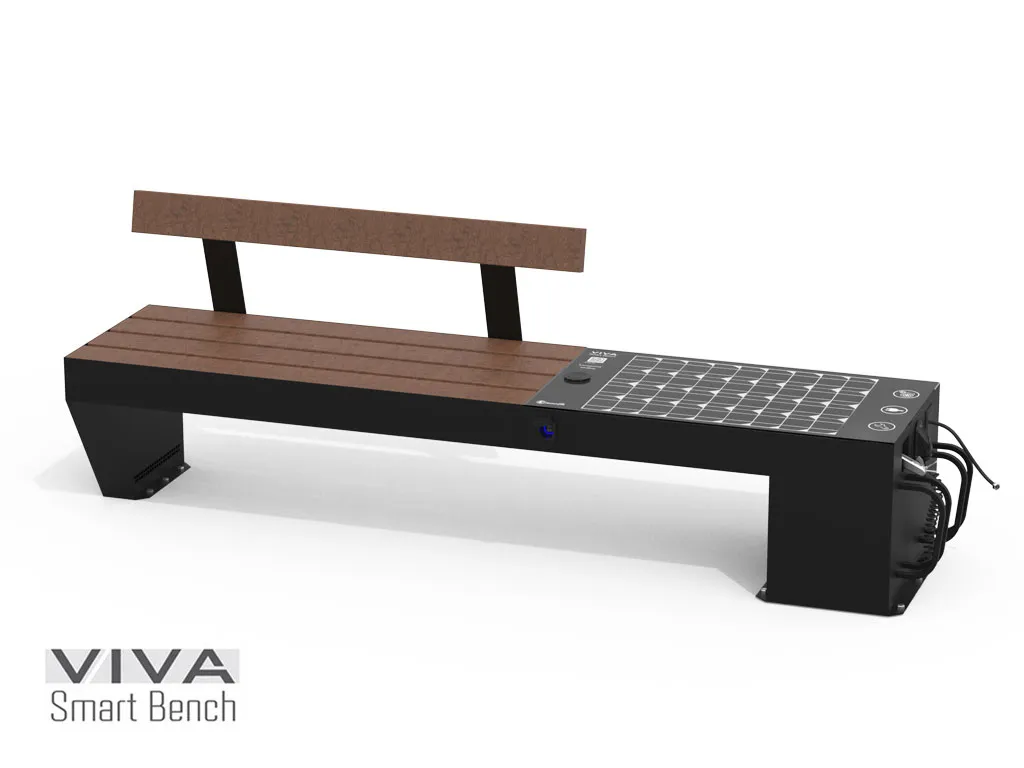

Smart Bench - VIVA E-cycle Intelligent Bench for Urban Furnishing for charging devices, e-bikes, and scooters.
General Technical Specifications
• 2 side supports in 30/10 thickness sheet metal, stamped into a trapezoidal shape;
• Seat and backrest made with STRONGPLAST (recycled plastic) profiles, 120 x 40 mm section, internally milled and reinforced with a 15 x 15 mm steel profile. The profiles are bolted onto the seat and backrest supports;
• SMART charging module equipped with MPPT technology, with a photovoltaic panel and batteries integrated into the bench's structure;
• A mains power connection is required for charging electric scooters.
Unique Features of This Version
• Equipped with USB ports for charging devices up to 2A and a wireless charger built into the structure;
• Features a 48V output for charging electric scooters (a mains power connection is required for scooter charging);
• Neutral white LED backlighting system;
• Includes a local management and control system via WiFi or cloud-based portal with 12 months of support (see support features);
• Sensors for temperature, humidity, device charge/discharge, and weather, with an automatic stand-by system in case of prolonged lack of solar radiation;
• Self-management and error prediction system with automatic reports;
• Repair kit for bikes, scooters, and e-bikes;
• Additional power supply via a high-efficiency Tempering charger, managed by an energy-saving system modulated according to the solar panel's efficiency.
Installation and Maintenance
The trapezoidal feet are designed for anchoring with M10 steel bolts.
The smart module is removable and can be sent for maintenance without needing to remove the entire bench.
The surfaces are duly protected by a 5P cycle and powder-coated. See specifications on material protection.
Registered design, registered smart technology.
ZERO WIRE SYSTEM
Meaning no wiring of any kind is needed.
Just place it in a sunny spot, and the solar-powered bench will provide all its services (both USB and wireless charging, internet connection, LED lighting).
Innovation and Services
The new VIVA™ bench is designed to modernize today's cities with innovative technologies for controlling and using specific features, aimed at meeting the modern needs of citizens.
The new smart cities are defined by innovation and targeted services: thanks to its countless technological functions, it becomes a place not only for relaxation but also for social gathering, where a new way of thinking about the city can be conceived.
We can charge our smart devices thanks to the front USB ports, connect to WiFi, get real-time information on traffic, CO2 emissions, weather conditions, etc. Communicating has never been so simple!
Customization
Ample room for customer customization.
Our team's diverse skills, knowledge of materials, and processing technologies allow us to tackle any custom project.
VIVA PORTAL - Cloud Management
Through the cloud connection, the VIVA PORTAL software manages the network of stations remotely on any device, at any time.
• Control and verify the system from a single location;
• Manage all your stations in real-time, simply and efficiently, even with multiple users;
• Control your network of stations and check the monitoring information sent;
• Monitor battery charge, weather info, environmental info, device charge/discharge, error prediction, and reports.
Module Features
The magic happens thanks to the modules, the beating heart of the system, which allow you to customize the product according to your needs.
Unique Technical Specifications of This Version
• Total Control: WiFi access to an interface for real-time data visualization and control;
• InfoSensor: Environmental information from sensors such as temperature and humidity, device charge/discharge, energy production, instantaneous and long-term consumption, autocheck with error prediction and reports;
• VivaDirect: Direct access to information and control via WiFi near the station;
• VivaPortal: Remote management and control portal in the cloud;
• Photovoltaic Module: 60W Monocrystalline;
• Batteries: AGM type with capacity up to 0.72 kWh;
• USB Charging: 2 ports 5W and 2.2W;
• Wireless Charging: 10W Power / Efficiency up to 80%;
• Cooling System: Air flow: 170 m³/h, Temperature trigger: 38°C;
• Backlit panel and dimmable LED light;
• 48V power supply for charging electric scooters with various connector types.
Optional Add-ons
• Art. 391381: AIR POLLUTION sensor for atmospheric pollution;
• Art. 391383: GPS position sensor;
• Art. 391384: Dimmable RGBW LEDs with selectable scenarios via the system;
• Art. 391386: Custom RAL color painting upon request;
• Art. 391387: Module for installation without anchoring;
• Art. 391388: Antibacterial UVC LED, also used to combat COVID-19 infection;
• Art. 391391: Backup module from the electrical grid;
• Art. 391395: Two-space bike or scooter rack module;
• Art. 391398: Anti-vandalism presence sensor;
• Art. 391399: Custom printing on the Smart module.
Air pollution sensor
HOTSPOT Module with included Wi-Fi Modem for network connection
20W QI Wireless Charger for VIVA SMART Benches
Basic Control and Sensor Kit for VIVA smart series: Fan, Humidity/Temperature Sensor, and Light Control with Dusk Sensor
Standard USB: Dual USB-A QC3.0 20W Smart Device Charger
20W USB-C Charger: 1x USB-C + Dual USB-A QC3.0 for Smart Devices
Neutral White 4K LED System for VIVA SMART Products
RGBW LED System for VIVA SMART Products
