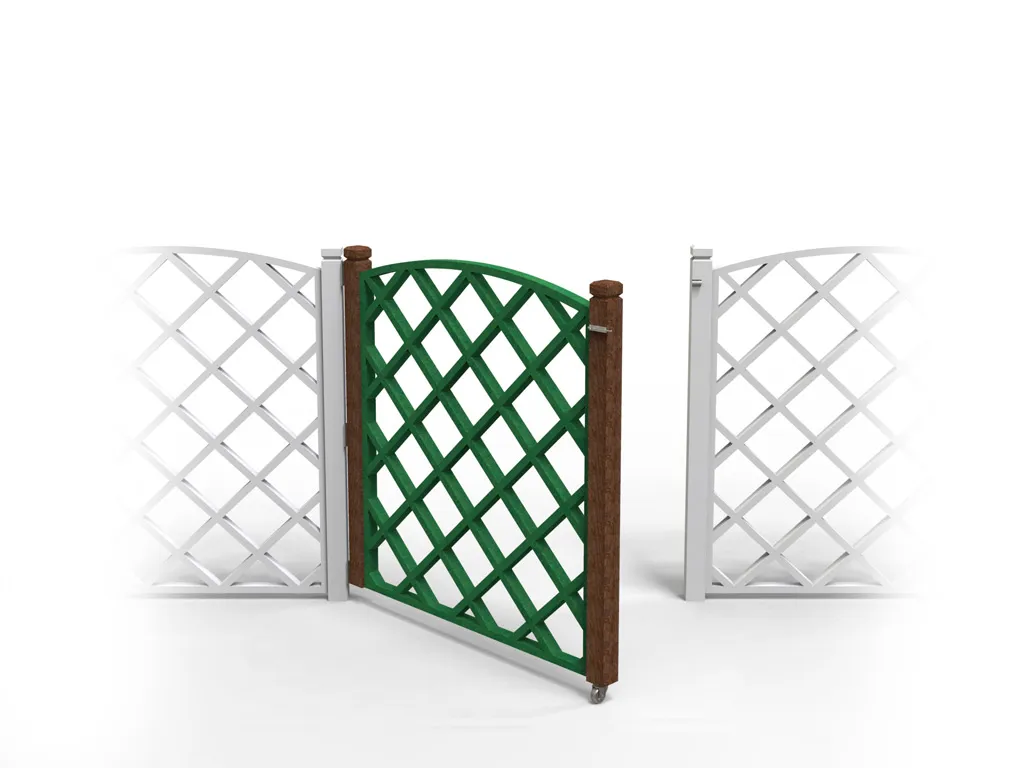

Venice Model Gated Panel for Recycling Areas

Panel with gate and iron frame, ideal for enclosing recycling points and collection areas. Made from STRONGPLAST - Plasmix profiles.
Above-ground height of the panel: 1500 mm.

Features:

• Frame and Gate: The plastic gate is mounted on a sturdy 8 cm square iron frame. The frame is painted to match the colour of the plastic posts.
• Load-bearing Posts: Reinforced posts made of STRONGPLAST - Plasmix, ensuring exceptional stability.
• Central Grid: Features 230 x 230 mm openings, constructed from 50 x 30 mm profiles arranged at a 45° angle.

Each panel is delivered in separate parts: the grid panel needs to be attached to the post using self-tapping screws (not included).
The module is designed for in-ground installation by driving the posts into the soil, but is also available with a flange for bolt-down surface mounting.
An optional module with a built-in planter is also available.
Important:
For enhanced stability, we recommend alternating standard modules with planter modules.
STRONGPLAST - Plasmix is a compound of recycled plastics, making the product 100% eco-friendly with zero environmental impact.
It offers high resistance to weathering and vandalism.
The structure is assembled using stainless steel screws to fasten the plastic profiles.

STRONGPLAST Specifications

GENERAL INFORMATION ON STRONGPLAST MATERIAL
The material colors, including those shown in photos and technical documentation, are purely indicative and depend on the availability of STRONGPLAST profile colors at the time of production.
All steel parts used in STRONGPLAST structures are adequately protected.
All parts are joined by stainless steel screws embedded in the structure.
All STRONGPLAST products, including play equipment and furniture, have no protruding parts, either in plastic or any other material.
STRONGPLAST is maintenance-free, vandal-proof, does not yellow, is weather-resistant, and fire-retardant.
All playground products are certified according to the UNI EN 1176 standard.
Products made of STRONGPLAST are CAM certified (Minimum Environmental Criteria).

Screw protection
SCREWS AND BOLTS

All screws, bolts, and other fastening accessories are generally supplied in stainless steel.

DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
