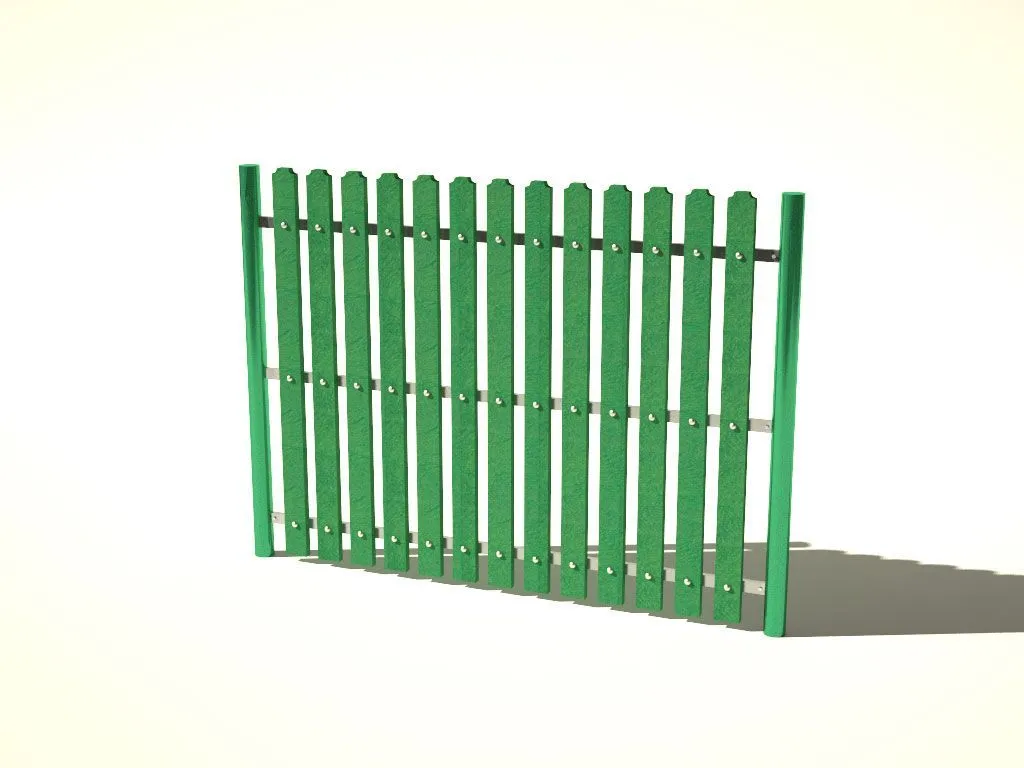

Ideal panel for creating perimeters for recycling and waste collection areas, made with STRONGPLAST - Plasmix profiles.
Above-ground height of the panel is 1500 mm.
It consists of:
- steel support posts, 2000 mm long (500 mm for in-ground installation), with a PVC cap on top;
- a 40 x 20 mm angle iron support crossbar, drilled and ready for bolting on the STRONGPLAST - Plasmix recycled plastic profiles (dimensions 90 x 30 x 1470h mm), which are chamfered at the top.
Each panel is supplied in 2-meter modules (center-to-center), connected by M8 bolts. The module is designed for installation directly into the ground or with a flange for surface mounting.
Optional planter module available (see next page).
Optional gate module available.
Specifications
| height | 1,5 MT |
| In concrete | SI |
| length | 2 MT |
