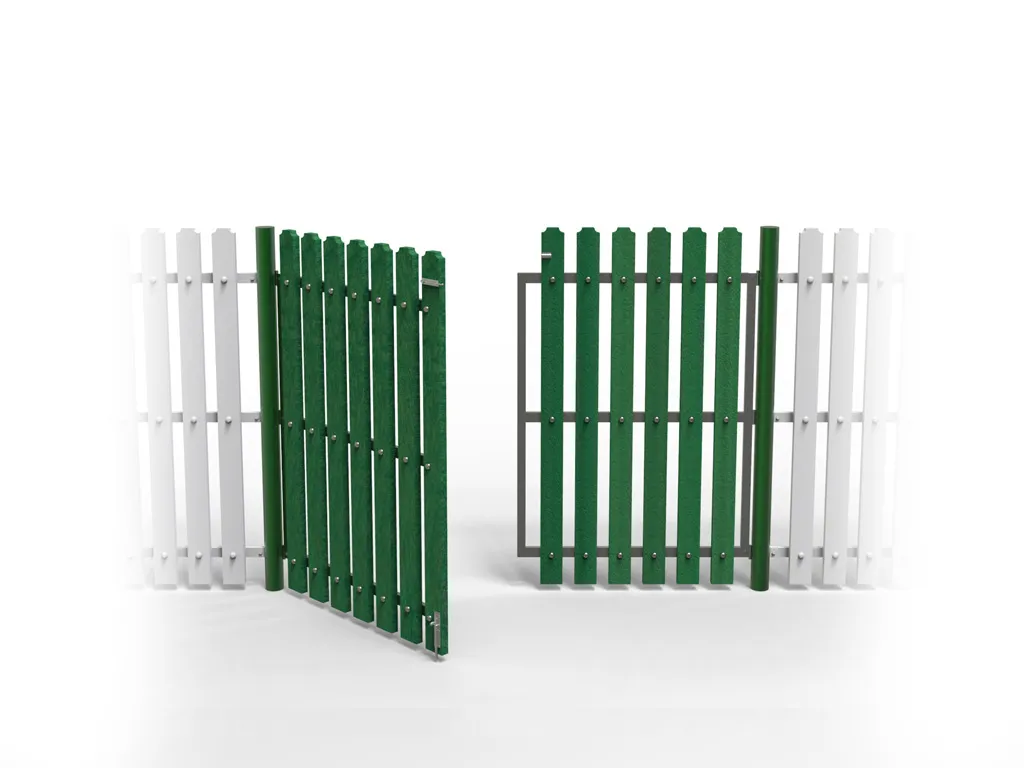

TORINO Model Drive-Through Gate Panel for Recycling Center, 1m + 1m

Name: TORINO Model Drive-Through Gate Panel for Recycling Center, 1m + 1m
Brand: EurocomItalia S.r.l.
SKU: 8025
Availability: InStock

code 8025

Category: Recycling stations

Description

Panel with a gate, ideal for fencing off recycling center areas, made with STRONGPLAST - Plasmix material profiles.
Above-ground panel height: 1500 mm.
It consists of:
- Steel support posts, 2000 mm long (of which 500 mm is for in-ground installation), with a PVC cap on top.
- Support crossbar made of 40 x 20 mm angle iron, drilled and ready for bolting on STRONGPLAST - Plasmix recycled plastic profiles (dimensions 90 x 30 x 1470h mm) with chamfered tops.
Each panel is supplied in 2-meter modules (center-to-center), connected by M8 bolts. The module is designed for in-ground installation or can be fitted with a flange for anchoring.

Specifications

height	1,5 MT
length	2 MT

Material	Strongplast e acciaio
type	Con cancelletto

STRONGPLAST Specifications

GENERAL INFORMATION ON STRONGPLAST MATERIAL
The material colors, including those shown in photos and technical documentation, are purely indicative and depend on the availability of STRONGPLAST profile colors at the time of production.
All steel parts used in STRONGPLAST structures are adequately protected.
All parts are joined by stainless steel screws embedded in the structure.
All STRONGPLAST products, including play equipment and furniture, have no protruding parts, either in plastic or any other material.
STRONGPLAST is maintenance-free, vandal-proof, does not yellow, is weather-resistant, and fire-retardant.
All playground products are certified according to the UNI EN 1176 standard.
Products made of STRONGPLAST are CAM certified (Minimum Environmental Criteria).

Screw protection
SCREWS AND BOLTS

All screws, bolts, and other fastening accessories are generally supplied in stainless steel.

Surface protection

GENERAL INFORMATION ON SURFACE PROTECTION

All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.

Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.

Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.

The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.

Standard finish: antique black, Eurocomitalia type.

Any color from the RAL Classic chart is available upon request.

Detailed technical specifications are available in the dedicated documentation.

DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
