Smart Arc Shelter Classic for Bus Waiting with Electronic Device Charging Powered by Photovoltaics Featuring Three USB Ports and Two Embedded Wireless Chargers

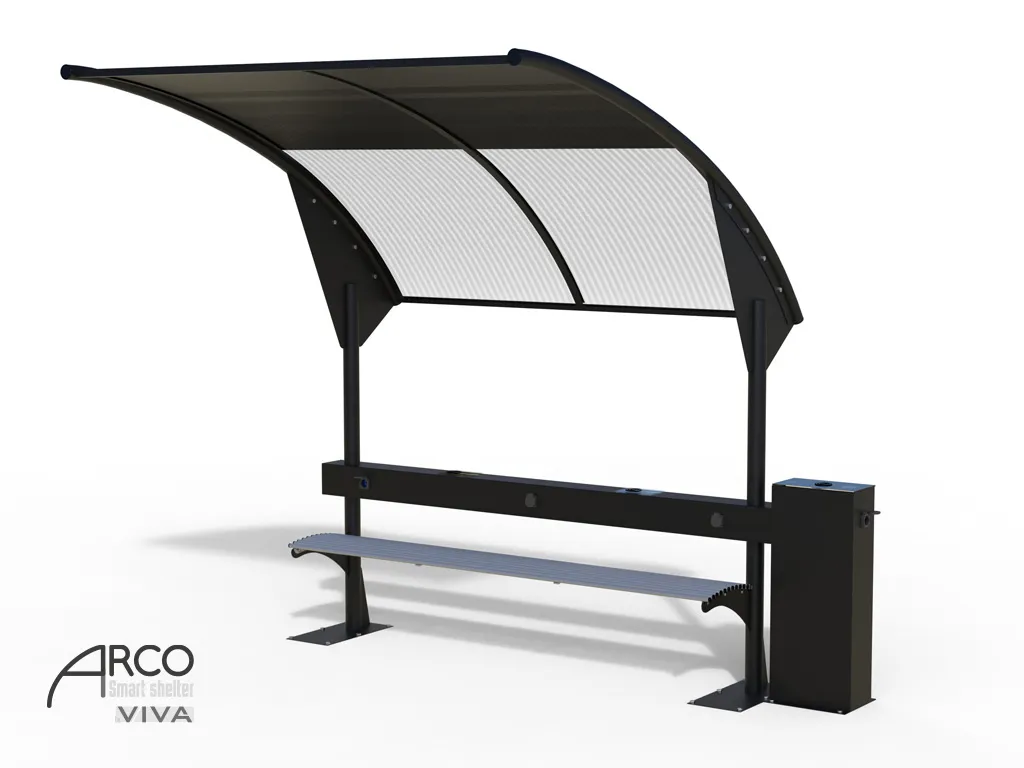

Modern SMART Arc Shelter for bus waiting with bench. Equipped with a charging station for electronic devices powered by photovoltaics, polycarbonate roof, and PMMA.

Structure composed of:
Steel tubes (diameter mm 76 and 60) straight and bent in an arc shape.
Bench supports welded to the structure and seating made of painted steel rods forming a single seat block of 2.2 m in length.
The cover is made from a ribbed double-protected polycarbonate panel, UV-resistant and reinforced by a steel frame at the bottom;
transparent PMMA sheet on top to embed and protect solar panels; at the back of the cover, there is a channel for water drainage.

In the center of the shelter, a PLUG module made of tubular section 150 x 150, equipped with USB ports for charging devices up to 2 A and a wireless charger built into the structure. The central module also serves as a back support.

Version features:
LED backlighting system in cold white color. Protection rating IP65.

Fixing and maintenance:
The posts are designed for anchoring with an M10 steel bolt. The surfaces are properly protected through a 5P cycle and powder-coated. See specifications on material protection. Registered design, registered smart technology.

ZERO WIRE SYSTEM meaning no wiring is required. Just place it in a sunny spot and the solar-powered shelter will provide all services. The new ARCO shelter is designed to modernize today’s cities with innovative technologies for controlling and utilizing specific functionalities aimed at meeting the modern needs of citizens. New cities are characterized by innovation and targeted services; thanks to its countless technological functions, the shelter becomes a place not only for relaxation but also for gathering, where a new way of thinking about the city can be conceived.

Ample space for customer customization. The cross-functional skills of our team, knowledge of materials, and processing technologies allow us to tackle any custom project. This shelter also fits the product characteristics for energy communities, as it not only provides energy for the services it is equipped with, but can also feed excess energy back into the grid.

Unique technical features of the version:
Photovoltaic module: Monocrystalline 200W power.
Batteries: AGM type, capacity 80W.
USB charging: 6 ports 5W and 2.2W.
Wireless charging: 2 units, power 20W / Efficiency up to 80%.

Optional:
Art. 391381 Air Pollution Sensor for environmental monitoring.
Art. 391383 GPS Position Sensor.
Art. 391386 RAL color coatings upon request.
Art. 391388 UVC antibacterial LED, also used to combat COVID-19 infection.
Art. 391398 Anti-vandal presence sensor.
